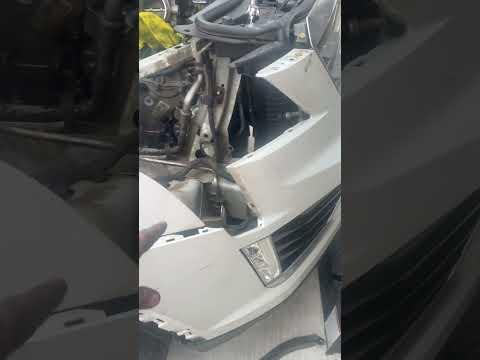

🔧 XT5 - Alternator Replacement

On your XT5, the alternator charges the battery and powers the electrical system while the engine runs. Replacement involves disconnecting the battery, removing the drive belt, unplugging the alternator wiring, and swapping the unit—then reinstalling and verifying charging voltage.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching alternator wiring to prevent short circuits.
• ⚠️ Let the engine cool; you’ll work near hot exhaust components.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Keep fingers clear of the serpentine belt path; spring tension is strong.

Quick questions (answer these and I’ll tailor the exact access steps):

• ➡️ Is your XT5 FWD or AWD?
• ➡️ Does it have Auto Start/Stop (often a second/aux battery)?

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (8mm–18mm)
• Ratchet (3/8")
• Ratchet (1/2")
• Socket extensions (3", 6", 12")
• Universal joint adapter (3/8")
• Wrench set (8mm–18mm)
• Serpentine belt tool (specialty)
• Torque wrench (10–150 ft-lbs)
• Trim clip removal tool
• Flat-blade screwdriver
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Belt tensioner (recommended if worn/noisy) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and remove any loose jewelry or metal watch bands.
• Disconnect the battery: use a 10mm socket to remove the negative cable first, then isolate it so it can’t spring back.
• If equipped with Auto Start/Stop and an auxiliary battery, disconnect the main battery negative first, then disconnect the auxiliary battery negative as well.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm socket to remove the negative battery terminal and tuck it aside.
• If you find a second (aux) battery, use a 10mm socket to disconnect its negative terminal too.
• Tip: Take a photo of battery connections.

Step 2: Remove the engine cover and air inlet ducting

• Pull up to release the engine cover (it’s retained by rubber grommets); if needed, use a flat-blade screwdriver gently at the edge.
• Use an 8mm socket or flat-blade screwdriver to loosen intake hose clamps.
• Use a trim clip removal tool to release any intake duct clips, then lift the ducting out.

Step 3: Create access from above and below

• Raise the front of the vehicle with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield as needed using a socket set (8mm–18mm) and trim clip removal tool.

Step 4: Release serpentine belt tension

• Locate the belt tensioner and install a serpentine belt tool (specialty).
• Rotate the tensioner to relieve tension and slide the belt off the alternator pulley.
• Tip: Sketch the belt routing first.
• Definition: A belt tensioner is a spring-loaded arm that keeps the belt tight automatically.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator control connector by pressing the tab and pulling straight off.
• Remove the protective boot over the main power cable.
• Use the correct size from your socket set (8mm–18mm) to remove the B+ terminal nut, then move the cable aside.
• Tip: Don’t let the cable touch metal.

Step 6: Remove alternator mounting bolts

• Support the alternator by hand while removing bolts.
• Use a ratchet (3/8"), socket extensions (3", 6", 12"), and universal joint adapter (3/8") to access and remove the alternator mounting bolts.
• Lift the alternator out from the top or bottom depending on clearance (this can differ between FWD and AWD).

Step 7: Install the new alternator

• Position the new alternator and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts evenly using a ratchet (3/8"), then final-tighten with a torque wrench (10–150 ft-lbs).
• Torque to OEM specification (I’ll provide the exact Nm/ft-lbs once you reply FWD vs AWD and Start/Stop, because bolt sizes/locations can vary by setup).

Step 8: Reconnect alternator wiring

• Reinstall the main power cable and nut using the correct size from your socket set (8mm–18mm).
• Reinstall the protective boot fully over the B+ stud.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall serpentine belt

• Route the belt according to the under-hood belt routing diagram.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Reassemble intake/splash shields and reconnect the battery

• Reinstall the splash shield using your socket set (8mm–18mm) and trim clip removal tool.
• Reinstall intake ducting and clamps using an 8mm socket or flat-blade screwdriver.
• Reconnect battery negative terminal(s) using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Use a digital multimeter at the battery terminals: expect roughly 13.5–14.8V with the engine running.
• Listen for belt squeal or chirping; if present, re-check belt routing and pulley alignment.
• Recheck for any stored charging system codes if you have a scan tool (optional).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-5.0 hours.

---
