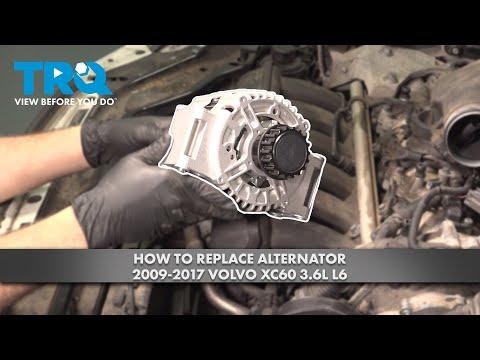

🔧 Alternator - Replacement

The alternator on your XC60 charges the battery and powers the electrical system while the engine runs. Replacement on this vehicle usually means removing the drive belt, unplugging the electrical connections, and swapping the unit from the front of the engine.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery terminal before starting. The alternator cable is always live.
• Let the engine cool fully before working near the belt and pulley area.
• Keep hands, tools, and clothing clear of the serpentine belt path.
• If your XC60 has a battery monitoring system, battery disconnect may clear stored settings and clocks.
• Use jack stands if you need any extra access from below. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 13mm socket
• 14mm socket
• 15mm socket
• 16mm socket
• Ratchet
• Breaker bar
• Serpentine belt tool (specialty)
• Torque wrench
• Trim clip tool
• Flat blade screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set
• Belt tensioner bolt or fastener kit - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and remove the key/fob from the vehicle.
• Disconnect the negative battery cable with a 10mm wrench.
• If the undertray blocks access, raise the front safely and support it with jack stands.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm wrench to remove the negative battery cable.
• Move the cable aside so it cannot spring back and touch the post.

Step 2: Remove access covers

• Use a trim clip tool and flat blade screwdriver to remove the upper engine covers or intake pieces that block access.
• If the lower splash shield blocks the belt area, raise the front and remove it with the correct socket and ratchet.

Step 3: Release belt tension

• Use a serpentine belt tool (specialty) or breaker bar on the tensioner.
• Rotate the tensioner in the direction that unloads the belt, then slip the belt off the alternator pulley.
• Remove the belt completely if it is being replaced.

Step 4: Disconnect alternator wiring

• Use a 10mm wrench or 13mm socket to remove the main charging cable nut.
• Pull off the electrical connector by pressing the lock tab first.
• Move the wiring harness aside so it cannot snag during removal.

Step 5: Remove the alternator

• Use a 14mm socket and 16mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the last bolt.
• Work the alternator out through the top or wheel well opening, depending on clearance.

Step 6: Install the new alternator

• Set the new alternator in place and start all bolts by hand.
• Use a torque wrench to tighten the mounting bolts to 45 Nm (33 ft-lbs).
• Reconnect the electrical connector until it clicks.
• Install the charging cable and tighten the nut to 10 Nm (89 in-lbs).

Step 7: Reinstall the serpentine belt

• Use the belt routing diagram or the photo you took earlier.
• Rotate the tensioner again with the serpentine belt tool (specialty) and slip the belt over the alternator pulley last.
• Make sure the belt is seated in every pulley groove correctly.

Step 8: Reassemble everything

• Reinstall any covers, splash shields, or intake pieces using the matching socket or trim clip tool.
• Reconnect the negative battery cable with a 10mm wrench.

Step 9: Verify charging system operation

• Start the engine and listen for belt squeal or pulley noise.
• Check that the battery warning light goes out.
• Use a multimeter at the battery terminals if available; charging voltage should typically be around 13.5-14.7 volts.

---

✅ After Repair

• Verify all warning lights stay off after a short drive.
• Check belt tracking once the engine is running.
• Inspect around the alternator for loose wiring or rubbing.
• If the battery was weak before repair, charge-test it to make sure it recovered.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
