🔧 Alternator - Replacement

The alternator charges the battery and powers the truck while the engine runs. If the battery light is on, voltage is low, or the alternator is noisy, replacing it can restore charging output and prevent a no-start.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before touching the alternator. This prevents shorts and sparks.
• The serpentine belt is under spring tension. Keep fingers clear when releasing the tensioner.
• Let the engine cool before starting. The alternator sits near hot engine components.
• Use jack stands if you need under-truck access, and never rely on a jack alone.
• Do not let tools touch the alternator B+ terminal and ground at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench
• Serpentine belt tool (specialty)
• Trim clip tool
• Flat-blade screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Drive belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Open the hood and disconnect the negative battery cable using a 10mm wrench.
• If the engine cover is installed, remove it first.
• Take a photo of the belt routing before removing the belt. It helps a lot later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery and remove engine cover

• Use a 10mm wrench to disconnect the negative battery cable.
• If equipped, lift off the engine cover by hand.
• Wait a few minutes before touching any charging system wiring.

Step 2: Remove intake ducting for access

• Use a flat-blade screwdriver and 10mm socket to loosen the air intake clamp and remove any intake ducting blocking access to the alternator.
• Move the duct aside so the belt and alternator are easy to reach.

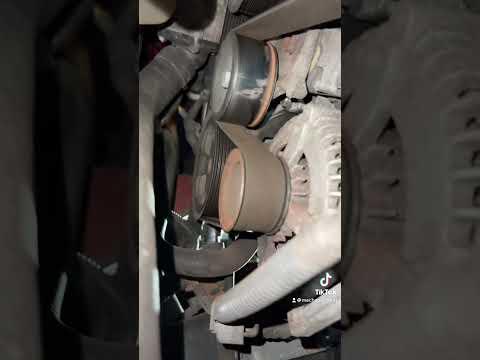

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (specialty) or a long 14mm socket on the belt tensioner to rotate the tensioner clockwise.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the belt from the rest of the pulleys if you are replacing it.

Step 4: Unplug the alternator wiring

• Use a flat-blade screwdriver to release the wiring connector lock, then unplug the small connector from the alternator.
• Use a 10mm socket to remove the nut from the main battery cable at the alternator B+ terminal.
• Move the cable aside so it cannot touch metal.
• Torque on reassembly: 8.5 Nm (75 in-lbs) for the alternator terminal nut.

Step 5: Remove the alternator mounting bolts

• Use a 14mm socket and 3/8-inch drive ratchet to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the last bolt.
• Lift the alternator out from the engine bay.
• Torque on reassembly: 21 Nm (15 ft-lbs) for the alternator mounting bolts.

Step 6: Install the new alternator

• Set the new alternator in place and start all mounting bolts by hand.
• Use the 14mm socket to snug the bolts evenly.
• Tighten the bolts to 21 Nm (15 ft-lbs).
• Reconnect the main charging cable and tighten the nut to 8.5 Nm (75 in-lbs) with a 10mm socket.
• Plug in the alternator connector until it clicks.

Step 7: Reinstall the serpentine belt

• Use the serpentine belt tool (specialty) or 14mm socket to rotate the tensioner again.
• Route the belt exactly as shown on your photo or under-hood belt diagram.
• Make sure every rib sits fully in every pulley groove.
• Release the tensioner slowly and confirm the belt is seated correctly.
• One misrouted rib can shred the belt.

Step 8: Reinstall intake parts and battery cable

• Reinstall any intake ducting removed earlier using the 10mm socket and screwdriver.
• Reconnect the negative battery cable with a 10mm wrench.
• Reinstall the engine cover if equipped.

---

✅ After Repair

• Start the engine and watch the battery warning light. It should turn off.
• Listen for belt squeal, grinding, or clicking.
• Check that the belt runs centered on every pulley.
• Use a voltmeter at the battery. Charging voltage should usually be around 13.5-14.8 volts with the engine running.
• If the battery was weak, charge it fully before judging the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
