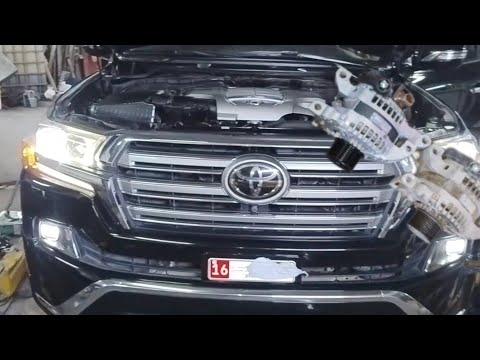

🔧 Alternator - Replacement

The alternator charges the battery and powers the electrical system while the engine is running. If it fails, you may get a battery warning light, dim lights, slow cranking, or a dead battery. This job involves removing the drive belt, electrical connectors, and the alternator assembly from the front of the engine.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This prevents short circuits and accidental engine cranking.
• The engine bay can be hot. Let the engine cool before working.
• Keep hands clear of the belt path and fan area.
• If the battery is weak or old, test it after the repair. A bad battery can damage a new alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Long breaker bar
• Torque wrench
• Serpentine belt tool (specialty)
• Flat-blade trim tool
• Safety glasses
• Mechanic gloves
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Disconnect the negative battery cable with a 10mm socket.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable from the battery terminal.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Remove the engine cover and intake ducting

• Remove the engine cover by lifting it straight up.
• Use a flat-blade trim tool and 10mm socket to remove any intake duct clips or clamps that block access to the alternator.

Step 3: Release the serpentine belt

• Locate the belt tensioner at the front of the engine.
• Use a serpentine belt tool (specialty) or breaker bar to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley and slowly release the tensioner.
• Do not let the tensioner snap back.

Step 4: Disconnect the alternator wiring

• Use a 10mm socket to remove the main power cable nut from the alternator terminal.
• Unplug the alternator connector by pressing the lock tab and pulling it straight off.
• Cover the power wire end so it cannot touch metal.

Step 5: Remove the alternator mounting bolts

• Use a 12mm socket and 14mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Lift the alternator out of the engine bay.
• Torque on installation: Alternator mounting bolts to 39 Nm (29 ft-lbs).

Step 6: Install the new alternator

• Set the new alternator in position and start all bolts by hand.
• Use a 12mm socket and 14mm socket to tighten the mounting bolts evenly.
• Torque on installation: Main alternator terminal nut to 9 Nm (80 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 7: Reinstall the serpentine belt

• Use the serpentine belt tool (specialty) or breaker bar to rotate the tensioner again.
• Route the belt over the alternator pulley and make sure it sits in every pulley groove correctly.
• Slowly release the tensioner.
• Double-check belt alignment before starting.

Step 8: Reassemble and reconnect power

• Reinstall any intake ducting or clips using the 10mm socket and trim tool.
• Reinstall the engine cover.
• Reconnect the negative battery cable with a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery warning light is off.
• Listen for belt squeal or pulley noise.
• Check that headlights and cabin electronics work normally.
• Use a multimeter if available. Charging voltage should typically be around 13.5-14.7 volts with the engine running.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,350 (parts + labor)

DIY Cost: $320-$650 (parts only)

You Save: $500-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
