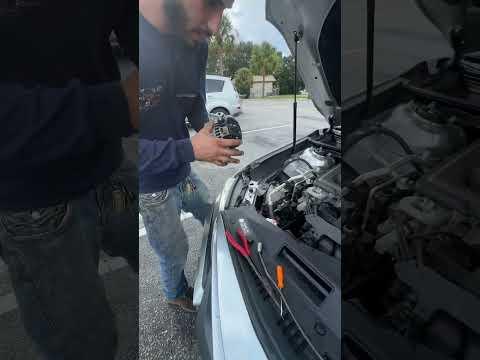

🔧 Camry - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt from the alternator pulley, swapping the alternator, then reinstalling everything and verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short circuit at the alternator’s main power wire.
• ⚠️ Let the engine cool; the radiator fan can turn on unexpectedly on modern cars.
• ⚠️ Keep tools away from the alternator B+ terminal (main power stud) unless the battery is disconnected.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3" socket extension
• 6" socket extension
• Torque wrench (10–100 ft-lbs range)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Small wire brush
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)
• Battery terminal anti-corrosion pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the key/fob from the vehicle area.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and tuck it aside so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct for working room

• Loosen the hose clamp(s) using a flat-blade screwdriver (or 10mm socket, depending on clamp style).
• Unclip/remove the intake duct and set it aside so you can reach the belt and alternator more easily.

Step 2: Relieve belt tension and slip the belt off the alternator

• Place a 19mm socket on the serpentine belt tensioner bolt and use a breaker bar to rotate the tensioner to relieve belt tension.
• Slide the belt off the alternator pulley, then slowly release the tensioner back into place.
• Keep fingers clear of the tensioner spring.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator control connector by pressing the tab and pulling it straight off (use needle-nose pliers gently if it’s stubborn).
• Remove the rubber boot from the alternator B+ terminal, then remove the nut with a 10mm socket and lift the cable off the stud.
• Clean the cable eyelet lightly with a small wire brush if it’s corroded.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand so it doesn’t drop when bolts come out.
• Remove the alternator mounting bolts using a 14mm socket with a 6" socket extension as needed.
• Lift the alternator out of the engine bay.

Step 5: Install the new alternator

• Set the new alternator into position and start the mounting bolts by hand (this prevents cross-threading).
• Tighten the mounting bolts using a 14mm socket, then finish with a torque wrench.
• Torque to 40 Nm (30 ft-lbs) for the alternator mounting bolts.
• If a bolt feels “wrong,” stop and re-thread by hand.

Step 6: Reconnect the alternator wiring

• Install the main power cable onto the B+ stud and tighten the nut using a 10mm socket.
• Torque to 9 Nm (80 in-lbs) for the B+ terminal nut.
• Reinstall the rubber boot over the B+ terminal.
• Plug the alternator connector back in until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (use your photo as a guide).
• Rotate the tensioner again with a 19mm socket and breaker bar, slip the belt over the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 8: Reinstall the intake duct and reconnect the battery

• Reinstall the intake duct and tighten clamps using a flat-blade screwdriver (or 10mm socket).
• Reconnect the negative (-) battery terminal using a 10mm socket.
• Torque to 5 Nm (44 in-lbs) for the battery terminal clamp bolt (snug, not crushed).

Assumption: OEM-style alternator and factory fasteners; if your replacement uses different hardware, torque may differ.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping; shut off immediately if you hear loud noise.
• Use a digital multimeter across the battery terminals:
  • Engine off: typically ~12.4–12.7V for a healthy battery.
  • Engine running: typically ~13.5–14.8V if the alternator is charging.
• Check that the charge warning light on the dash is off.
• Recheck the belt alignment after a short 5–10 minute test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
