🔧 4Runner - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it means removing the drive belt, unplugging the alternator wiring, unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock 4.0L layout; torque specs can vary by bolt location—verify with OEM data if available.

---

⚠️ Safety & Precautions

• 🧯 Disconnect the battery negative cable before touching alternator wiring.
• 🧤 Keep hands and tools clear of the fan, pulleys, and belt paths.
• 🔥 Work on a cool engine to avoid burns on the radiator and exhaust parts.
• 🛑 Support the vehicle with jack stands if you go underneath; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" extension set
• Breaker bar (3/8" or 1/2")
• Serpentine belt tool with 14mm socket
• Torque wrench (10–150 ft-lbs)
• Flat trim tool
• Needle-nose pliers
• Multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (remanufactured or new) - Qty: 1
• Serpentine drive belt - Qty: 1
• Dielectric grease (electrical connector grease) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any jewelry (rings/bracelets can short power).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.
• Tip: take a photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake snorkel (if equipped)

• Pull up to remove the plastic engine cover (it’s held by grommets).
• Use a flat trim tool to pop any plastic clips on the intake snorkel.
• Use a 10mm socket to loosen hose clamps and remove the snorkel/ducting as needed for access.

Step 2: Raise the front (only if you need more access)

• Place wheel chocks behind the rear wheels.
• Lift with a floor jack (rated 3-ton minimum) and set securely on jack stands (rated 3-ton minimum).

Step 3: Release belt tension and remove the serpentine belt from the alternator pulley

• Use a serpentine belt tool with 14mm socket on the belt tensioner.
• Rotate the tensioner to relieve tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.
• Tip: don’t let the tensioner snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab and pulling straight out (use needle-nose pliers gently only if needed).
• Remove the protective rubber boot over the main power stud (B+).
• Use a 10mm socket to remove the B+ nut, then remove the cable from the stud.
• Apply a tiny amount of dielectric grease to the connector seal during reassembly.

Step 5: Remove the alternator mounting bolts

• Locate the alternator mounting bolts (typically 14mm heads).
• Use a 14mm socket with a 3/8" ratchet and extensions to remove the upper and lower mounting bolts.
• If a bolt is tight, switch to a breaker bar to crack it loose.
• Support the alternator with one hand as the last bolt comes out.
• Torque on install (common range): Torque to 35–55 Nm (26–41 ft-lbs)

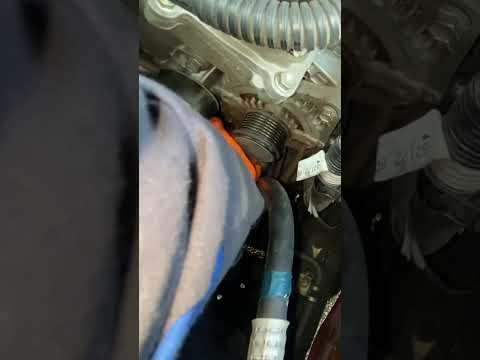

Step 6: Remove the alternator from the engine bay

• Wiggle the alternator out carefully; you may need to rotate it to clear hoses/brackets.
• Use a work light to watch for any wiring harnesses you could snag.

Step 7: Install the new alternator

• Set the new alternator into position and hand-start the mounting bolts to avoid cross-threading.
• Use a 14mm socket to snug the bolts evenly, then finish with a torque wrench.
• Torque on install (common range): Torque to 35–55 Nm (26–41 ft-lbs)

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the stud and start the nut by hand.
• Use a 10mm socket to tighten the B+ nut.
• Torque on install (common range): Torque to 8–12 Nm (71–106 in-lbs)
• Reinstall the rubber boot over the stud.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to the under-hood routing diagram (or your photo).
• Use the serpentine belt tool with 14mm socket to rotate the tensioner and slip the belt onto the alternator pulley last.
• Double-check the belt ribs are fully seated in every pulley groove.

Step 10: Reassemble removed intake/cover and reconnect the battery

• Reinstall intake snorkel/ducting using the 10mm socket and any clips (use flat trim tool as needed).
• Reinstall the engine cover by pressing it into the grommets.
• Reconnect the battery negative terminal using a 10mm socket.
• Torque on install (common range): Torque to 5–7 Nm (44–62 in-lbs)

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping; shut off immediately if you hear it.
• Use a multimeter at the battery terminals: engine running should typically show about 13.8–14.5V.
• Check that the battery/charging warning light is off.
• Recheck the belt seating after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$500 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
