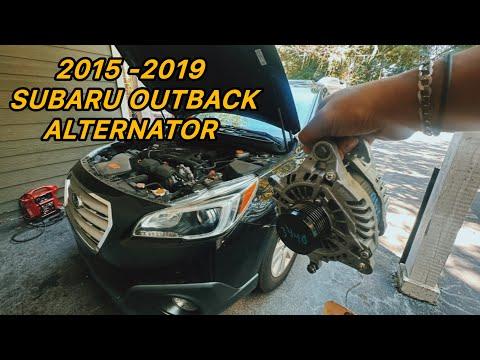

🔧 Outback - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it on your Outback is a top-access job, but you’ll be working near the belt and the battery, so take your time and keep things organized.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent short circuits.
• ⚠️ Keep fingers/clothing away from the serpentine belt and pulleys.
• ⚠️ Let the engine cool; the radiator and exhaust area can burn you.
• ⚠️ Never pry on or short the alternator B+ terminal (main power stud).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" extension set (3" and 6")
• Torque wrench (10–80 ft-lbs range)
• Flat trim tool
• Serpentine belt tool (specialty)
• Digital multimeter
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry (rings/watches).
• Disconnect the battery: use a 10mm socket to remove the negative (–) terminal first, then isolate it so it can’t spring back.
• Tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper air ducting for access

• Use a flat trim tool to release any plastic clips on the intake snorkel/duct.
• Use a 10mm socket to loosen any duct clamps, then lift the ducting out of the way.
• Tip: Put clips/bolts in a cup.

Step 2: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded arm). A spring-loaded tensioner is an automatic device that keeps belt tension without manual adjustment.
• Place a 14mm socket on the tensioner pulley bolt (or use a serpentine belt tool (specialty)).
• Rotate the tensioner smoothly to relieve tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator connector: press the tab and pull straight out (no yanking on wires).
• Remove the rubber boot over the B+ terminal (main power stud).
• Use a 12mm socket to remove the B+ terminal nut and lift the cable off.
• Reinstall the nut a few turns on the stud so it doesn’t get lost.

Step 4: Remove the alternator mounting bolts

• Use a 12mm socket and 3/8" ratchet with a 3/8" extension set (3" and 6") to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out (it’s heavier than it looks).
• Lift the alternator up and out of the engine bay.

Step 5: Install the new alternator

• Set the new alternator into position and start the mounting bolts by hand to avoid cross-threading.
• Use a 12mm socket to snug the bolts evenly.
• Final tighten with a torque wrench (10–80 ft-lbs range): Torque to 35 Nm (26 ft-lbs).
• Tip: Hand-start every bolt first.

Step 6: Reconnect alternator wiring

• Install the B+ cable on the stud and use a 12mm socket to tighten the nut: Torque to 13 Nm (10 ft-lbs).
• Apply a light smear of dielectric grease inside the connector seal (dielectric grease helps prevent corrosion; it does not improve electrical contact).
• Plug the alternator connector back in until it clicks.
• Reinstall the rubber boot over the B+ terminal.

Step 7: Reinstall the belt

• Route the belt using your photo reference. Make sure it sits fully in every pulley groove.
• Use a 14mm socket (or serpentine belt tool (specialty)) to rotate the tensioner and slip the belt over the alternator pulley.
• Slowly release the tensioner and re-check belt alignment on all pulleys.

Step 8: Reinstall the air ducting

• Reinstall the intake snorkel/ducting.
• Use a 10mm socket to tighten clamps/bolts snugly (do not overtighten plastic).
• Reinstall any clips using the flat trim tool as needed.

Step 9: Reconnect the battery

• Use a 10mm socket to reconnect the battery negative (–) terminal and tighten securely.

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly with no squeal or wobble.
• Use a digital multimeter at the battery terminals: engine running should typically read about 13.8–14.7 volts.
• Turn on headlights + rear defroster and verify voltage stays stable (it may dip briefly, then recover).
• Recheck for any warning lights, burning smell, or loose wiring near the belt.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
