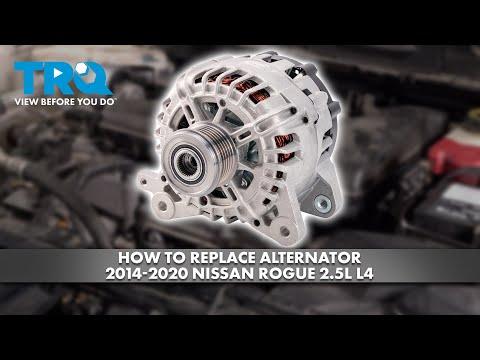

🔧 Rogue - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it on your Rogue involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumes OEM alternator location on the 2.5L; some bolt heads/sizes may vary slightly.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator main power stud.
• ⚠️ Let the engine cool; the radiator fan can turn on unexpectedly on modern vehicles.
• ⚠️ Support the vehicle with jack stands if you work through the wheel well; never rely on a floor jack alone.
• ⚠️ Keep fingers/clothing away from the belt path when checking operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm wrench
• 12mm wrench
• 14mm wrench
• Serpentine belt tool (specialty)
• Flat trim tool
• Phillips screwdriver
• Torque wrench (10–80 Nm range)
• Digital multimeter
• Small pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• If you need more access from below, lift the front with a floor jack and support it on jack stands at the proper jack points.
• A serpentine belt tool is a long handled wrench made to rotate the belt tensioner safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the battery.
• Use a 10mm wrench to loosen the negative (–) battery terminal and remove it.
• Tuck the cable aside so it cannot spring back onto the post.

Step 2: Remove the upper intake ducting (for working room)

• Use a Phillips screwdriver to loosen the intake hose clamps.
• Release any clips with a flat trim tool, then lift the ducting out.
• Take a quick photo for reassembly.

Step 3: Relieve serpentine belt tension

• Locate the belt tensioner at the front of the engine.
• Install the serpentine belt tool (specialty) onto the tensioner hex (commonly 14mm socket also fits).
• Rotate the tensioner to release tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to its resting position.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab; use a small pick tool gently if the tab is stubborn.
• Remove the rubber boot on the main power stud.
• Use a 10mm socket (sometimes 12mm socket) to remove the nut, then lift off the power cable.
• Torque to 9 Nm (80 in-lb) when reinstalling the main power stud nut.

Step 5: Unbolt and remove the alternator

• Locate the alternator mounting bolts (typically two main bolts plus an upper bolt, depending on bracket style).
• Use a 12mm socket and 14mm socket with a 3/8" drive ratchet and 3/8" drive extensions to remove the mounting bolts.
• Wiggle the alternator free and lift it out from the top. If it’s tight, gently rock it—do not pry hard on aluminum brackets.
• Torque to 44 Nm (32 ft-lb) for alternator mounting bolts during reassembly.

Step 6: Install the new alternator

• Set the new alternator into position and hand-thread the bolts to avoid cross-threading.
• Use a 12mm socket and 14mm socket to snug bolts evenly.
• Finish tightening with a torque wrench (10–80 Nm range): Torque to 44 Nm (32 ft-lb).

Step 7: Reconnect alternator wiring

• Install the main power cable on the stud and start the nut by hand.
• Use a 10mm socket (or 12mm socket if equipped) and then a torque wrench: Torque to 9 Nm (80 in-lb).
• Reinstall the rubber boot fully over the stud.
• Plug in the alternator connector until it clicks; add a thin film of dielectric grease to the seal if desired.

Step 8: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (follow the under-hood belt routing sticker).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the alternator pulley.
• Visually confirm the belt is seated in every pulley groove.

Step 9: Reinstall intake ducting and reconnect battery

• Reinstall the intake ducting and tighten clamps with a Phillips screwdriver.
• Reconnect the negative (–) battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm the charging light is OFF on the dash.
• Use a digital multimeter at the battery terminals: engine running should typically read about 13.8–14.7V.
• Listen for belt squeal and watch the belt for 30 seconds to ensure it tracks straight.
• Recheck that the alternator power stud boot is fully seated (prevents accidental shorts).

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹9,000-₹22,000 (parts only)

You Save: ₹9,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
