🔧 Outlander - Alternator Replacement

The alternator keeps your A4?—no—your Outlander’s battery charged and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt (the “serpentine belt” that spins engine accessories), unbolting the alternator, and reinstalling everything with correct torque.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Torque specs listed are typical for your Outlander; verify if you have OEM specs.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator B+ terminal.
• ⚠️ Let the engine cool; you’ll work near hot parts.
• ⚠️ Support the Outlander with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt and tensioner; the spring tension is strong.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8" drive (10–100 Nm range)
• Torque wrench 1/2" drive (40–200 Nm range)
• Socket set 8mm–19mm (3/8" drive)
• Deep socket 12mm
• Socket 14mm
• Socket 17mm
• Ratchet 3/8"
• Ratchet 1/2"
• Wrench set 10mm–14mm
• Phillips screwdriver #2
• Trim clip removal tool
• Needle-nose pliers
• Serpentine belt tool 14mm (specialty)
• Flashlight
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (2.4L) - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator electrical terminal boot (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and note belt routing (take a photo). The serpentine belt is the single belt that drives the alternator and other accessories.
• Disconnect the battery: use a 10mm wrench to remove the negative terminal first, then the positive if needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and access the lower front area

• Use a floor jack (rated 3-ton minimum) to lift the front safely at the proper jack point.
• Set the Outlander onto jack stands (rated 3-ton minimum).
• Remove the front under cover/splash shield using a Phillips screwdriver #2 and trim clip removal tool (some fasteners may use a 10mm socket).

Step 2: Remove the serpentine belt

• Locate the automatic belt tensioner (spring-loaded arm that keeps belt tight). It will snap back strongly.
• Use a serpentine belt tool 14mm (specialty) or 14mm socket with a breaker bar 1/2" to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley, then remove the belt from the rest of the pulleys.
• If you’re reusing the belt, mark the rotation direction with a marker.

Step 3: Disconnect alternator electrical connections

• On the alternator, remove the plastic terminal cap/boot from the B+ stud by hand (or use needle-nose pliers gently).
• Use a deep socket 12mm to remove the B+ terminal nut, then lift the cable off the stud.
• Unplug the alternator connector by pressing the lock tab (use a trim clip removal tool to help depress the tab if it’s stubborn).
• Torque on install: Alternator B+ terminal nut to 9 Nm (80 in-lb)

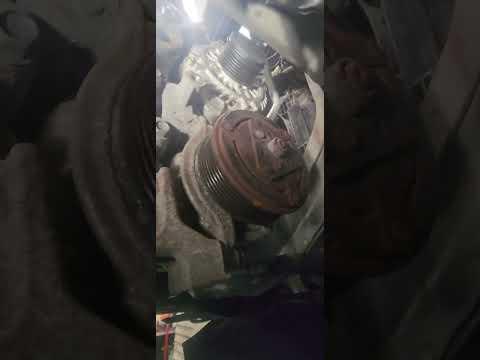

Step 4: Unbolt and remove the alternator

• Support the alternator with one hand so it doesn’t drop when bolts come out.
• Use a 14mm socket and ratchet 3/8" to remove the alternator mounting bolts (upper and lower).
• Work the alternator out from the lower area; use a flashlight to guide it past hoses/wiring without pulling on them.
• Torque on install: Alternator mounting bolts to 44 Nm (32 ft-lb)

Step 5: Install the new alternator

• Position the new alternator into place by hand, lining up the bolt holes.
• Start all mounting bolts by hand first (prevents cross-threading).
• Tighten bolts using a 14mm socket, then finish with a torque wrench 3/8" drive.
• Torque to 44 Nm (32 ft-lb)

Step 6: Reconnect alternator wiring

• Plug in the alternator electrical connector until it clicks.
• Install the B+ cable onto the stud and tighten using a deep socket 12mm.
• Torque to 9 Nm (80 in-lb), then reinstall the protective boot.

Step 7: Reinstall the serpentine belt

• Route the belt correctly over all pulleys (use your photo as a guide).
• Rotate the tensioner again using the serpentine belt tool 14mm (specialty) or 14mm socket and breaker bar 1/2".
• Slip the belt over the final pulley (commonly the alternator), then slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 8: Reinstall under cover and lower the vehicle

• Reinstall the splash shield using a 10mm socket, Phillips screwdriver #2, and trim clip removal tool.
• Remove jack stands and lower using the floor jack.

Step 9: Reconnect the battery

• Reconnect the positive terminal first (if removed), then the negative terminal using a 10mm wrench.
• Torque to 5 Nm (44 in-lb) on the terminal clamp nuts (snug, not crushing).

---

✅ After Repair

• Start the engine and listen for belt squeal or rubbing; shut off immediately if the belt tracks wrong.
• Use a digital multimeter to check charging voltage at the battery with engine idling: typically 13.8–14.5V.
• Turn on headlights and rear defogger; voltage should remain near the same range.
• Check that the battery/charging warning light on the dash is off.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
