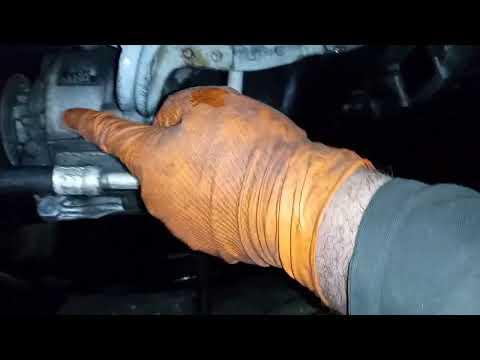

🔧 Outlander Sport - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves removing the drive belt, unplugging the alternator wiring, unbolting the alternator, then installing the new unit and re-tensioning the belt.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock 2.0L layout; access is from top and right-front wheel well.

---

⚠️ Safety & Precautions

• 🧯 Disconnect the negative battery cable first to prevent a short.
• 🧤 Keep hands/tools away from the belt path; pinch hazard.
• 🔥 Work on a cool engine; exhaust and radiator areas can burn you.
• 🧱 Support the vehicle on jack stands; never rely on a jack.
• ⚡ Do not let the alternator B+ terminal touch ground; it can arc.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Lug wrench (21mm)
• Trim clip remover
• Ratchet (3/8")
• Socket set (10mm, 12mm, 14mm)
• Wrench set (10mm, 12mm, 14mm)
• Torque wrench (10–150 Nm range)
• Breaker bar (3/8" or 1/2")
• Serpentine belt tool (specialty)
• Extension set (3", 6")
• Flathead screwdriver
• Needle-nose pliers
• Flashlight
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator electrical terminal boot/insulator (if damaged) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to neutral, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🔋 Open the hood and plan to disconnect the battery (negative cable first).
• 📸 Take a photo of the belt routing (or draw it) before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative (-) battery terminal and remove it.
• Use a 10mm wrench to loosen the positive (+) terminal if you need extra room, and keep it from touching metal.
• Negative off first, on last.

Step 2: Raise the right-front corner for access

• Use a lug wrench (21mm) to slightly loosen the right-front wheel lug nuts.
• Lift the vehicle using a floor jack, then support it with jack stands.
• Remove the wheel using the lug wrench (21mm).

Step 3: Remove the right-front splash shield/liner as needed

• Use a trim clip remover and flathead screwdriver to remove clips/screws from the splash shield.
• Pull the liner back enough to see the belt and alternator area.

Step 4: Release belt tension and remove the serpentine belt

• Locate the belt tensioner (a spring-loaded arm that keeps belt tight).
• Use a serpentine belt tool (specialty) or breaker bar on the tensioner hex and rotate it to relieve tension.
• Slip the belt off the alternator pulley, then remove the belt from the engine bay.

Step 5: Unplug the alternator electrical connector

• Use a flashlight to locate the small alternator plug.
• Press the lock tab and pull the connector off by hand (use needle-nose pliers gently if it’s stuck).

Step 6: Remove the alternator B+ cable

• Pull back the rubber boot on the alternator main terminal.
• Use a 10mm socket (some units use 12mm socket) to remove the nut holding the main power cable to the alternator.
• Move the cable aside so it cannot touch metal.

Step 7: Remove the alternator mounting bolts

• Use a 14mm socket, ratchet (3/8"), and extensions (3", 6") to remove the alternator mounting bolts.
• If the alternator is stuck in the bracket, gently wiggle it free by hand (avoid prying on aluminum).
• Torque to OEM spec on reassembly (mounting bolt torque varies by bracket/style).

Step 8: Remove the alternator from the vehicle

• Work the alternator out through the wheel well opening or upward from the engine bay (whichever has more space).
• Use a flashlight to make sure no hoses/wiring are snagged.

Step 9: Install the new alternator

• Position the alternator into the bracket by hand.
• Start all mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and torque wrench to tighten the mounting bolts: Torque to OEM spec.
• Hand-thread first, then tighten.

Step 10: Reconnect alternator wiring

• Install the main power cable and nut using a 10mm socket (or 12mm socket as equipped): Torque to OEM spec.
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator connector until it clicks.

Step 11: Reinstall the serpentine belt

• Route the belt according to your photo/diagram.
• Use a serpentine belt tool (specialty) or breaker bar to rotate the tensioner and slide the belt onto the last pulley (often the alternator).
• Visually confirm the belt is fully seated in every pulley groove using a flashlight.

Step 12: Reinstall splash shield and wheel

• Reinstall the splash shield/liner using a trim clip remover and flathead screwdriver.
• Reinstall the wheel and snug lug nuts using a lug wrench (21mm).
• Lower the vehicle using the floor jack, remove jack stands, then torque lug nuts with a torque wrench: Torque to OEM spec.

Step 13: Reconnect the battery

• Clean the terminals with a battery terminal brush if needed.
• Reconnect the positive (+) terminal first using a 10mm wrench, then reconnect the negative (-) terminal using a 10mm wrench.

---

✅ After Repair

• 🔍 Start the engine and watch the belt for smooth tracking (no wobble or squeal).
• 🔌 Verify the battery/charging warning light is off.
• 📏 If you have a multimeter, check charging voltage at the battery with the engine running using a digital multimeter: typically ~13.5–14.8V.
• 👃 Recheck for burning rubber smell (misrouted belt) after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
