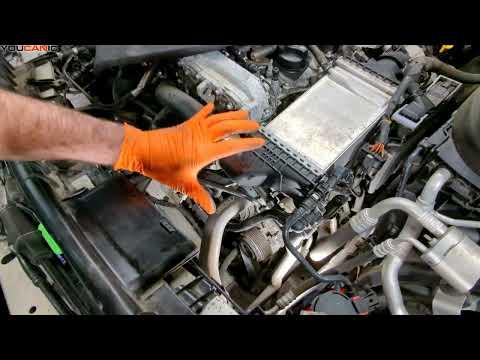

🔧 GLC300 - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. Replacing it on your GLC300 mainly involves disconnecting the battery, removing the serpentine belt, unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

Assumption: Stock engine bay layout; no aftermarket intakes/shields.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before touching alternator wiring (the alternator B+ cable is always hot).
• ⚠️ Let the engine cool; the turbo/heat shields can burn you.
• ⚠️ Support the vehicle securely if you go underneath; never rely on a jack alone.
• ⚠️ Keep fingers/tools clear of the belt path; the tensioner is spring-loaded.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 16mm socket
• E-Torx socket set (E10, E12)
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 6" extension (3/8" drive)
• Trim clip removal tool
• Flat-blade screwdriver
• 17mm serpentine belt tool
• Paint marker
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (OEM-equivalent) - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal cap/boot (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, turn the ignition off, and remove the key from the area.
• Open the hood and keep it securely propped.
• Use a paint marker to sketch the belt routing, or take a clear photo. (Belt routing matters.)
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Pull up to remove the engine cover (it’s held by rubber grommets).
• Use a flat-blade screwdriver and/or trim clip removal tool to release any intake snorkel clips in the way.
• Use an 8mm socket or 10mm socket (as equipped) to loosen intake hose clamps and move the intake duct aside.

Step 2: Remove the lower splash shield (if needed for access)

• Chock the rear wheels with wheel chocks.
• Lift the front with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Use an 8mm socket and trim clip removal tool to remove the fasteners and take off the lower engine cover/splash shield.

Step 3: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded arm with a hex for a tool).
• Fit the 17mm serpentine belt tool onto the tensioner hex and rotate to relieve tension. (A serpentine belt tool is a long handled wrench made to reach tight belt tensioners.)
• Slide the belt off the alternator pulley first, then slowly release the tensioner back to its rest position.
• If you’re replacing the belt (recommended), remove it fully now.

Step 4: Disconnect alternator electrical connections

• On the back of the alternator, unplug the small electrical connector by pressing the lock tab and pulling straight off.
• Remove the protective cap over the main power stud (B+).
• Use a 13mm socket to remove the B+ cable nut, then move the cable aside so it cannot touch metal.
• Tip: Take a photo before removing wires.

Step 5: Unbolt and remove the alternator

• Support the alternator by hand as you remove the last bolt (it’s heavier than it looks).
• Use an E-Torx socket (E10 or E12) with a 3/8" ratchet and 6" extension to remove the alternator mounting bolts.
• Work the alternator out of its bracket and remove it upward or downward (whichever clears best on your layout).
• Torque on install: Torque alternator mounting bolts to Mercedes-Benz WIS specification for your GLC300

Step 6: Install the new alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Use the E-Torx socket set (E10, E12) and 3/8" ratchet to snug bolts evenly, then use a torque wrench.
• Torque on install: Torque alternator mounting bolts to Mercedes-Benz WIS specification for your GLC300

Step 7: Reconnect alternator wiring

• Reinstall the B+ cable onto the alternator stud and tighten with a 13mm socket.
• Refit the protective terminal cap/boot.
• Plug in the small electrical connector until it clicks.
• Torque on install: Torque the B+ terminal nut to Mercedes-Benz WIS specification for your GLC300

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo/diagram.
• Use the 17mm serpentine belt tool to rotate the tensioner, slip the belt onto the last pulley (usually the alternator), then slowly release the tensioner.
• Visually confirm the belt ribs are seated correctly in every pulley groove.

Step 9: Reassemble intake parts and covers

• Reinstall the intake ducting and tighten clamps using an 8mm socket or 10mm socket (as equipped).
• Reinstall the lower splash shield using an 8mm socket and any clips removed with the trim clip removal tool.
• Reinstall the engine cover by pressing it down onto the grommets.

Step 10: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Torque on install: Torque the battery terminal clamp to Mercedes-Benz specification (do not overtighten)

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Listen for belt squeal or slapping; shut off and re-check belt seating if you hear noise.
• With the engine idling, verify system voltage is charging (typically ~13.5–14.8V) using a multimeter if you have one.
• Recheck the alternator B+ cap is installed (prevents accidental shorting).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
