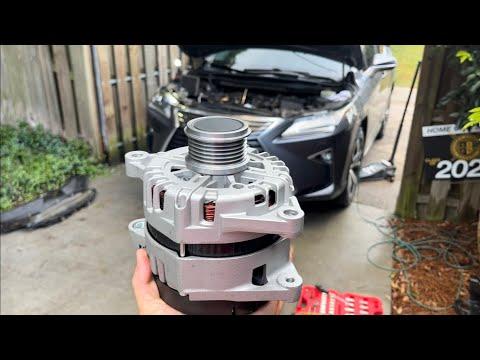

🔧 RX350 - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it means removing the serpentine belt (the single drive belt that runs multiple accessories), unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Keep fingers/clothes clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Let the engine cool before working near the radiator/fans.
• ⚠️ If raising the vehicle, support it on jack stands—never rely on a floor jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 10mm socket
• 12mm socket
• 14mm socket
• Short 3/8" extension (3")
• Long 3/8" extension (10")
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Needle-nose pliers
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal cap (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any jewelry (rings/watches can short electrical power).
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside so it can’t spring back.
• Tip: Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption (one line): Fastener torque values can vary by production; torque specs below are common for this RX350 layout—use factory specs if you have them.

Step 1: Remove the engine cover and intake ducting

• Lift off the plastic engine cover (it pulls up from rubber grommets).
• Use a 10mm socket to loosen the air intake hose clamp(s).
• Disconnect any small breather hose(s) using needle-nose pliers if clamps are present.
• Remove the intake tube/air duct to create working room near the belt and alternator.

Step 2: (If needed) Raise the right-front for access from below

• Place wheel chocks behind the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift at the proper front jack point.
• Support the vehicle with jack stands (rated 2-ton minimum).
• Remove the right-front wheel using a 21mm socket and breaker bar.

Step 3: Remove any lower splash shield panels (if blocking access)

• Use a flat trim clip tool to pop out plastic clips.
• Use a 10mm socket for any small bolts.
• Set clips/bolts aside in a tray so they don’t get lost.

Step 4: Release belt tension and remove the serpentine belt

• Find the belt tensioner (spring-loaded arm that keeps belt tight). A “tensioner” is a pulley arm with a spring inside.
• Use a serpentine belt tool (specialty) with a 14mm socket to rotate the tensioner and unload the belt.
• Slide the belt off the alternator pulley first, then slowly release the tensioner back to rest.
• Remove the belt from the other pulleys and set it aside.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab (use fingers; if stuck, gently help with a flat trim clip tool).
• Remove the rubber protective cap on the alternator B+ terminal.
• Use a 12mm socket to remove the B+ cable nut, then lift the cable off and move it aside.
• Torque to 9 Nm (80 in-lbs) when reinstalling the B+ terminal nut.

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand while removing bolts so it doesn’t drop.
• Use a 14mm socket, 3/8" drive ratchet, and extensions to remove the alternator mounting bolt(s).
• If the alternator feels “stuck” after bolts are out, wiggle it gently—do not pry hard on aluminum brackets.
• Torque to 43 Nm (32 ft-lbs) for alternator mounting bolts during installation.

Step 7: Remove the alternator from the engine bay

• Work the alternator out through the top or wheel-well opening (whichever gives the best clearance).
• Move hoses/wiring gently out of the way—do not pull on connectors.

Step 8: Install the new alternator

• Position the new alternator in place and start all mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug bolts, then use a 3/8" drive torque wrench to finish: Torque to 43 Nm (32 ft-lbs).
• Reconnect the alternator plug until it clicks.
• Reinstall the B+ cable and nut with a 12mm socket: Torque to 9 Nm (80 in-lbs), then reinstall the rubber cap.

Step 9: Reinstall the serpentine belt

• Route the belt around all pulleys except the alternator, following your photo/under-hood diagram.
• Use the serpentine belt tool (specialty) with a 14mm socket to rotate the tensioner again.
• Slip the belt onto the alternator pulley last, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley groove.
• Tip: Misrouted belts squeal immediately.

Step 10: Reinstall shields, wheel, and intake parts

• Reinstall splash shields using a 10mm socket and the plastic clips with a flat trim clip tool.
• Reinstall the wheel using a 21mm socket.
• Lower the vehicle safely (use floor jack and remove jack stands).
• Tighten lug nuts in a star pattern with a 3/8" drive torque wrench: Torque to 103 Nm (76 ft-lbs).
• Reinstall the intake duct and tighten clamps with a 10mm socket.
• Reinstall the engine cover.

Step 11: Reconnect the battery

• Reconnect the negative (-) battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and listen: no belt squeal, no rubbing noises.
• Check charging voltage with a digital multimeter: place probes on battery terminals; running voltage is typically around 13.5–14.8V.
• Turn on headlights and A/C; confirm voltage stays stable and no battery warning light appears.
• Recheck the belt tracking after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹55,000 (parts + labor)

DIY Cost: ₹12,000-₹35,000 (parts only)

You Save: ₹13,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,200-₹2,500/hour. This repair takes a shop approximately 2-3 hours.

---
