🔧 Sportage - Alternator Replacement

The alternator charges your battery and powers the vehicle’s electrical system while the engine runs. On your Sportage, replacement mainly involves disconnecting the battery, removing the serpentine belt (the single long belt that drives multiple accessories), unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring (prevents shorts).
• ⚠️ Let the engine cool; you’ll be working near hot parts.
• ⚠️ Support the vehicle safely if you lift it; never rely on a jack alone.
• ⚠️ Keep tools away from the alternator “B+” stud (the main power post) unless the battery is disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive torque wrench
• 3" socket extension
• 6" socket extension
• Flat trim tool
• Phillips screwdriver
• Needle-nose pliers
• Serpentine belt tool 17mm (specialty)
• Battery terminal puller (specialty)
• Digital multimeter
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if worn/cracked)
• Battery terminal anti-corrosion spray - Qty: 1 (optional)

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 If lifting the front, place wheel chocks behind the rear wheels and support with jack stands.
• 🧰 Take a photo of the belt routing (or sketch it). This helps you reinstall the serpentine belt correctly.
• 🧰 Battery disconnect: Use a 10mm socket to remove the negative battery cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen and remove the negative battery terminal.
• If the terminal is stuck, use a battery terminal puller (specialty) (it presses the clamp off without prying).

Step 2: Remove intake ducting / access covers (as needed)

• Use a Phillips screwdriver and flat trim tool to loosen clamps and pop any plastic clips.
• Remove the intake snorkel/ducting enough to clearly access the alternator and belt area.
• Bag and label clips/bolts as you go.

Step 3: Relieve belt tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded pulley assembly).
• Use a 17mm socket with a breaker bar (or serpentine belt tool 17mm (specialty)) to rotate the tensioner and release belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Do not let the tensioner snap back.

Step 4: Unplug the alternator electrical connections

• Unplug the alternator connector by depressing the lock tab; use needle-nose pliers only if needed to help press the tab (don’t crush the connector).
• Remove the rubber boot on the main power stud (B+).
• Use a 12mm socket to remove the B+ retaining nut, then lift the cable off and move it aside.

Step 5: Remove the alternator mounting bolts

• Support the alternator by hand as you remove hardware so it doesn’t drop suddenly.
• Use a 14mm socket with a 6" extension to remove the alternator mounting bolts.
• If the alternator is stuck in its bracket, gently wiggle it free; avoid prying hard against aluminum parts.

Step 6: Remove the alternator from the engine bay

• Carefully maneuver the alternator out through the available space.
• If clearance is tight, you may need to reposition hoses/ducting you removed earlier (do not disconnect coolant lines unless absolutely necessary).

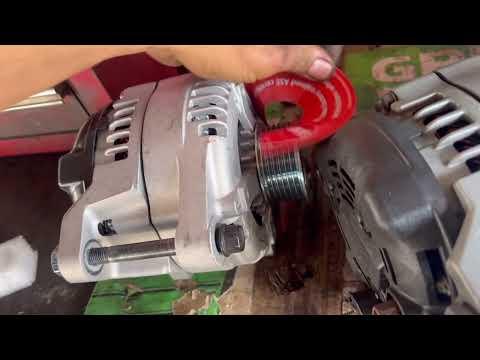

Step 7: Install the new alternator

• Set the alternator into place and hand-start all mounting bolts to prevent cross-threading.
• Use a 14mm socket to snug bolts evenly, then use a 3/8" drive torque wrench to tighten: Torque to OEM specification.
• Start bolts by hand at least 5 turns.

Step 8: Reconnect alternator wiring

• Install the B+ cable and nut using a 12mm socket, then: Torque to OEM specification.
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo/diagram.
• Use a 17mm socket with a breaker bar to rotate the tensioner and slide the belt onto the alternator pulley.
• Release the tensioner slowly and confirm the belt sits fully in every pulley groove.

Step 10: Reinstall intake ducting / covers

• Reinstall ducting and clips using a Phillips screwdriver and flat trim tool.
• Make sure hose clamps are snug and nothing is left loose near the belt.

Step 11: Reconnect the battery

• Reinstall the negative battery terminal using a 10mm socket.
• Optional: apply battery terminal anti-corrosion spray.

Assumption: Torque values vary by production details; tighten fasteners to OEM specification using a torque wrench.

---

✅ After Repair

• 🧪 Start the engine and listen for belt squeal or slapping (a sign the belt is misrouted).
• 🧪 Use a digital multimeter at the battery terminals: engine running should typically show about 13.5V–14.8V.
• 🧪 Turn on headlights + rear defrost and recheck voltage; it should remain in the charging range.
• 🧪 Recheck that the B+ boot is fully covering the stud and wiring is not rubbing on the belt.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,100 (parts + labor)

DIY Cost: $200-$650 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
