🔧 Sorento - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt (serpentine belt), unbolting the alternator, and reinstalling everything with the correct belt routing and torques.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock 3.3L layout with alternator front-access.

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching alternator wiring.
• 🛑 Let the engine cool fully; the radiator and engine parts can burn you.
• 🛑 Support the SUV with jack stands on solid ground; never rely on a floor jack.
• 🛑 Keep fingers and tools clear of the belt path and pulleys.
• 🛑 Do not short the alternator B+ terminal to ground (it’s always hot if battery is connected).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Socket extensions (3" and 6")
• Torque wrench (10-150 ft-lbs range)
• Flat trim clip tool
• Phillips screwdriver
• Serpentine belt tool (specialty)
• Digital multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear tires.
• 🔋 Open the hood and disconnect the battery negative terminal using a 10mm socket (tuck the cable aside so it can’t spring back).
• 🧰 Take a quick photo of the belt routing sticker (or draw a simple sketch). The “serpentine belt” is the single belt that drives multiple pulleys.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake ducting

• Remove the plastic engine cover by pulling upward firmly with your hands.
• Loosen the intake tube clamps using a Phillips screwdriver (some clamps use a 10mm head; use a 10mm socket if needed).
• Unclip/remove the intake duct pieces to open access at the front of the engine.

Step 2: Raise the front and remove the lower splash shield (if equipped)

• Lift the front with a floor jack (rated 3-ton minimum) and set it on jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield fasteners using a flat trim clip tool and a 10mm socket.

Step 3: Relieve belt tension and remove the serpentine belt

• Locate the belt tensioner. The “tensioner” is a spring-loaded arm that keeps the belt tight.
• Install a 17mm socket on a serpentine belt tool (specialty) or 1/2" breaker bar and rotate the tensioner to relieve tension.
• Slide the belt off the alternator pulley first, then slowly release the tensioner back.
• Remove the belt fully if you’re replacing it, or position it aside if reusing.

Step 4: Disconnect alternator electrical connections

• On the back of the alternator, unplug the electrical connector by pressing the tab and pulling straight off.
• Remove the protective rubber boot from the main power (B+) stud.
• Remove the B+ nut using a 12mm socket, then lift the ring terminal off the stud.
• Add a tiny dab of dielectric grease.

Step 5: Unbolt and remove the alternator

• Remove the alternator mounting bolts using a 14mm socket and socket extensions (3" and 6").
• If the alternator is tight in its bracket, wiggle it by hand and work it forward; avoid prying on plastic parts.
• Lift the alternator out from the top or guide it out from below (whichever clears best on your A4WD layout).

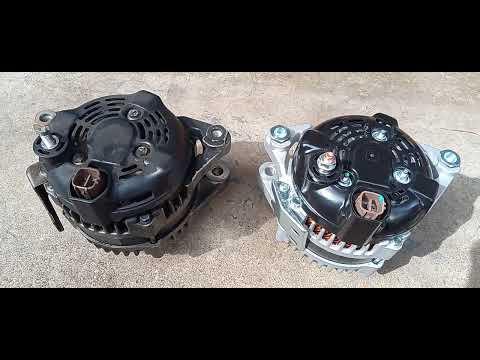

Step 6: Install the new alternator

• Set the new alternator into the bracket and start all mounting bolts by hand to prevent cross-threading.
• Tighten the alternator mounting bolts using a 14mm socket, then final-tighten with a torque wrench.
• Torque to 49-59 Nm (36-44 ft-lbs) for alternator mounting bolts.

Step 7: Reconnect alternator wiring

• Install the main B+ cable on the stud and tighten the nut using a 12mm socket.
• Torque to 9-12 Nm (80-106 in-lbs) for the B+ terminal nut.
• Reinstall the rubber boot over the B+ terminal.
• Plug the alternator electrical connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt exactly like your photo/diagram, leaving the alternator pulley for last.
• Rotate the tensioner with a serpentine belt tool (specialty) and 17mm socket, slip the belt onto the alternator pulley, then slowly release.
• Visually confirm the belt ribs are centered in every grooved pulley.

Step 9: Reinstall splash shield and intake parts

• Reinstall the lower splash shield using a 10mm socket and flat trim clip tool.
• Reinstall intake ducting and tighten clamps using a Phillips screwdriver (or 10mm socket if applicable).
• Push the engine cover back into place by hand.

Step 10: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Lower the SUV safely from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• 🔎 Start the engine and listen for belt squeal or slapping (both suggest misrouting).
• 🔌 Use a digital multimeter on the battery terminals with the engine idling: you should typically see about 13.5-14.8V.
• 🧪 Turn on headlights and rear defrost and recheck voltage; it should stay above ~13V at idle.
• 🛠️ Recheck for loose tools/fasteners and make sure the B+ boot is fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
