🔧 Renegade - Alternator Replacement

The alternator charges the battery and powers the vehicle’s electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt, unbolting the alternator, and reinstalling everything with correct belt routing.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: stock 2.4L layout; access is from above and/or right-front wheel well.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent short circuits.
• ⚠️ Keep fingers/tools clear of the belt path and pulleys.
• ⚠️ Support the vehicle with jack stands if a wheel-well access panel is removed.
• ⚠️ Let the engine cool before working near the radiator and exhaust.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs)
• 3/8" drive breaker bar
• 3/8" drive extension set (3" and 6")
• Serpentine belt tool, 3/8" drive (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut cover (if damaged) - Qty: 1
• Accessory drive belt routing sticker (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and take a clear photo of the belt routing (or sketch it).
• If you’ll work through the wheel well, chock the rear wheels before lifting the front.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Remove the engine cover by pulling it upward firmly (it’s held by rubber grommets).
• Use a flat-blade screwdriver and trim clip removal tool to loosen any intake duct clips/push-pins that block alternator access.
• If equipped with an upper intake duct/air snorkel, loosen clamps using an 8mm socket and lift it out.

Step 2: Remove the air intake box (if it blocks the alternator)

• Unplug the intake sensor connector (press the tab and pull straight off).
• Loosen hose clamps with an 8mm socket and remove the intake tube.
• Remove airbox fasteners using a 10mm socket, then lift the airbox straight up to release the rubber mounts.
• Tip: Wiggle gently—don’t pry hard.

Step 3: Relieve serpentine belt tension and remove the belt

• Locate the belt tensioner (spring-loaded pulley).
• Install a serpentine belt tool, 3/8" drive (specialty) or a 3/8" drive breaker bar into the tensioner square drive.
• Rotate the tensioner to release tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to resting position.
• Define: The “tensioner” is the spring arm that keeps the belt tight automatically.

Step 4: Raise the right-front (if needed for access) and remove the splash shield

• Place wheel chocks at the rear wheels.
• Lift the right-front using a floor jack and support with jack stands.
• If an inner fender/splash shield blocks access, remove push-pins using a trim clip removal tool and a flat-blade screwdriver.

Step 5: Disconnect alternator electrical connections

• On the alternator main charge cable (B+), remove the protective cap, then remove the nut using a 13mm socket.
• Unplug the alternator connector by pressing the locking tab and pulling straight out (use needle-nose pliers gently if stuck).
• Tuck the wiring safely out of the way.
• Torque on install: Torque B+ terminal nut to 9 Nm (80 in-lbs)

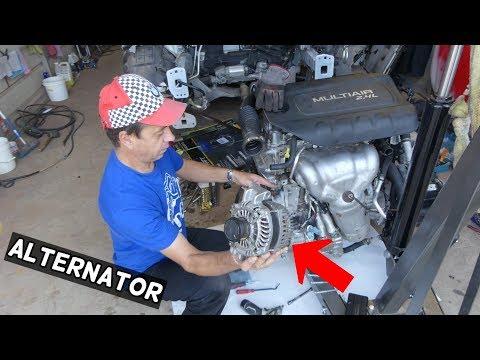

Step 6: Unbolt and remove the alternator

• Support the alternator with one hand.
• Remove the alternator mounting bolts using a 15mm socket with a 3/8" drive ratchet and extensions as needed.
• Work the alternator out of the bracket (it may be snug in the locating sleeves).
• Tip: Rock it gently; avoid prying on aluminum.
• Torque on install: Torque alternator mounting bolts to 48 Nm (35 ft-lbs)

Step 7: Install the new alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Tighten bolts with a 15mm socket, then finish with a torque wrench: Torque alternator mounting bolts to 48 Nm (35 ft-lbs).

Step 8: Reconnect alternator wiring

• Reconnect the alternator plug until it clicks.
• Install the main charge cable and nut using a 13mm socket, then torque to 9 Nm (80 in-lbs).
• Reinstall the protective terminal cap.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo/sketch (make sure every rib sits in every pulley groove).
• Use the serpentine belt tool, 3/8" drive (specialty) or breaker bar to rotate the tensioner and slip the belt onto the alternator pulley last.
• Release the tensioner slowly and re-check belt alignment on all pulleys.

Step 10: Reassemble intake/splash shield and reconnect the battery

• Reinstall the splash shield with the trim clip removal tool and push-pins/clips (press fully seated).
• Reinstall the airbox/intake ducting using 10mm socket and tighten clamps with an 8mm socket.
• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or chirping; if heard, shut off and re-check belt routing and seating.
• With the engine idling, confirm charging voltage is normal with a meter if available (typically ~13.5–14.7V).
• Recheck around the alternator for any loose wiring and ensure the B+ terminal cap is installed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
