🔧 QX50 - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves removing the serpentine belt, unplugging the alternator wiring, unbolting the alternator, then installing the new unit and re-tensioning the belt.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent a short at the alternator power cable.
• ⚠️ Keep hands/clothes clear of the belt path and cooling fans.
• ⚠️ Work on a cool engine to avoid burns from hot radiator hoses and metal parts.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs)
• 6" extension (3/8")
• 12" extension (3/8")
• 14mm combination wrench
• Serpentine belt tool (specialty)
• Flat trim tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Mechanic gloves
• Safety glasses
• Shop flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back to the post.
• Tip: Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and gain access

• Remove the plastic engine cover by pulling it upward firmly (it’s held by grommets). Use a flat trim tool if it’s stuck.
• If the intake ducting blocks access, loosen the clamps with a 10mm socket and move the duct aside.

Step 2: Raise the front (if you need lower access)

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack and set the vehicle securely on jack stands.
• If equipped with a lower splash shield, remove it using a 10mm socket and a flat trim tool for clips.

Step 3: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded pulley).
• Use a serpentine belt tool (a long, thin handle made to reach belt tensioners) or a 14mm wrench on the tensioner hex.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab and pulling straight off. Use needle-nose pliers carefully if needed.
• Remove the rubber boot from the alternator B+ terminal.
• Use a 12mm socket to remove the B+ terminal nut, then lift the cable off and move it aside.
• Torque to 9.8 Nm (87 in-lbs) for the B+ terminal nut during reassembly.
• Apply a small amount of dielectric grease to the connector seal on reassembly.

Step 5: Unbolt the alternator

• Support the alternator with one hand.
• Use a 14mm socket, ratchet, and extensions to remove the alternator mounting bolts.
• Note the bolt positions as you remove them so they go back in the same locations.
• Torque to 49 Nm (36 ft-lbs) for alternator mounting bolts during reassembly.

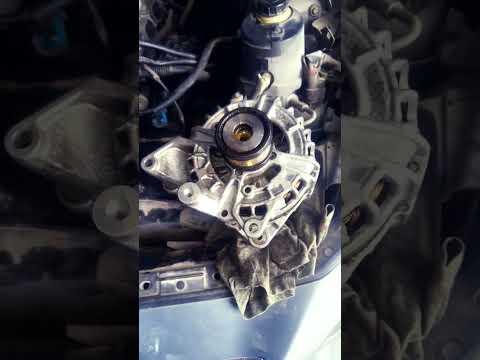

Step 6: Remove the alternator from the engine bay

• Wiggle the alternator free from its bracket.
• If it’s stuck, tap gently on the alternator ear with the palm of your hand (do not pry on the aluminum bracket).
• Lift it out from the top; if clearance is tight, guide it out carefully without forcing hoses or wiring.

Step 7: Install the new alternator

• Set the new alternator into place and line up the mounting holes.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket to tighten evenly, then use a torque wrench to finish: Torque to 49 Nm (36 ft-lbs).

Step 8: Reconnect wiring

• Install the B+ cable onto the stud and tighten the nut with a 12mm socket: Torque to 9.8 Nm (87 in-lbs).
• Reinstall the rubber boot fully over the terminal.
• Plug the alternator connector back in until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt exactly as shown on the under-hood belt diagram (or your photo).
• Use the serpentine belt tool or 14mm wrench to rotate the tensioner and slip the belt over the alternator pulley last.
• Double-check the belt is seated in every pulley groove before releasing the tensioner.

Step 10: Reassemble and reconnect the battery

• Reinstall any splash shield using a 10mm socket and trim tool.
• Lower the vehicle off the jack stands using the floor jack.
• Reinstall the intake ducting and tighten clamps with a 10mm socket.
• Press the engine cover back onto its grommets.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or slapping; if you hear it, shut off the engine and re-check belt routing.
• With the engine idling, check charging voltage at the battery with a multimeter: typically about 13.5-14.8V.
• Recheck for any loose tools, wiring near pulleys, or an unseated connector.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
