🔧 Accent - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves removing the drive belt, disconnecting the alternator wiring, unbolting the alternator, then reinstalling and checking charging operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock alternator location and OEM-style belt routing.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent a short circuit.
• ⚠️ Let the engine cool fully; the exhaust area can burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers and tools clear of pulleys and the belt path.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 6" socket extension
• 12" socket extension
• 17mm combination wrench
• Flat trim tool
• Needle-nose pliers
• Serpentine belt tool (specialty)
• Multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine/drive belt - Qty: 1
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and plan your belt routing. Take a photo for reference.
• Disconnect the battery using a 10mm socket: remove negative (−) first, then positive (+) if needed.
• If you need underside access, lift the front with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove intake ducting (for access)

• Remove the air snorkel/duct clips using a flat trim tool.
• Loosen hose clamps as needed using a flat screwdriver (if equipped) or use needle-nose pliers for spring clamps.
• Move the ducting out of the way so you can reach the alternator and belt area.

Step 2: Relieve belt tension and remove the belt from the alternator

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a 17mm socket with a serpentine belt tool (specialty) or 17mm combination wrench to rotate the tensioner and release tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner back.
• Move slowly—tensioners snap back hard.

Step 3: Disconnect alternator electrical connections

• Unplug the small alternator connector by pressing the tab and pulling straight off.
• Remove the rubber boot over the main charging cable.
• Use a 10mm socket to remove the nut holding the main power cable to the alternator stud.
• Spray terminals with electrical contact cleaner and let dry.

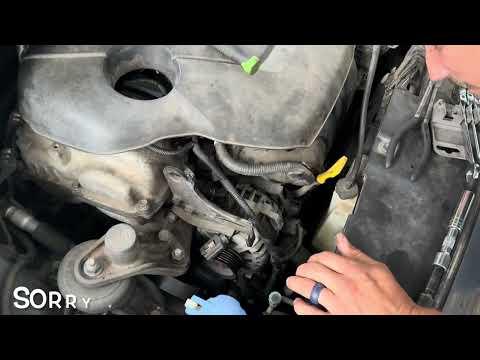

Step 4: Unbolt and remove the alternator

• Support the alternator with one hand while removing bolts.
• Remove the alternator mounting bolts using a 12mm socket and/or 14mm socket with a ratchet and extensions (bolt sizes vary by mounting point).
• If the alternator is stuck in the bracket, wiggle it and gently lever with a flat trim tool (avoid damaging aluminum).
• Lift the alternator out from the top if space allows; otherwise guide it out carefully from below.

Step 5: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts evenly using a 12mm socket / 14mm socket.
• Final-tighten using a torque wrench: Torque to Hyundai factory specification.

Step 6: Reconnect alternator wiring

• Install the main charging cable on the alternator stud and tighten with a 10mm socket: Torque to Hyundai factory specification.
• Reinstall the rubber protective boot over the main terminal.
• Plug in the small connector until it clicks.

Step 7: Reinstall the belt

• Route the belt exactly like your reference photo (all ribs centered in pulley grooves).
• Rotate the tensioner using a 17mm socket and serpentine belt tool (specialty), then slip the belt onto the alternator pulley.
• Release the tensioner slowly and inspect the belt on every pulley.

Step 8: Reinstall intake ducting and reconnect the battery

• Reinstall intake ducting and clips using a flat trim tool.
• Reconnect the battery using a 10mm socket: positive (+) first, then negative (−).
• Tighten terminal clamps using a torque wrench: Torque to Hyundai factory specification.

---

✅ After Repair

• Start the engine and confirm the charging/battery warning light is off.
• Listen for belt squeal or slapping; shut off and re-check belt seating if you hear noise.
• Use a multimeter at the battery terminals with the engine idling:
  • A healthy charging system typically shows about 13.5–14.8 volts.
• Turn on headlights and blower motor; verify voltage stays stable and lights do not dim.
• Recheck for loose tools/wiring and make sure the alternator terminal boot is fully covering the stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$450 (parts only)

You Save: $290-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
