🔧 Pilot - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Pilot, replacing it involves disconnecting the battery, removing the serpentine belt (the single long belt that drives multiple accessories), swapping the alternator, then reinstalling and checking charging voltage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent electrical shorts.
• ⚠️ Keep hands/clothes clear of the belt path; the belt tensioner is spring-loaded.
• ⚠️ Work on a cool engine; the radiator fan can turn on unexpectedly.
• ⚠️ Support the hood securely and use good lighting to avoid misrouting the belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs range)
• 3/8" drive extension set
• Serpentine belt tool or long 3/8" breaker bar
• Flat trim tool
• Flashlight
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (3.5L) - Qty: 1
• Serpentine belt - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Write down your radio presets if you want to keep them.
• Tip: Take a photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Standard top-access alternator layout on the 3.5L; minor fastener locations may vary slightly.

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the cable off and tuck it aside so it cannot spring back to the post.

Step 2: Remove the engine cover and open up access

• Remove the plastic engine cover by pulling it upward firmly (it’s held by rubber grommets). Use a flat trim tool if needed.
• Use a 10mm socket and 12mm socket to remove any intake duct/air inlet fasteners and clips that block access to the belt/alternator area.
• Move the ducting aside carefully (no need to fully remove the air box unless it blocks your access).

Step 3: Relieve serpentine belt tension

• Locate the belt tensioner (a spring-loaded arm with a pulley).
• Install a 14mm socket on the tensioner bolt and use a serpentine belt tool or long 3/8" breaker bar to rotate the tensioner and release belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner back to rest.
• Tip: Release tension slowly to avoid pinched fingers.

Step 4: Unplug alternator electrical connections

• Find the alternator electrical connector and press the lock tab to unplug it (use a flat trim tool gently if the tab is stubborn).
• Remove the rubber boot covering the main charging cable (B+).
• Use a 10mm socket (or 12mm socket, depending on terminal nut) to remove the B+ terminal nut and lift the cable off the stud.
• Keep the nut with the alternator hardware so it doesn’t get lost.

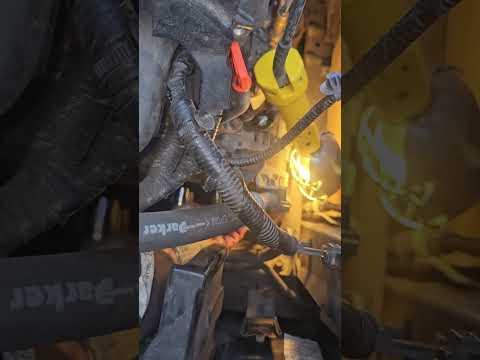

Step 5: Remove the alternator mounting bolts

• Support the alternator by hand so it can’t drop or pinch wiring.
• Use a 12mm socket and/or 14mm socket with a 3/8" drive ratchet and extensions to remove the alternator mounting bolts.
• Lift the alternator out from the top (you may need to rotate it to clear hoses/lines).

Step 6: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand (this prevents cross-threading).
• Tighten the mounting bolts using a 3/8" drive torque wrench.
• Torque to 44 Nm (32 ft-lbs) for alternator mounting bolts (common Honda spec for this application).

Step 7: Reconnect alternator wiring

• Reinstall the B+ charging cable on the stud and tighten the nut with a 10mm socket (or 12mm socket as equipped).
• Torque to 9.8 Nm (7 ft-lbs) for the B+ terminal nut.
• Reinstall the rubber protective boot over the terminal.
• Plug the alternator connector back in until it clicks.
• Tip: A tiny dab of dielectric grease helps prevent corrosion.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt diagram (or your photo).
• Use a 14mm socket with the serpentine belt tool or long 3/8" breaker bar to rotate the tensioner and slip the belt onto the alternator pulley last.
• Slowly release the tensioner and double-check the belt is fully seated in every pulley groove.

Step 9: Reinstall intake ducting and engine cover

• Reinstall any intake duct/air inlet fasteners using a 10mm socket and 12mm socket.
• Press the engine cover back onto its grommets until it seats.

Step 10: Reconnect the battery

• Reconnect the negative (-) terminal and tighten using a 10mm socket.
• Make sure the clamp is snug and does not rotate by hand.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or slapping; shut off and re-check belt alignment if you hear noise.
• Use a basic voltmeter (if available): charging voltage at the battery should typically be about 13.5–14.8V with the engine running.
• Reset items that may have lost memory: clock and driver window auto-up (cycle the window fully down, then fully up, holding the switch 2 seconds at the top).
• Check for any stored warning lights after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
