🔧 Civic - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves removing the drive belt, unplugging the alternator wiring, unbolting the alternator, then installing and re-tensioning the belt.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Keep tools away from the alternator “B+” terminal; it’s direct battery power.
• ⚠️ Work on a cool engine; the radiator/fan area can be hot.
• ⚠️ If lifting the car, support it with jack stands before going underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs range)
• 10mm socket
• 12mm socket
• 14mm socket
• 6" extension (3/8" drive)
• Serpentine belt tool or long 14mm box wrench
• Flat trim clip tool
• Phillips screwdriver
• Digital multimeter
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Recommended if belt is cracked/glazed
• Dielectric grease - Qty: 1
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and let the engine cool fully.
• Plan to disconnect the battery: remove negative terminal first, install it last.
• Tip: Take a photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Torque values below are typical for your Civic’s alternator hardware; verify with the Honda service manual if available.

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it cannot spring back.
• Tip: Negative off first prevents accidental sparks.

Step 2: Create working room at the front of the engine

• Use a Phillips screwdriver and flat trim clip tool to remove any intake snorkel clips/fasteners in the way.
• Move the ducting aside (do not force it; it should wiggle free once clips are out).

Step 3: Release tension and remove the serpentine belt from the alternator pulley

• Locate the automatic belt tensioner (spring-loaded arm).
• Use a 14mm socket with a 3/8" drive ratchet (or a serpentine belt tool or long 14mm box wrench) to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly let the tensioner return.
• Tool note: A serpentine belt tool is a long handle made for tight spaces.

Step 4: Unplug alternator electrical connectors

• Find the small alternator plug and press the tab to unplug it by hand.
• Remove the rubber protective boot covering the alternator “B+” stud.
• Use a 10mm socket and 3/8" drive ratchet to remove the nut holding the main charge cable to the B+ stud.
• Move the cable aside so it cannot touch metal.
• Torque on install: Torque to 9.8 Nm (87 in-lbs)
• Tip: Do not overtighten the B+ stud nut.

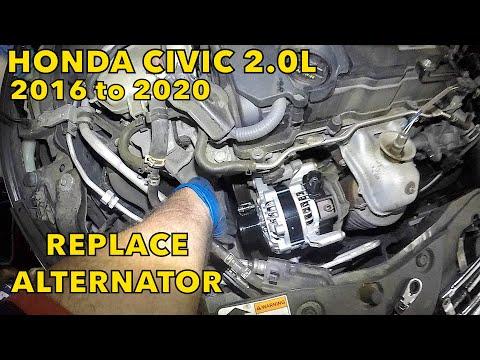

Step 5: Unbolt and remove the alternator

• Locate the alternator mounting bolts (typically a top and lower mount).
• Use a 12mm socket or 14mm socket (as fitted) with a 3/8" drive ratchet and 6" extension to remove the mounting bolts.
• Lift the alternator out of the engine bay. If it’s stuck, wiggle it gently—do not pry hard on aluminum brackets.
• Torque on install: Torque mounting bolts to 44 Nm (33 ft-lbs)

Step 6: Transfer any brackets (if your replacement alternator is bare)

• If the old alternator has a small bracket/heat shield that the new one does not, move it over.
• Use the same 12mm socket or 14mm socket and 3/8" drive ratchet as needed.

Step 7: Install the new alternator

• Set the alternator in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten with a 12mm socket or 14mm socket and 3/8" drive ratchet.
• Final-tighten using a 3/8" drive torque wrench (10–100 ft-lbs range).
• Torque: Torque mounting bolts to 44 Nm (33 ft-lbs)
• Tip: Hand-start bolts 3–4 turns first.

Step 8: Reconnect alternator wiring

• Clean the cable eyelet and stud area lightly using a small wire brush if there’s corrosion.
• Install the main charge cable and nut using a 10mm socket.
• Torque: Torque to 9.8 Nm (87 in-lbs)
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator connector until it clicks.
• Apply a thin smear of dielectric grease to the connector seal (not on the metal terminals).

Step 9: Reinstall the serpentine belt

• Route the belt according to the under-hood belt diagram (or your photo).
• Use a 14mm socket with a 3/8" drive ratchet to rotate the tensioner again.
• Slip the belt onto the alternator pulley and slowly release the tensioner.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10: Reinstall intake ducting/clips

• Reposition the intake pieces you moved earlier.
• Use a Phillips screwdriver and flat trim clip tool to reinstall clips/fasteners.

Step 11: Reconnect the battery

• Install the negative battery terminal using a 10mm socket.
• Torque: Torque to 6 Nm (53 in-lbs)
• Apply battery terminal protectant spray after tightening.

---

✅ After Repair

• Start the engine and make sure the battery/charging warning light on the dash turns off.
• Use a digital multimeter at the battery terminals with the engine idling: charging should typically be about 13.5–14.8 volts.
• Turn on headlights and blower motor; confirm voltage stays stable and there are no belt squeals.
• Recheck belt alignment one more time with the engine off.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
