🔧 Accord - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent short circuits.
• ⚠️ Keep hands/clothes away from the belt path; do not crank the engine with the belt off.
• ⚠️ Support the car with jack stands if you remove the wheel/splash shield.
• ⚠️ Work on a cool engine; the exhaust and radiator area can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" drive breaker bar
• Serpentine belt tool (specialty)
• Torque wrench (10-150 ft-lbs range)
• Flat trim clip tool
• Phillips screwdriver
• Flashlight
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Replace if cracked/glazed.
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in neutral, and set the parking brake.
• Let the engine cool fully.
• Open the hood and take a photo of the belt routing diagram (usually on a sticker near the radiator support). This saves mistakes later.
• Assumption: Your Accord uses the standard serpentine belt auto-tensioner layout for the 2.4L engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it cannot spring back.

Step 2: Gain access to the belt and alternator

• Remove the upper intake ducting if it blocks access (common on this engine).
• Use a Phillips screwdriver for hose clamps and a 10mm socket for any airbox/duct bolts.
• If you need more room from below, raise the front-right corner using a floor jack, set it on jack stands, then remove the wheel with a 19mm socket.
• Remove the right-side splash shield fasteners using a flat trim clip tool and 10mm socket.

Step 3: Release serpentine belt tension

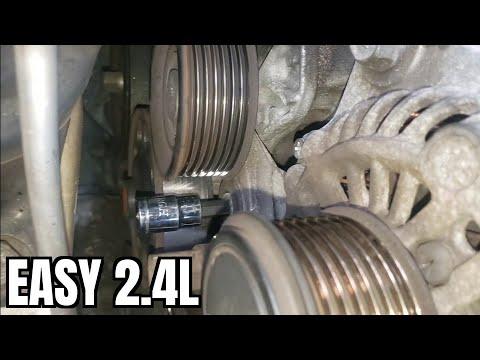

• Locate the belt tensioner (spring-loaded arm). A tensioner is a pulley on a hinged arm that keeps the belt tight automatically.
• Place a 14mm socket with a breaker bar or serpentine belt tool (specialty) on the tensioner’s hex and rotate to relieve tension.
• Slide the belt off the alternator pulley first, then slowly let the tensioner return.
• Tip: Move slowly—spring tension is strong.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator control connector by pressing the tab and pulling straight off. Use a tiny dab of dielectric grease on reassembly.
• Remove the rubber boot over the main charging cable (B+).
• Use a 12mm socket to remove the B+ nut, then lift the cable off the stud.
• Tip: Don’t drop the nut—stuff a rag underneath.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket with a 3/8" drive ratchet and extensions to remove the alternator mounting bolts.
• Lift the alternator out from the top if it clears; if not, guide it out through the wheel-well opening.

Step 6: Install the new alternator

• Set the new alternator in place and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a 14mm socket, then Torque to 44 Nm (33 ft-lbs).
• Reconnect the main charging cable and tighten the nut with a 12mm socket, then Torque to 9 Nm (80 in-lbs).
• Reconnect the alternator plug until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt exactly like your photo/diagram.
• Rotate the tensioner again using a 14mm socket and breaker bar or serpentine belt tool (specialty).
• Slip the belt onto the alternator pulley last, then slowly release the tensioner.
• Visually check that the belt is fully seated in every pulley groove using a flashlight.

Step 8: Reassemble access parts

• Reinstall the splash shield using the flat trim clip tool and 10mm socket.
• Reinstall the wheel and hand-tighten lug nuts.
• Lower the car, then tighten lug nuts in a star pattern with a torque wrench and 19mm socket: Torque to 108 Nm (80 ft-lbs).
• Reinstall intake ducting using the Phillips screwdriver and 10mm socket.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Tighten until snug; do not over-tighten the clamp.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping; shut off immediately if you hear it.
• With the engine idling, check charging voltage at the battery using a digital multimeter: target is typically 13.8-14.8V.
• Turn on headlights and rear defrost; voltage should stay above ~13.5V at idle.
• Recheck that the B+ boot is covering the terminal completely.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
