🔧 Acadia - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt (the long drive belt), swapping the alternator, and then verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🔸 Disconnect the negative battery cable before touching alternator wiring (the B+ cable is always “hot” otherwise).
• 🔸 Let the engine cool completely; you’ll be working near hot components.
• 🔸 Keep fingers/clothes clear of the belt path; never work near the belt with the engine running.
• 🔸 Support the vehicle with jack stands if you raise it; never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Ratchet (3/8")
• Breaker bar (3/8")
• Serpentine belt tool (specialty)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm, 15mm
• Torque wrench (10-150 ft-lbs range)
• Flat trim tool
• Flathead screwdriver
• Needle-nose pliers
• Flashlight
• Multimeter (DC voltage)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt shows cracks)
• Battery terminal anti-corrosion grease - Qty: 1

---

📋 Before You Begin

• Park on a level surface, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and remove loose jewelry/clothing strings.
• Assumption: Your alternator is accessed from the top/front; some units are easier with the right-front wheel/splash shield removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.
• Tip: Wrap the terminal with a glove.

Step 2: Remove the engine cover (if equipped)

• Pull up firmly on the cover to release it from the rubber grommets (mounting bushings).
• Use a flashlight to confirm all corners are free before lifting away.

Step 3: Remove the air intake ducting for access

• Use an 8mm socket or flathead screwdriver to loosen the hose clamps.
• Disconnect any small vacuum/PCV tubes using needle-nose pliers (squeeze the clamp, then slide it back).
• Lift the intake duct out of the way.

Step 4: Note the serpentine belt routing

• Use your flashlight and take a photo of the belt routing before removal.
• If there’s a belt routing diagram sticker under the hood, use that as your reference.

Step 5: Release belt tension and remove the belt from the alternator pulley

• Install a serpentine belt tool (specialty) or 3/8" breaker bar on the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to rest (don’t let it snap back).
• Tip: Only remove the belt from one pulley.

Step 6: Disconnect alternator electrical connections

• Unplug the alternator’s electrical connector by releasing the lock tab using a flat trim tool.
• Remove the rubber boot from the B+ stud (main power post).
• Use a 13mm socket to remove the B+ nut, then remove the cable.
• Torque on install (B+ nut): Torque to 15 Nm (11 ft-lbs)

Step 7: Remove the alternator mounting bolts

• Support the alternator with one hand so it doesn’t drop when bolts come out.
• Use a 15mm socket and ratchet (3/8") to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay.
• Torque on install (alternator mounting bolts): Torque to 50 Nm (37 ft-lbs)

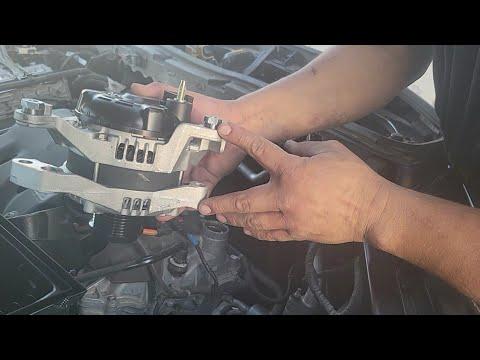

Step 8: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Use a 15mm socket to snug the bolts, then use a torque wrench to finish: Torque to 50 Nm (37 ft-lbs).
• Reconnect the electrical plug until it clicks.
• Install the B+ cable and nut using a 13mm socket: Torque to 15 Nm (11 ft-lbs).
• Reinstall the rubber boot over the B+ terminal.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo/underhood diagram.
• Use the serpentine belt tool (specialty) or 3/8" breaker bar to rotate the tensioner and slip the belt onto the alternator pulley.
• Visually check the belt is seated in every pulley groove (no “half-on” ribs).

Step 10: Reinstall intake duct and engine cover

• Reinstall the intake duct and tighten clamps with an 8mm socket or flathead screwdriver.
• Reconnect any hoses you removed using needle-nose pliers for clamps.
• Press the engine cover back onto its grommets.

Step 11: Reconnect the battery

• Apply a thin coat of battery terminal anti-corrosion grease to the terminal.
• Reinstall the negative battery terminal and tighten with a 10mm socket.
• Torque (battery terminal clamp): Torque to 15 Nm (11 ft-lbs)

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Use a multimeter (DC voltage) at the battery terminals:
  • Engine off: ~12.4-12.7V for a healthy battery.
  • Engine running: typically ~13.5-14.8V if charging normally.
• Listen for belt squeal and re-check belt alignment if you hear noise.
• Recheck the alternator B+ nut and battery terminal for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
