F-150 - Alternator Replacement 🔧

Got it: 2016 F-150 Lariat 5.0L, 4WD. I’ll walk you through this like a first alternator job, step by step.

Safety First ⚠️

• ⚠️ Disconnect the battery before touching the alternator. This prevents sparks and damage.
• ⚠️ Let the engine cool fully. You’ll be working near hot parts.
• ⚠️ Use jack stands if you ever lift the truck; never rely only on a jack.

Tools & Supplies Needed 🧰

• 🛠️ Socket set (metric):
  • Common sizes you’ll use: 8mm, 10mm, 13mm, 15mm
• 🛠️ Ratchets:
  • 3/8" drive ratchet (normal size)
  • 1/2" drive ratchet or breaker bar (for belt tensioner if tight)
• 🛠️ Serpentine belt tool or long-handled ratchet:
  • This is a long, flat tool that gives leverage to move the belt tensioner.
• 🛠️ Torx or E-torx bits (not always needed, but handy on Ford brackets)
• 🛠️ Torque wrench:
  • Capable of 10–60 ft-lb (for alternator and battery connections)
• 🛠️ Flat trim tool or flat screwdriver (to release plastic clips; be gentle)
• 🛠️ Work light so you can clearly see the belt routing and bolts
• 🛠️ Gloves & safety glasses
• 🛠️ New alternator (for 5.0L, 2016, correct amperage rating)
• 🛠️ Optional but smart: New serpentine belt if the old one is cracked or glazed

Key Torque Specs 🔩

• 🔧 Battery terminal clamp bolts: ~7–8 ft-lb (just snug; don’t crush)
• 🔧 Alternator mounting bolts: ~35–40 ft-lb
• 🔧 Alternator main power cable nut: ~80–100 in-lb (about 7–8 ft-lb)

If any bolt feels like it’s about to strip, stop and re-check size and direction.

Step 1 – Prepare the Truck 🧱

• 🧰 Park on level ground, set the parking brake, and put the shifter in PARK.
• 🧰 Open the hood and use the prop rod if your hood doesn’t have struts.

Step 2 – Disconnect the Battery 🔋

• ⚡ Locate the battery on the driver side of the engine bay.
• ⚡ Use a 10mm socket to loosen the negative (-) terminal clamp.
• ⚡ Wiggle the clamp off and tuck the cable aside so it cannot spring back to the post.
• ⚡ You can leave the positive connected; negative off is enough.

Step 3 – Access the Alternator 👀

The alternator on the 5.0L is on the front of the engine, upper passenger side.

• 🔎 Remove any plastic engine cover if fitted:
  • Usually pulls up off rubber grommets or has a few 8mm/10mm bolts.
• 🔎 If there’s an intake tube or resonator blocking access:
  • Loosen the hose clamps (usually 8mm) and unplug any sensors on the tube.
  • Lift the tube out and set aside.

Step 4 – Note the Belt Routing 🧵

• 📸 Look for the belt routing diagram sticker under the hood (often on the radiator support or fan shroud).
• 📸 If you don’t see one, take a clear photo of the belt path before removing it.

Step 5 – Release the Serpentine Belt 🌀

The belt tensioner is a spring-loaded pulley that keeps the belt tight.

• 🛠️ Find the tensioner pulley (small pulley on an arm, usually near the center/front).
• 🛠️ Insert your serpentine belt tool or long ratchet into the tensioner:
  • On this engine, it’s usually a 15mm bolt head on the tensioner.
• 🛠️ Rotate the tensioner clockwise (usually) to relieve tension. It will be stiff.
• 🛠️ While holding the tensioner, slide the belt off the alternator pulley only.
• 🛠️ Slowly release the tensioner back to its rest position.
• 🛠️ You don’t need to fully remove the belt from all pulleys if you’re careful, but many people pull it off the top pulleys for more room.

Step 6 – Disconnect Alternator Wiring 🔌

• 🔧 On the back of the alternator, locate:
  • Main power cable (thick wire with a nut)
  • Plug-in connector (small plastic plug)
• 🔧 Use a 10mm or 13mm socket (varies) to remove the nut on the main power stud.
• 🔧 Lift the cable off and set it aside. Don’t lose the nut or any washer.
• 🔧 Press the tab on the small connector and pull it straight off. If stuck, gently pry the tab with a small flat screwdriver, but don’t break it.

Step 7 – Remove the Alternator 🏗️

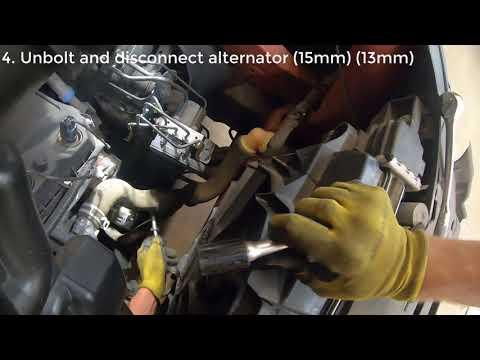

• 🛠️ Locate the alternator mounting bolts:
  • Typically 3 bolts (top and bottom) going into the front of the engine bracket.
  • Usually 13mm or 15mm heads.
• 🛠️ Remove the bolts one by one. Support the alternator with your hand as you remove the last bolt.
• 🛠️ Wiggle the alternator out of its bracket. It may be snug in the locating sleeves:
  • You can gently pry with a flat screwdriver at the ears, but don’t bend anything.
• 🛠️ Lift the alternator out of the engine bay.

Step 8 – Compare Old and New Alternator 🔍

• 📏 Check:
  • Mounting ears in the same positions
  • Electrical connector shape and location
  • Pulley diameter and number of grooves
  • Overall depth (so it lines up with the belt)
• 📏 If anything looks different, do not install—get the correct part.

Step 9 – Install the New Alternator 🧩

• 🛠️ Set the new alternator into the bracket, lining up the bolt holes.
• 🛠️ Start all mounting bolts by hand to avoid cross-threading.
• 🛠️ Tighten the bolts evenly, then torque to about 35–40 ft-lb.
• 🛠️ Reconnect the main power cable:
  • Install the cable on the stud, then the nut.
  • Tighten to about 7–8 ft-lb (snug, not gorilla tight).
• 🛠️ Plug in the small connector until it clicks.

Step 10 – Reinstall the Serpentine Belt 🪢

• 🧵 Route the belt according to the diagram/photo you took.
• 🧵 Make sure the belt sits in the grooves of every pulley—no ribs hanging off.
• 🧵 Use the belt tool/ratchet on the tensioner again:
  • Rotate the tensioner to relieve tension.
  • Slip the belt over the alternator pulley last.
  • Slowly release the tensioner.
• 🧵 Double-check every pulley by hand: the belt should be centered and fully seated.

Step 11 – Reinstall Intake Tube / Engine Cover 🧱

• 🔧 Refit any intake tube or resonator you removed:
  • Slide it back onto the throttle body and airbox.
  • Tighten hose clamps (snug, not crushing).
  • Reconnect any sensors you unplugged.
• 🔧 Reinstall the engine cover if removed (push onto grommets or reinstall bolts).

Step 12 – Reconnect Battery & Test ✅

• 🔋 Reconnect the negative (-) battery terminal and tighten the 10mm bolt (about 7–8 ft-lb).
• 🔋 Start the engine and watch the dash:
  • Battery/charging light should be off.
• 🔋 If you have a multimeter:
  • Measure voltage at the battery with engine running.
  • You should see around 13.5–14.5 volts.
• 🔋 Listen for any belt squeal or rubbing. If you hear noise, shut off and re-check belt routing.

Infotainment / Settings Notes 📱

• 📡 On your 2016 truck, alternator replacement does not require any special programming or menu changes.
• 📡 If the clock or radio presets reset after battery disconnect, just set them again through the Settings menu on the center screen.

Tips & Tricks 💡

• 💡 Take photos at each stage so you can reverse the process easily.
• 💡 If the belt is old, this is the perfect time to replace it—labor is basically the same.
• 💡 If you get a battery light after replacement, double-check:
  • Small plug fully seated
  • Main cable tight and clean
  • Belt routing and tension

Parts & Tools from HowToo 🛒

You’ll see recommended alternators, serpentine belts, belt tools, and torque wrenches from HowToo below this answer or in the Parts section on the left. You can add what you need to your cart directly from there.

If you’d like, tell me if you plan to replace the belt too, and I can add a quick belt-only checklist for your truck.
