🔧 Explorer - Alternator Replacement

The alternator charges your battery and powers the vehicle’s electrical system while the engine is running. On your Explorer, replacement is mostly about safe battery disconnect, removing the serpentine belt, unplugging the wiring, and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔸 Disconnect the negative battery cable before touching alternator wiring (prevents short circuits).
• 🔸 Support the SUV with jack stands if you lift it—never rely on a floor jack alone.
• 🔸 Keep hands/tools away from the radiator fan and belt path; the fan can start unexpectedly on some vehicles.
• 🔸 Work on a cool engine to avoid burns around the radiator and exhaust areas.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (inch-lb or low Nm range)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Battery terminal anti-corrosion protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and remove the key/fob from the vehicle area.
• Disconnect the battery: use a 10mm socket to remove the negative cable and tuck it aside so it can’t spring back.
• Serpentine belt tool = long handled wrench for belt tensioner.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Lift off the plastic engine cover by hand (it’s typically held by push grommets).
• Use a flathead screwdriver and 8mm socket to loosen/remove the air intake snorkel/ducting fasteners as needed for working room.
• Use a flashlight to locate the alternator and the serpentine belt routing label (usually on the radiator support). If there’s no label, take a clear photo before removing the belt.

Step 2: Lift the right-front corner (if needed for belt access)

• Use a floor jack (rated 3-ton minimum) at the proper front jacking point and raise the right-front corner.
• Place jack stands (rated 3-ton minimum) under the support point and lower the vehicle onto the stands.
• Remove the right-front wheel using a 1/2" drive breaker bar and the correct lug socket.
• During reassembly: Torque lug nuts to 183 Nm (135 ft-lbs).

Step 3: Remove the right-front inner splash shield

• Use a trim clip removal tool and 8mm socket to remove the clips/screws holding the passenger-side front inner fender liner (splash shield) section.
• Pull the liner back enough to access the belt and tensioner.

Step 4: Release belt tension and remove the serpentine belt from the alternator

• Install a serpentine belt tool (specialty) or 15mm socket on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest (don’t let it snap back).
• Tip: Keep belt routed on other pulleys if reusing.

Step 5: Disconnect alternator electrical connections

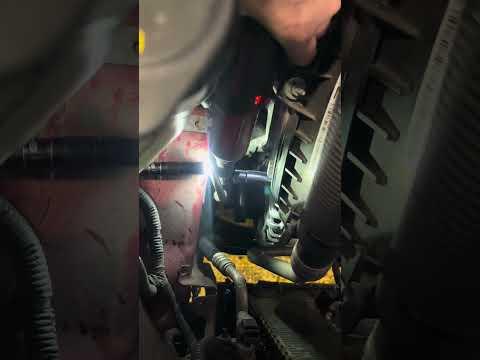

• From the top side, locate the alternator wiring.
• Unplug the alternator regulator connector by pressing the lock tab and pulling it straight off (use a flathead screwdriver gently if the tab is stubborn).
• Remove the alternator B+ cable nut using a 10mm socket, then lift the cable off.
• Reassembly target: Torque B+ terminal nut to 10 Nm (89 in-lbs).

Step 6: Remove the alternator mounting bolts

• Use a 13mm socket and 3/8" drive ratchet to remove the alternator mounting bolts.
• Support the alternator with your free hand as the last bolt comes out.
• Work the alternator out of the bracket and remove it from the engine bay.

Step 7: Install the new alternator

• Position the new alternator into the bracket and hand-start all mounting bolts using your fingers (prevents cross-threading).
• Tighten the bolts with a 13mm socket and then final-tighten with a 3/8" drive torque wrench.
• Assumption: Common 3.5L alternator mount torque is 35-45 Nm (26-33 ft-lbs); use the exact spec for your alternator/bracket if you have service data.

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and tighten using a 10mm socket to 10 Nm (89 in-lbs).
• Plug the regulator connector back in until it clicks.
• Make sure the wiring is clipped/positioned away from the belt and pulleys.

Step 9: Reinstall the serpentine belt

• Route the belt exactly like your photo/label.
• Use the serpentine belt tool (specialty) or 15mm socket to rotate the tensioner and slip the belt onto the alternator pulley last.
• Double-check the belt is fully seated in every pulley groove (a belt that’s “one rib off” will shred quickly).

Step 10: Reinstall splash shield and wheel

• Reposition the fender liner and reinstall clips/screws using a trim clip removal tool and 8mm socket.
• Reinstall the wheel, snug lug nuts in a star pattern, lower the vehicle, then use a 1/2" drive torque wrench to Torque lug nuts to 183 Nm (135 ft-lbs).

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Apply battery terminal anti-corrosion protectant after tightening.

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly with no wobble or squeal.
• Check charging voltage at the battery with a meter if available: typically about 13.5-14.8V while idling with light electrical load.
• Verify no battery/charging warning light stays on.
• Recheck for tools left in the engine bay and recheck belt seating after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
