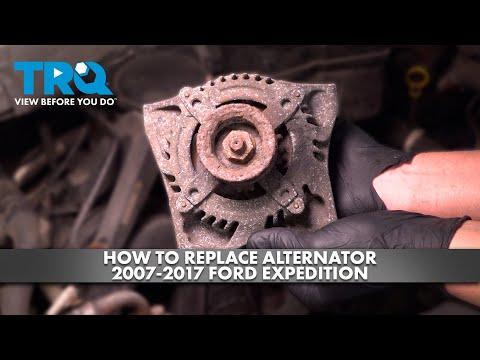

🔧 Expedition - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring.
• ⚠️ Keep hands/tools away from the belt path and cooling fan area.
• ⚠️ Work on a cool engine; the turbo/charge pipes and radiator area can burn you.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• Serpentine belt tool (specialty)
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench (10–150 Nm range)
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion washers or protectant - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any large jewelry (rings/watches) to avoid shorts.
• Use a 10mm socket to disconnect the battery negative terminal and move it aside so it can’t spring back.
• Tip: Take a photo of the belt routing sticker.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Lift off the engine cover (it pulls upward from rubber grommets).
• If your A/C intake duct blocks access, loosen clamps with an 8mm socket or flathead screwdriver and move the duct aside.

Step 2: Relieve serpentine belt tension

• Install a 15mm socket on the belt tensioner bolt, or use a serpentine belt tool (specialty) (a long handle made for releasing belt tension safely).
• Rotate the tensioner to release tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return—don’t let it snap back.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the lock tab and pulling straight off.
• Remove the protective rubber boot from the main power stud.
• Use a 10mm socket to remove the B+ cable nut from the alternator stud.
• Set the cable aside so it can’t touch metal.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand so it doesn’t drop.
• Use a 13mm socket, 3/8" ratchet, and extensions to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay. If it’s tight, gently reposition hoses/loom by hand—do not pry on plastic fittings.

Step 5: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a 13mm socket, then finish with a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 6: Reconnect alternator wiring

• Install the main B+ cable onto the alternator stud and thread the nut on by hand.
• Torque the B+ nut using a 10mm socket and torque wrench: Torque to 15 Nm (11 ft-lbs).
• Apply a small amount of dielectric grease (silicone grease that helps prevent corrosion) inside the connector seal, then plug the connector in until it clicks.
• Reinstall the rubber boot over the B+ stud.

Step 7: Reinstall the serpentine belt

• Route the belt exactly per the under-hood belt routing diagram.
• Use the 15mm socket or serpentine belt tool (specialty) to rotate the tensioner and slip the belt over the alternator pulley last.
• Visually confirm the belt is seated in every pulley groove.

Step 8: Reassemble and reconnect the battery

• Reinstall the intake duct (if removed) using an 8mm socket or flathead screwdriver to tighten clamps.
• Reinstall the engine cover.
• Reconnect the negative battery terminal using a 10mm socket.
• Install battery terminal protectant to reduce corrosion.

---

✅ After Repair

• Start the engine and confirm there are no squeals (belt misrouting usually squeals).
• Use a digital multimeter at the battery posts: running voltage should typically be about 13.5–14.7V.
• Check that the battery/charging warning light stays off.
• Recheck belt alignment after a short 5–10 minute test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
