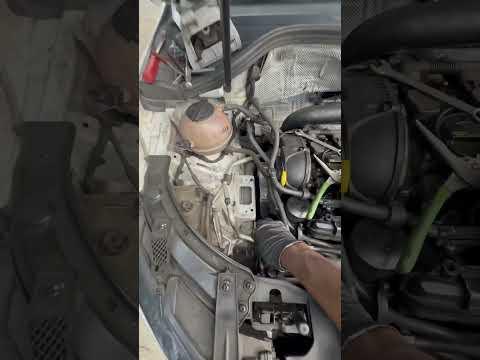

🔧 Q3 - Alternator Replacement

The alternator charges your battery and powers electrical systems while the engine runs. Replacing it involves removing the serpentine belt (the main accessory drive belt) and unbolting the alternator from the front of the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 2.0T alternator is front-accessible from engine bay.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent short circuits (the alternator main cable is always “hot” if the battery is connected).
• ⚠️ Let the engine cool; you’ll work near hot parts and the radiator fan can start unexpectedly.
• ⚠️ Keep fingers clear of the belt path; the belt tensioner is spring-loaded (it snaps back hard).
• ⚠️ If you raise the front of the Q3, support it with jack stands on solid ground—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10–200 Nm range)
• Socket set: 10mm, 13mm, 16mm
• Deep socket: 13mm
• Wrench: 16mm
• Torx bit set: T25, T30
• Flat trim tool
• Pick tool
• Flashlight
• Serpentine belt removal tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• If you’ll lift the Q3, place wheel chocks behind the rear wheels.
• Open the hood and remove jewelry (rings/watches can short electrical power).
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back onto the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Pull up firmly to remove the engine cover (it’s held by rubber grommets).
• Remove the intake ducting as needed using a Torx T25 or Torx T30 (fastener style varies by duct) and a flat trim tool for clips.
• Tip: Take a quick photo before disassembly.

Step 2: Locate the alternator and identify connections

• The alternator is belt-driven and has a large power cable on a stud (the B+ terminal, meaning the main battery-positive output) plus a small electrical plug.
• Use a flashlight to find the rear of the alternator and the routing of the belt.

Step 3: Release belt tension and remove the serpentine belt

• Place a 16mm wrench or the serpentine belt removal tool (specialty) on the belt tensioner bolt.
• Rotate the tensioner to relieve tension (the tensioner is a spring-loaded arm that keeps the belt tight).
• Slip the belt off the alternator pulley first, then slowly release the tensioner back.
• Remove the belt from the rest of the pulleys and set it aside.

Step 4: Disconnect alternator electrical connections

• Remove the protective cap over the alternator main terminal using a pick tool.
• Use a 13mm deep socket to remove the nut on the main power cable, then lift the cable off the stud.
• Unplug the small regulator connector by releasing the tab with a pick tool and pulling straight back.
• Tip: Don’t pry on the wires—only the connector body.

Step 5: Unbolt and remove the alternator

• Remove the alternator mounting bolts using a 16mm socket with a 3/8" drive ratchet and extensions as needed.
• Support the alternator with one hand while removing the last bolt so it doesn’t drop.
• Work the alternator out of the engine bay (you may need to move a hose/duct aside—use a flat trim tool for clips).
• Torque on installation (alternator mounting bolts): Torque to 45 Nm (33 ft-lbs)

Step 6: Install the new alternator

• Position the new alternator in place and start all mounting bolts by hand to avoid cross-threading.
• Tighten the bolts evenly using a 16mm socket, then finish with a torque wrench.
• Torque: Torque to 45 Nm (33 ft-lbs)

Step 7: Reconnect alternator wiring

• Reconnect the small electrical plug until it clicks.
• Install the main power cable onto the stud and tighten the nut using a 13mm deep socket and a torque wrench.
• Reinstall the protective cap over the terminal.
• Torque (B+ terminal nut): Torque to 15 Nm (11 ft-lbs)

Step 8: Reinstall the serpentine belt

• Route the new belt around all pulleys except the alternator pulley (match the belt path you photographed).
• Rotate the tensioner again using a 16mm wrench or serpentine belt removal tool (specialty), slip the belt onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are fully seated in every pulley groove using a flashlight.

Step 9: Reinstall intake ducting and engine cover

• Reinstall any ducts and fasteners using Torx T25 or Torx T30 as removed.
• Press the engine cover back onto its grommets until it seats.

Step 10: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque: Torque to 6 Nm (53 in-lbs)

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping (signs the belt isn’t seated correctly).
• Confirm the battery/charging warning light on the dash turns off after starting.
• With the engine running, check voltage at the battery with a multimeter if available; you should typically see roughly 13.5–14.8V.
• Re-check the alternator power cable is tight and the protective cap is installed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,250 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
