🔧 RDX - Alternator Replacement

The alternator charges the battery and powers the electrical system while your RDX is running. Replacing it involves disconnecting the battery, removing the serpentine belt (the single belt that drives multiple accessories), unplugging the wiring, and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock RDX with the 3.5L V6 and factory belt routing.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ Let the engine cool; you’ll be working near hot parts.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack.
• ⚠️ Keep fingers clear of the belt path; the tensioner is spring-loaded.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3/8" drive torque wrench (10-100 Nm range)
• 10mm socket
• 12mm socket
• 14mm socket
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• 14mm wrench
• Flat trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Open the hood and keep your key fob away from the vehicle.
• If you’ll lift the front end, use a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it from the battery post.
• Tuck the cable aside so it can’t spring back onto the terminal.

Step 2: Remove the engine cover and air intake duct (if it blocks access)

• Lift off the engine cover by hand (it’s held by rubber grommets).
• Use a flathead screwdriver to loosen hose clamps, then remove any intake ducting as needed.
• Unclip any plastic retainers using a flat trim clip tool.
• Take a quick photo before disconnecting hoses.

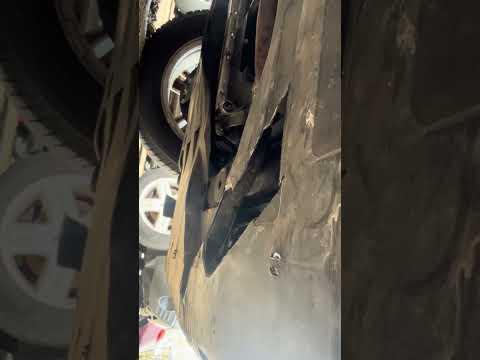

Step 3: Gain access from underneath (splash shield area)

• Lift the front of the RDX with a floor jack and set it on jack stands.
• Remove the lower splash shield fasteners using a flat trim clip tool and/or 10mm socket.

Step 4: Release the serpentine belt tension

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a 14mm socket with a 1/2" breaker bar to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Slowly release the tensioner to avoid a snap-back.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling straight back (use needle-nose pliers gently if needed).
• Remove the B+ terminal protective rubber boot.
• Use a 12mm socket to remove the B+ cable nut, then set the cable aside.
• On reassembly: Torque the B+ terminal nut to 9.8 Nm (7 ft-lbs).
• Apply a thin film of dielectric grease to the connector seal (not on the metal pin).

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand as you remove bolts.
• Use a 14mm socket, 3/8" drive ratchet, and a 6" extension to remove the alternator mounting bolts.
• If a bolt is tight, switch to a 1/2" breaker bar carefully to crack it loose, then finish with the ratchet.

Step 7: Remove the alternator

• Work the alternator out of the bracket and maneuver it out through the best opening (top or bottom, depending on access).
• If it feels stuck, wiggle it gently—do not pry hard on aluminum brackets.

Step 8: Install the new alternator

• Place the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Use a 14mm socket to snug the bolts evenly.
• Use a 3/8" drive torque wrench: Torque alternator mounting bolts to 44 Nm (33 ft-lbs).

Step 9: Reconnect wiring

• Reinstall the B+ cable and nut using a 12mm socket.
• Torque the B+ terminal nut to 9.8 Nm (7 ft-lbs) and reinstall the rubber boot.
• Plug in the alternator connector until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (follow the under-hood belt routing diagram).
• Use a 14mm socket with a 1/2" breaker bar to rotate the tensioner and slide the belt onto the alternator pulley last.
• Double-check the belt is fully seated in every pulley groove using a flashlight.

Step 11: Reinstall splash shield and intake pieces

• Reinstall the lower splash shield using the 10mm socket and flat trim clip tool.
• Reinstall the intake ducting and tighten clamps using a flathead screwdriver.
• Reinstall the engine cover by pressing it back onto the grommets.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque the battery terminal nut to 6 Nm (4 ft-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light turns off.
• Listen for belt squeal; if present, shut off and re-check belt seating.
• With a multimeter (if available), check charging voltage at the battery: typically about 13.5–14.8V with the engine running.
• Take a short 10-minute drive, then recheck for any loose clamps, tools left behind, or abnormal noises.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
