🔧 Camaro - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. On your Camaro, replacement mainly involves disconnecting the battery, removing the serpentine belt (the single belt that drives accessories), unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring (the main alternator cable is always “hot” if connected).
• ⚠️ Let the engine cool fully—working near the exhaust/catalyst area can burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt and pulleys when releasing the belt tensioner (spring-loaded arm).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 1/2" drive breaker bar
• Serpentine belt tool, 1/2" drive (specialty)
• Torque wrench (10–150 ft-lbs range)
• Metric socket set 8mm–18mm
• Metric wrench set 8mm–18mm
• E-Torx socket set E8–E18
• Ratchet, 3/8" drive
• Ratchet, 1/2" drive
• Socket extensions (3" and 6")
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Digital multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Dielectric grease - Qty: 1 (small packet/tube)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Pop the hood and note/rout a photo of the belt routing (belt path) before removing it. Phone photo saves mistakes.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back.
• If you need more access from below, raise the front with a floor jack and support with jack stands at the factory lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and ratchet, 3/8" drive to loosen the negative (-) battery terminal clamp.
• Lift the cable off and tuck it aside so it cannot touch the terminal.

Step 2: Remove the engine cover and intake ducting (as needed for access)

• If equipped, pull the engine cover up firmly by hand to release its grommets.
• Use a flathead screwdriver or 8mm–10mm socket (varies by clamp) to loosen the intake duct clamps.
• Use a trim clip remover to pop any plastic push-clips holding ducts or covers.
• Move the ducting aside to create a clear path to the alternator.

Step 3: Relieve serpentine belt tension and remove the belt from the alternator

• Locate the belt tensioner (spring-loaded pulley arm).
• Install a serpentine belt tool, 1/2" drive (specialty) or 1/2" drive breaker bar into the tensioner drive.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest. Don’t let it snap back.

Step 4: Disconnect the alternator electrical connections

• Unplug the alternator electrical connector: press the tab and pull straight out (use needle-nose pliers gently if needed).
• Remove the protective cap on the alternator output stud (B+).
• Use a metric wrench set 8mm–18mm or metric socket set 8mm–18mm (nut size varies by alternator) to remove the B+ cable nut, then remove the cable.
• Apply a small amount of dielectric grease to the connector seal during reassembly (keep grease off metal terminals).

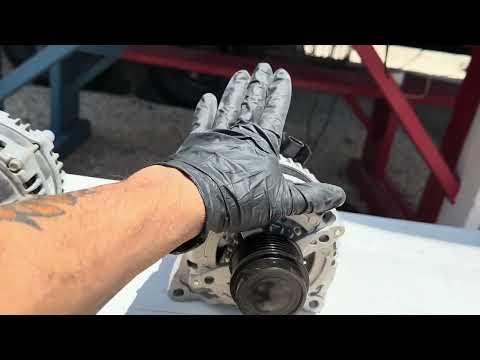

Step 5: Unbolt and remove the alternator

• Support the alternator by hand.
• Use a metric socket set 8mm–18mm and extensions (3" and 6") to remove the alternator mounting bolts.
• If your alternator uses E-Torx hardware, use an E-Torx socket set E8–E18 instead.
• Carefully maneuver the alternator out of the engine bay. If it feels stuck, check for a hidden bolt and gently wiggle it free—do not pry on plastic housings.

Step 6: Install the new alternator

• Place the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten the mounting bolts with a ratchet, 3/8" drive, then final-tighten with a torque wrench.
• Torque to GM specification for your Camaro’s alternator mounting fasteners (spec varies by bracket/fastener type).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and thread the nut on by hand.
• Tighten with a metric wrench set 8mm–18mm or metric socket set 8mm–18mm, then final-tighten with a torque wrench if your tool fits.
• Torque to GM specification for the alternator output (B+) nut (overtightening can crack the stud/insulator).
• Reinstall the protective cap, then plug in the electrical connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt exactly per your under-hood routing diagram (or the photo you took).
• Use the serpentine belt tool, 1/2" drive (specialty) or 1/2" drive breaker bar to rotate the tensioner and slip the belt back over the alternator pulley.
• Release the tensioner slowly.
• Visually confirm the belt is fully seated in every pulley groove.

Step 9: Reinstall intake ducting/engine cover

• Reposition intake ducting and tighten clamps with a flathead screwdriver or 8mm–10mm socket as equipped.
• Reinstall push-clips using the trim clip remover as needed.
• Press the engine cover back into place if equipped.

Step 10: Reconnect the battery and verify charging

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Start the engine and check for warning lights.
• Use a digital multimeter at the battery: you typically want a stable charging voltage (roughly mid-13V to mid-14V range) with the engine running.

---

✅ After Repair

• Listen for belt squeal or chirping; if present, shut off and re-check belt routing and seating.
• Recheck the alternator connector and B+ cap are fully installed.
• If a battery/charging warning remains, scan for codes with a compatible scan tool (many parts stores can do this).
• After a short test drive, do a quick visual check for any loose tools, wires, or belt misalignment.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹12,000-₹28,000 (parts only)

You Save: ₹6,000-₹12,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,200-₹2,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
