🔧 Grand Cherokee - Alternator Replacement

You’ll remove the serpentine belt, disconnect the wiring, and unbolt the alternator from the front of the engine, then install a new one. This restores proper charging so the battery stays healthy and electronics work correctly.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery terminal before working on the alternator to avoid sparks and short circuits.
• ⚠️ Let the engine cool completely before starting; hot components can burn you.
• ⚠️ Keep metal tools away from the battery positive terminal and alternator main stud.
• ⚠️ Support the hood securely; make sure it cannot fall while you work.
• ⚠️ If you must raise the front of the Grand Cherokee, always support it with jack stands, never only a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (5–80 ft-lbs)
• 1/2" drive torque wrench (20–150 ft-lbs)
• Serpentine belt tool or long 1/2" breaker bar
• Short extension set (3" and 6")
• Flathead screwdriver (medium)
• Trim clip removal tool
• Needle-nose pliers
• Shop light or headlamp
• Fender cover or thick towel
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (5.7L HEMI, correct amperage) - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator mounting bolts (optional new) - Qty: 3
• Battery terminal cleaning brush - Qty: 1
• Dielectric grease - Qty: 1
• Anti-seize compound - Qty: 1
• Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the Grand Cherokee on level ground, select Park, and set the parking brake.
• Open the hood fully and secure it with the hood prop or struts.
• Turn off all electrical loads (headlights, A/C, radio) and remove the key from the vehicle.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• If you want more working room, you can remove the engine cover by pulling it straight up off its mounts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

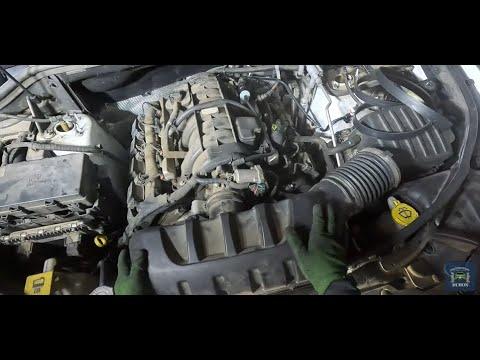

Step 1: Remove engine cover and air intake ducting

• Use your hands to lift the plastic engine cover straight up; it just presses onto rubber mounts.
• Use a flathead screwdriver to loosen the hose clamp at the air filter box and at the throttle body.
• Disconnect any small hoses or electrical connectors on the intake duct by squeezing the tabs with your fingers or needle-nose pliers.
• Lift the intake duct out and set it aside so you can see the front of the engine better.

Step 2: Note belt routing

• Look for the belt routing diagram sticker under the hood; if present, take a clear phone photo.
• If you do not see a sticker, take a clear photo of the belt routing from a few angles before removing it. This saves lots of time later

Step 3: Release belt tension

• The serpentine belt tensioner is a spring-loaded pulley; it keeps the belt tight automatically.
• Place your serpentine belt tool or long 1/2" breaker bar into the square hole on the tensioner arm.
• Rotate the tensioner slowly in the direction that loosens the belt (usually clockwise on the 5.7L when viewed from front).
• While holding the tensioner released, slide the belt off the alternator pulley using your other hand.
• Gently release the tensioner back to its resting position; do not let it snap back.

Step 4: Remove the serpentine belt (optional but recommended)

• With the tension relieved, slip the belt off the remaining pulleys by hand.
• Inspect the belt for cracks, glazing, or missing ribs; if worn, replace it with the new one you bought.
• Set the belt aside in the same general shape as installed so routing is easy later.

Step 5: Disconnect alternator electrical connections

• Locate the large cable on the back of the alternator (this is the main charging cable).
• Use a 13mm socket and 3/8" ratchet to remove the nut holding the cable to the stud.
• Pull the cable eyelet off the stud and tuck it aside. Do not twist the stud itself
• Locate the smaller electrical connector on the alternator; press the locking tab with your finger and pull the plug straight off.
• If the tab is stubborn, gently lift it with a flathead screwdriver while pulling.

Step 6: Remove alternator mounting bolts

• Find the upper and lower alternator mounting bolts at the front of the alternator.
• Use a 15mm socket with 3/8" ratchet (or 1/2" ratchet if tight) to loosen and remove the bolts.
• There are typically two upper bolts and one lower bolt on the 5.7L bracket. Keep track of their positions.
• If a bolt is tight, use a longer ratchet or add a pipe to the handle for more leverage, but turn steadily, not in jerks.

Step 7: Remove the alternator from the engine

• Once the bolts are out, the alternator may still be snug in its mounting ears.
• Wiggle the alternator by hand front to back to break it free.
• If needed, gently pry between the alternator and bracket with a flathead screwdriver; do not damage aluminum surfaces.
• Lift the alternator up and out of the engine bay; it is heavy, so use two hands and keep it close to your body.

Step 8: Prepare the new alternator

• Compare the old and new alternators side by side to confirm the same mounting ears, pulley type, and electrical connections.
• Lightly coat the new alternator mounting ears where the bolts pass through with a small amount of anti-seize compound. This helps future removal
• Place a tiny amount of dielectric grease inside the electrical connector opening on the new alternator to help prevent corrosion.

Step 9: Install the new alternator

• Carefully lower the new alternator into position on the bracket.
• Align the bolt holes by gently wiggling the alternator by hand.
• Install the mounting bolts by hand first to avoid cross-threading.
• Once all bolts are started a few turns by hand, use a 15mm socket and 3/8" ratchet to snug them down evenly.
• Then use your 3/8" drive torque wrench with 15mm socket to tighten the alternator mounting bolts to 54 Nm (40 ft-lbs).

Step 10: Reconnect alternator wiring

• Push the small electrical connector straight onto the alternator until it clicks.
• Place the large cable eyelet back over the main alternator stud.
• Install the nut by hand, then use a 13mm socket and 3/8" ratchet to snug it.
• Use the 3/8" drive torque wrench with 13mm socket to tighten the nut to 17 Nm (13 ft-lbs). Do not overtighten; you can damage the stud

Step 11: Reinstall the serpentine belt

• Route the belt around the crankshaft pulley, A/C, power steering, and idler pulleys according to your photo or diagram, leaving the alternator pulley for last.
• Make sure the belt ribs sit centered in each pulley groove.
• Use the serpentine belt tool or 1/2" breaker bar on the tensioner again and rotate it to release tension.
• While holding the tensioner, slide the belt over the alternator pulley with your other hand.
• Slowly release the tensioner so it tightens the belt.
• Double-check from above and below that the belt is in all grooves correctly and not twisted.

Step 12: Reinstall air intake ducting and engine cover

• Position the intake duct back between the air box and the throttle body.
• Slide the duct ends fully onto their connections, then tighten the clamps using a flathead screwdriver.
• Reconnect any small hoses or electrical connectors you removed earlier.
• Align the engine cover over its rubber mounts and press down firmly at each corner until it clicks into place.

Step 13: Reconnect the battery

• Clean the battery terminals with the battery terminal cleaning brush if you see corrosion.
• Place the negative cable back on the negative terminal.
• Use a 10mm socket and 3/8" ratchet to tighten the clamp; it should be snug but not crushing the post.
• Give the cable a slight twist by hand to confirm it does not move.

---

✅ After Repair

• Start the engine and let it idle. Check that the battery light on the dash turns off after a few seconds.
• Look and listen under the hood: the belt should run smoothly with no squealing or wobbling pulleys.
• Use a multimeter at the battery if available: you should see around 13.5–14.7 volts with the engine running.
• Turn on headlights, blower fan, and rear defroster; voltage should stay above about 13 volts.
• After a short drive, recheck the belt position and the alternator area for any unusual noises.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$950 (parts + labor)

DIY Cost: $250–$450 (parts only)

You Save: $400–$500 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
