🔧 Tucson - Alternator Replacement

I can walk you through replacing the alternator on your Tucson, but Hyundai uses different mounting/fastener setups depending on drivetrain and there are specific torque specs you should follow to avoid belt noise, bracket damage, or loose connections.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ Keep hands/tools away from the belt path; fingers can get pulled in.
• ⚠️ Work on a cold engine; the exhaust and radiator area can burn you.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–150 ft-lbs)
• 3/8" breaker bar
• Serpentine belt tool (specialty)
• Flat trim tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and plan to disconnect the battery: use a 10mm socket on the negative terminal.
• Take a photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm a couple details (needed for exact steps/torques)

• Is your Tucson FWD or AWD? (This changes underbody access and bracket layout.)
• Can you upload a quick photo of the alternator area (top view is fine)? (This lets me match the exact fasteners and provide the correct Hyundai torque specs.)

Step 2: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal nut.
• Lift the negative cable off and tuck it aside so it can’t spring back.

Step 3: Raise the front (if needed for access)

• Use a floor jack (rated 3-ton minimum) at the front jack point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and keep the wheel chocks in place.

Step 4: Remove any lower splash shield (if equipped)

• Use a flat trim tool and needle-nose pliers to remove plastic clips.
• Use a 10mm socket for any small bolts holding the shield.

Step 5: Release belt tension and remove the belt from the alternator pulley

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Don’t let the tensioner snap back.

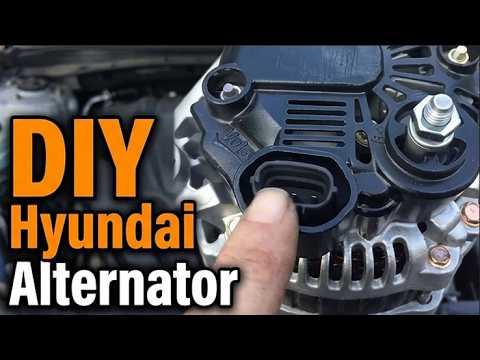

Step 6: Unplug alternator electrical connections

• Unclip the alternator connector by hand; use a flat trim tool gently if stuck.
• Remove the power cable nut with a 12mm socket (common size) and move the cable aside.
• Keep the nut with the cable.

Step 7: Remove the alternator mounting bolts

• Use a 14mm socket with a 3/8" ratchet (and 3/8" breaker bar if tight) to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.

Step 8: Remove the alternator from the engine bay

• Work it out slowly; you may need to rotate it to clear hoses and the radiator fan area.
• Use a work light to avoid snagging wires.

Step 9: Install the new alternator

• Set the alternator in place and start all mounting bolts by hand.
• Use a 14mm socket to snug the bolts evenly.
• Use a 3/8" torque wrench to torque the mounting bolts: Torque to (pending your FWD/AWD + alternator bracket match)

Step 10: Reconnect electrical connections

• Install the main power cable and nut using a 12mm socket, then torque: Torque to (pending match)
• Plug in the alternator connector until it clicks.

Step 11: Reinstall the belt

• Route the belt per your photo; use a serpentine belt tool (specialty) to move the tensioner.
• Slip the belt onto the alternator pulley last, then release the tensioner slowly.

Step 12: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield with the 10mm socket and clips using the flat trim tool.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower fully.

Step 13: Reconnect the battery

• Reinstall the negative terminal and tighten with a 10mm socket.

---

✅ After Repair

• Start your Tucson and confirm the charging warning light turns off.
• Listen for belt squeal; if you hear squeal, recheck belt routing and that the belt is fully seated in all pulleys.
• If you have a multimeter, check charging voltage at the battery with engine running (typical charging is around 13.5–14.8V).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$650 (parts only)

You Save: $370-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
