🔧 Grand Cherokee - Alternator Replacement

Replacing the alternator on your Grand Cherokee involves removing the serpentine belt, disconnecting the battery power cable and electrical connector, then unbolting the alternator from the front of the 5.7L HEMI engine. The alternator charges the battery and powers the electrical system while the engine is running.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring to prevent sparks or electrical damage.
• ⚠️ Let the engine cool completely. The alternator sits near hot engine components.
• ⚠️ Keep fingers clear of the serpentine belt path. The belt tensioner is spring-loaded and can snap back.
• ⚠️ Do not pry on the alternator housing with force. Aluminum brackets can crack.
• ⚠️ If the battery warning light stays on after replacement, stop driving and recheck connections.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 8mm wrench
• 10mm wrench
• 13mm wrench
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• 3/8-inch drive extension 6-inch
• Serpentine belt tool 15mm (specialty)
• Flat-blade screwdriver
• Torque wrench 10-100 ft-lbs
• Battery terminal brush
• Digital multimeter
• Mechanic gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protector spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Grand Cherokee on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool for at least 30-60 minutes before working near the belt drive.
• 🔋 Open the hood and locate the battery connection points. On this Grand Cherokee, the main battery is under the passenger front seat, but the under-hood jump post and ground point can be used for basic voltage checks.
• 📸 Take a clear photo of the serpentine belt routing before removing the belt. This helps during reinstallation.
• 🧰 A serpentine belt tool is a long, thin handle used to rotate the spring-loaded belt tensioner in tight spaces.
• 🔌 A digital multimeter is a small electrical tester used to check battery and charging voltage.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect Battery Power

• Use an 8mm wrench or 10mm wrench to loosen the negative battery cable at the battery under the passenger front seat.
• Move the negative cable away from the battery post so it cannot accidentally touch.
• If accessing the battery under the seat, slide the passenger seat fully rearward, lift the battery access cover, then disconnect the negative terminal.
• Always disconnect negative first.

Step 2: Remove the Engine Cover

• Use both hands to lift the plastic engine cover straight upward from its rubber mounting grommets.
• Set the cover aside where it will not get stepped on.

Step 3: Record the Belt Routing

• Use your phone to take a photo of the serpentine belt path around the alternator, crankshaft pulley, water pump, idlers, and tensioner.
• Compare your photo to the belt routing decal in the engine bay if present.
• The serpentine belt is the single long ribbed belt that drives the alternator and other engine accessories.

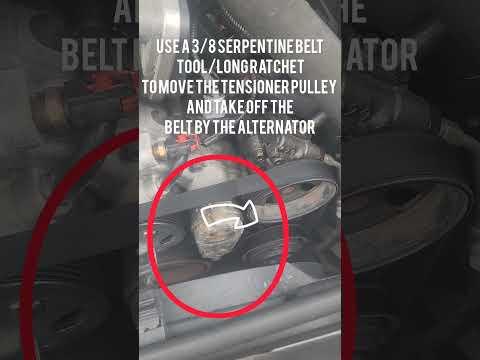

Step 4: Release Serpentine Belt Tension

• Place the serpentine belt tool 15mm or 15mm socket with 1/2-inch drive ratchet on the belt tensioner bolt.
• Rotate the tensioner clockwise slowly to remove tension from the belt.
• While holding the tensioner back, slip the belt off the alternator pulley by hand.
• Slowly release the tensioner back to its resting position.
• Do not let the tool snap back.

Step 5: Remove the Serpentine Belt

• Pull the belt out from the pulleys by hand.
• If reusing the belt temporarily, mark the belt rotation direction with a marker before removal.
• Inspect the belt for cracks, missing ribs, glazing, or frayed edges. Replace it if any damage is found.

Step 6: Disconnect the Alternator Electrical Connector

• Locate the small electrical connector on the rear of the alternator.
• Use a flat-blade screwdriver gently to lift the locking tab if needed.
• Pull the connector straight off by the connector body, not by the wires.
• Plastic tabs get brittle with heat.

Step 7: Remove the Alternator Battery Cable

• Flip open the protective rubber boot on the large alternator output stud.
• Use a 13mm socket with 3/8-inch drive ratchet to remove the retaining nut from the output cable.
• Lift the cable off the stud and move it aside.
• Keep the nut in a safe place if the replacement alternator does not include one.

Step 8: Remove the Alternator Mounting Bolts

• Use a 15mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension 6-inch to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the final bolt.
• Lift the alternator out of the bracket carefully.
• If it feels stuck, rock it gently by hand. Do not hammer the aluminum housing.

Step 9: Compare the New Alternator

• Place the old and new alternators side by side on a bench.
• Check that the pulley, electrical connector, mounting ears, and output stud location match.
• Spin the new pulley by hand. It should turn smoothly without grinding.

Step 10: Install the New Alternator

• Set the new alternator into the mounting bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 15mm socket and 3/8-inch drive ratchet to snug the bolts evenly.
• Use a torque wrench 10-100 ft-lbs with 15mm socket to tighten the alternator mounting bolts to Torque to 54 Nm (40 ft-lbs).

Step 11: Reconnect the Alternator Battery Cable

• Apply a small amount of dielectric grease around the protective boot area, not between the metal cable eyelet and stud.
• Place the output cable onto the alternator stud.
• Use a 13mm socket and torque wrench 10-100 ft-lbs to tighten the output nut to Torque to 13 Nm (115 in-lbs).
• Push the rubber protective boot fully over the stud.

Step 12: Reconnect the Electrical Connector

• Push the small electrical connector onto the alternator until it clicks.
• Gently tug the connector by hand to confirm it is locked.

Step 13: Install the Serpentine Belt

• Route the belt by hand around all pulleys except the alternator pulley, using your photo as a guide.
• Make sure the ribbed side of the belt sits in ribbed pulleys and the smooth side touches smooth pulleys.
• Use the serpentine belt tool 15mm or 15mm socket with 1/2-inch drive ratchet to rotate the tensioner clockwise.
• Slip the belt over the alternator pulley by hand.
• Slowly release the tensioner.
• Check every pulley to confirm the belt ribs are seated correctly.
• One rib off can shred the belt.

Step 14: Reinstall the Engine Cover

• Line up the engine cover with the rubber grommets.
• Press down firmly by hand until the cover seats fully.

Step 15: Reconnect the Battery

• Use a battery terminal brush to clean the negative battery terminal if corrosion is present.
• Reconnect the negative battery cable.
• Use an 8mm wrench or 10mm wrench to tighten the terminal clamp snugly.
• Apply battery terminal protector spray after the clamp is tight.
• Do not overtighten the clamp. It only needs to be secure and unable to twist by hand.

Step 16: Check Charging Voltage

• Set the digital multimeter to DC volts.
• Place the red meter lead on the under-hood positive jump post and the black lead on a clean engine ground or negative jump point.
• With the engine off, a healthy battery should usually read about 12.4-12.7 volts.
• Start the engine and check voltage again. Normal charging voltage should be about 13.5-14.8 volts.
• If voltage is still near 12 volts with the engine running, turn the engine off and recheck the alternator connector, output cable, belt routing, and battery connection.

---

✅ After Repair

• ✅ Start the engine and watch the belt for 30 seconds. It should run straight and smoothly with no wobble or squeal.
• ✅ Check that the battery warning light turns off after the engine starts.
• ✅ Turn on headlights, blower fan, rear defroster, and radio. Charging voltage should remain stable.
• ✅ Recheck the alternator output cable boot and connector after the first short drive.
• ✅ If the battery was weak or repeatedly discharged, fully charge and test the battery. A bad battery can damage a new alternator.
• ✅ Reset clock, one-touch windows, and radio presets if they lost memory after the battery disconnect.

---
