🔧 X1 - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt, unbolting the alternator, and reinstalling everything in the correct order.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

Assumption: your X1 has the common N20 2.0T layout; fastener styles may vary slightly.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the alternator power cable (B+). That cable is always “live” and can short to ground.
• ⚠️ Let the engine cool fully; the turbo/engine area gets very hot.
• ⚠️ Support the vehicle on jack stands before working underneath—never rely on a jack.
• ⚠️ Keep fingers clear of the belt path; the tensioner is spring-loaded.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 16mm socket
• E10 external Torx socket
• E12 external Torx socket
• T20 Torx bit socket
• T25 Torx bit socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• 6" extension (3/8" drive)
• Trim clip removal tool
• Flat-blade screwdriver
• Serpentine belt tool (specialty)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the tailgate and access the battery area (in the rear cargo area on your X1).
• Disconnect the battery negative terminal using a 10mm socket. (The negative terminal is the “-” side.)
• If your negative cable has an IBS sensor (battery sensor), do not pry on it—only loosen the clamp nut and remove the cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake ducting

• Pull up the engine cover to release the rubber grommets (no tools on most setups). If it’s tight, work corner-by-corner.
• Remove the intake snorkel/duct clips using a trim clip removal tool and/or flat-blade screwdriver.
• Loosen any intake hose clamps you need for access using an 8mm socket.

Step 2: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine undertray screws using a T20 Torx bit socket and T25 Torx bit socket.
• Set the undertray aside where it won’t get stepped on.

Step 3: Take a quick belt routing reference

• Use your work light and take a photo of the serpentine belt path.
• This saves you big time later.

Step 4: Release the serpentine belt tension and remove the belt

• Place a 16mm socket on the belt tensioner bolt and turn it to relieve tension.
• If access is tight, use a serpentine belt tool (specialty) (a long, thin handle made for belt tensioners).
• Slip the belt off the alternator pulley first, then remove the belt from the other pulleys.

Step 5: Disconnect alternator electrical connections

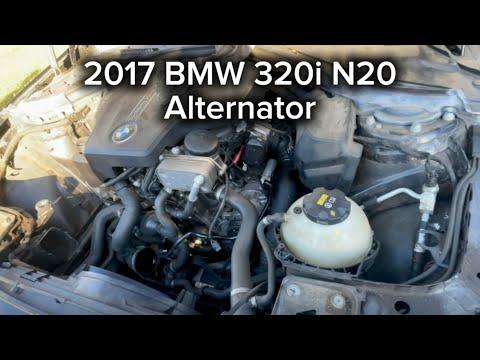

• Locate the alternator at the front/side of the engine. Unplug the small electrical connector by pressing the tab and pulling straight off.
• Remove the protective cap over the alternator B+ terminal using a flat-blade screwdriver.
• Remove the B+ cable nut using a 13mm socket, then lift the cable off and move it aside so it cannot touch metal.
• Torque on install: B+ terminal nut Torque to 14 Nm (10 ft-lbs)

Step 6: Unbolt and remove the alternator

• Remove the alternator mounting bolts using an E12 external Torx socket with a 3/8" drive ratchet and 6" extension (3/8" drive).
• Support the alternator with one hand as the last bolt comes out.
• Wiggle the alternator free and remove it from the engine bay (you may need to rotate it slightly to clear nearby hoses).
• Torque on install: Alternator mounting bolts Torque to 45 Nm (33 ft-lbs)

Step 7: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand (prevents cross-threading).
• Tighten the bolts evenly using an E12 external Torx socket.
• Final tighten using a 3/8" drive torque wrench (10–100 Nm range): Torque to 45 Nm (33 ft-lbs).

Step 8: Reconnect wiring

• Install the B+ cable and tighten the nut using a 13mm socket: Torque to 14 Nm (10 ft-lbs).
• Reinstall the protective cap over the B+ terminal.
• Reconnect the small alternator plug until it clicks.

Step 9: Install the serpentine belt

• Route the belt using your photo as reference.
• Relieve tension with a 16mm socket (or serpentine belt tool (specialty)) and slip the belt onto the last pulley.
• Double-check every rib is seated correctly in every pulley groove.

Step 10: Reinstall the undertray and intake pieces

• Reinstall the splash shield using a T20 Torx bit socket and T25 Torx bit socket.
• Lower the vehicle safely (use the floor jack and remove jack stands).
• Reinstall intake ducting and clamps using an 8mm socket as needed.
• Reinstall the engine cover by pressing it down onto the grommets.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Make sure the clamp is fully seated and tight (do not overtighten).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• With the engine running, check charging voltage at the jump posts or battery: you should typically see about 13.5–14.8V.
• Listen for belt squeal or slapping. If you hear it, shut the engine off and re-check belt routing.
• If a charging/voltage fault code remains stored, clear it with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $550-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
