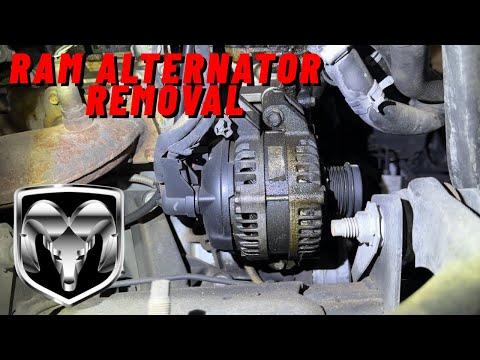

🔧 1500 - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt (the single long belt that drives multiple accessories), unbolting the alternator, and reinstalling everything with the correct belt routing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short at the alternator power stud.
• ⚠️ Work on a cool engine; the radiator, hoses, and engine parts can burn you.
• ⚠️ Keep fingers and tools away from the belt path; the tensioner is spring-loaded.
• ⚠️ Support the truck securely if you raise it; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs)
• 1/4" drive ratchet
• 1/4" drive torque wrench (in-lb capable)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm, 15mm
• 3" extension (3/8" drive)
• 6" extension (3/8" drive)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked or glazed)
• Dielectric grease - Qty: 1 (small packet is enough)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and take a quick photo of the serpentine belt routing sticker (usually on the radiator support). If there’s no sticker, sketch the routing before removing the belt.
• Assumption: This is the standard 3.6L Pentastar layout; minor bracket/fastener access can vary.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Remove the negative cable and tuck it aside so it cannot spring back onto the battery post.

Step 2: Remove intake ducting (as needed for access)

• Use a flat blade screwdriver to loosen the hose clamps on the air intake tube.
• Use a trim clip removal tool to pop any plastic push-clips holding the duct or resonator in place.
• Lift the ducting out and set it aside.

Step 3: Relieve tension and remove the serpentine belt

• Use a serpentine belt tool (specialty) (a long handled tool made to rotate the belt tensioner safely) on the belt tensioner bolt head.
• Rotate the tensioner to release belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.
• If reusing the belt, leave it routed on the other pulleys to avoid misrouting.

Step 4: Unplug the alternator electrical connector

• Locate the small alternator plug (field/control connector).
• Press the lock tab and pull the connector straight off. Use a flat blade screwdriver gently if the lock is stubborn.
• Apply a thin smear of dielectric grease to the seal on reassembly. Helps prevent corrosion.

Step 5: Remove the main alternator power cable (B+)

• Remove the protective rubber boot from the alternator power stud.
• Use a 13mm socket with a 3/8" drive ratchet to remove the nut from the power stud.
• Lift the cable off and position it so it cannot touch metal.
• Torque to 13 Nm (115 in-lbs) when reinstalling the nut.

Step 6: Remove the alternator mounting bolts

• Use a 15mm socket, 3/8" drive ratchet, and a 6" extension to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt so it doesn’t drop.
• Torque to 41 Nm (30 ft-lbs) for the alternator mounting bolts during installation.

Step 7: Remove the alternator from the engine bay

• Work the alternator out of the bracket and up/out through the top if space allows.
• If clearance is tight, safely raise the front using a floor jack (rated 3-ton minimum), set it on jack stands (rated 3-ton minimum), and access from below.

Step 8: Install the new alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first to prevent cross-threading.
• Use a 15mm socket and 3/8" drive torque wrench to tighten mounting bolts: Torque to 41 Nm (30 ft-lbs).

Step 9: Reconnect alternator wiring

• Install the main power cable on the stud and thread the nut on by hand.
• Use a 13mm socket and 1/4" drive torque wrench (or in-lb capable torque wrench) to tighten: Torque to 13 Nm (115 in-lbs).
• Reinstall the rubber boot fully over the stud.
• Plug in the alternator connector until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt exactly per the under-hood diagram (or your photo).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt over the alternator pulley.
• Double-check the belt is seated in every pulley groove (not riding on an edge). Misrouting can shred the belt.

Step 11: Reinstall intake ducting

• Reinstall the intake tube/ducting in the same orientation.
• Use a flat blade screwdriver to tighten hose clamps.
• Reinstall any push-clips using the trim clip removal tool as needed.

Step 12: Reconnect the battery

• Reconnect the negative terminal and tighten with a 10mm wrench.
• Make sure the clamp is snug and does not rotate on the post.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping. If you hear it, shut off and re-check belt routing and seating.
• With the engine idling, check charging voltage at the battery with a multimeter (if available): typically about 13.5–14.7 volts.
• Verify the battery/charging warning light is off.
• Do a short test drive, then recheck that the belt is still centered on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
