🔧 Edge - Alternator Replacement

The alternator charges your battery and powers the vehicle while the engine is running. On your Edge, the alternator sits low on the engine, so the job is mostly about safe access, removing the serpentine belt, and swapping the unit.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable before touching alternator wiring.
• 🧯 Let the engine cool completely; you’ll work near hot components.
• 🧱 Support the Edge on jack stands; never rely on a floor jack alone.
• ⚡ Do not short the alternator B+ terminal to ground; it’s always “battery hot” if connected.
• 🧤 Wear safety glasses and gloves when working under the vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set (8mm, 10mm, 13mm, 15mm)
• Wrench set (10mm, 13mm)
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Flathead screwdriver
• Torque wrench (20–250 Nm range)
• Work light
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is worn)
• Accessory drive belt fasteners/clips (assortment) - Qty: 1 (only if any break)

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and remove the key/fob from the vehicle.
• Open the hood and take a picture of the belt routing diagram (usually on a sticker). Photos save headaches.
• Plan for under-vehicle access: you’ll remove the right-front wheel and the splash shield.
• Battery disconnect: use a 10mm wrench to loosen the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Lift the cable off the battery post and tuck it aside so it cannot touch the post again.

Step 2: Raise the right-front corner and remove the wheel

• Chock the rear wheels using wheel chocks.
• Use a 21mm socket and breaker bar to crack the lug nuts loose 1/2 turn while the tire is on the ground.
• Lift using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and remove the wheel.
• During reassembly: Torque to 203 Nm (150 ft-lbs).

Step 3: Remove the right-front splash shield/inner fender access

• Use a flat trim clip tool to pop out push-clips without breaking them.
• Remove any small screws with an 8mm socket (some fasteners may vary).
• Peel the liner back enough to access the belt and alternator area.

Step 4: Remove the intake ducting (top-side access help)

• Use a flathead screwdriver to loosen intake hose clamps.
• Use an 8mm socket or 10mm socket (varies by clamp/retainer) to remove any intake duct bolts/clips.
• Lift the intake duct/air inlet pieces out for more working room.

Step 5: Release serpentine belt tension

• From the wheel well, place the serpentine belt tool (specialty) on the belt tensioner hex.
• Rotate the tensioner to relieve belt tension (steady pressure).
• Slip the belt off the alternator pulley first, then slowly let the tensioner return.
• Don’t let the tensioner snap back.

Step 6: Disconnect alternator electrical connections

• Locate the alternator electrical plug and locking tab.
• Use a flathead screwdriver gently if needed to lift the lock, then unplug the connector by hand.
• Remove the B+ terminal protective cap.
• Use a 10mm socket or 13mm socket (varies by terminal nut) to remove the main power cable nut, then move the cable aside.

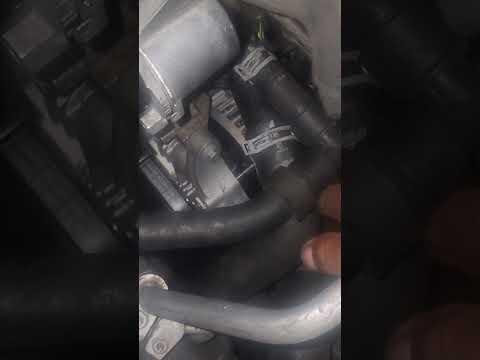

Step 7: Unbolt and remove the alternator

• Support the alternator with one hand while removing bolts.
• Use a 13mm socket and ratchet to remove the alternator mounting bolts.
• If the alternator is stuck in its bracket, wiggle it free by hand; avoid prying hard on aluminum surfaces.
• Maneuver the alternator out through the wheel well opening (this is usually the easiest exit path).

Step 8: Install the new alternator

• Compare the new and old alternator: pulley alignment, plug, and mounting ears should match.
• Place the alternator into position by hand.
• Start all mounting bolts by hand first to prevent cross-threading.
• Use a 13mm socket to tighten evenly.
• Torque to the Ford service specification for your alternator mounting bolts using a torque wrench.

Step 9: Reconnect alternator wiring

• Install the main B+ cable and nut using a 10mm socket or 13mm socket (whichever fits your terminal).
• Reinstall the protective cap over the B+ terminal.
• Plug in the alternator connector until it clicks/locks.
• Torque the B+ terminal nut to the Ford service specification using a torque wrench (do not overtighten).

Step 10: Reinstall the serpentine belt

• Route the belt exactly per the underhood routing diagram (or your photo).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Visually confirm the belt is seated in every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reposition the liner and reinstall clips using a flat trim clip tool.
• Reinstall any screws with an 8mm socket.
• Reinstall the wheel and hand-start lug nuts.
• Lower the vehicle, then use a torque wrench to Torque to 203 Nm (150 ft-lbs).

Step 12: Reconnect the battery

• Install the negative terminal and tighten using a 10mm wrench.
• Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping; shut off and recheck belt seating if you hear noise.
• Use a digital multimeter at the battery: engine running should typically show about 13.5–14.8V.
• Turn on headlights and rear defrost; voltage should stay stable (not drop into the 12s for long).
• If you had a battery/charging warning light before, verify it stays off after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
