🔧 Tucson - Alternator Replacement

On your Tucson, the alternator charges the battery and powers the electrical system while the engine runs. Replacing it means removing the drive belt from the alternator pulley, disconnecting the alternator wiring, unbolting the alternator, then reinstalling and re-tensioning the belt.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring (the main cable is always “hot”).
• ⚠️ Let the engine cool; you’ll work near hot parts.
• ⚠️ Support the vehicle securely on jack stands if you raise it; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt and pulleys.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-100 ft-lbs range)
• 3/8" breaker bar
• 3" extension (3/8")
• 6" extension (3/8")
• Serpentine belt tool 3/8" drive
• Flat trim tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Replace if cracked/glazed
• Belt tensioner assembly - Qty: 1 Optional if weak/noisy

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back.
• If you’ll access from below, raise the front safely with a floor jack and support with jack stands.
• Take a photo of belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove any upper engine cover (if equipped)

• Lift the cover off by hand, or use a flat trim tool to pop up retaining clips (if present).

Step 2: Relieve serpentine belt tension

• Place a serpentine belt tool 3/8" drive (or 3/8" breaker bar) into the belt tensioner’s square drive.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest.

Step 3: Disconnect alternator electrical connections

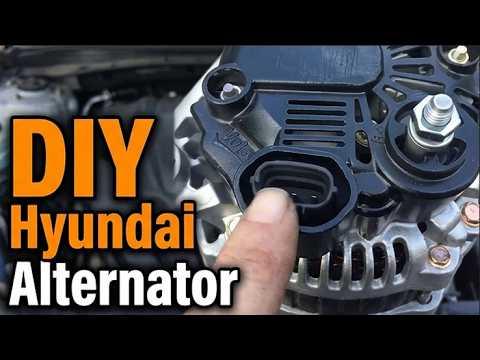

• Unplug the alternator connector by pressing the lock tab and pulling straight back (use needle-nose pliers gently if needed).
• Remove the rubber boot on the alternator output stud, then remove the nut with a 12mm socket and lift off the main power cable.
• Do not pry on the plastic connector.

Step 4: Remove the alternator mounting bolts

• Support the alternator by hand.
• Remove the alternator mounting bolts using a 14mm socket, 3/8" ratchet, and a 6" extension (3/8") as needed.
• If the alternator is tight in the bracket, wiggle it free by hand—avoid using force on the pulley or case.

Step 5: Remove the alternator from the engine bay

• Lift the alternator out from the top if there’s room.
• If access is limited, remove the lower splash shield fasteners using a flat trim tool, then guide the alternator out from below.

Step 6: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts evenly using a 14mm socket and 3/8" ratchet.
• Final-tighten using a 3/8" torque wrench (10-100 ft-lbs range).
• Torque to OEM spec (see note below).

Step 7: Reconnect alternator wiring

• Install the main output cable and nut using a 12mm socket, then reinstall the rubber boot.
• Plug in the alternator connector until it clicks.
• Torque to OEM spec for the output stud nut (see note below).

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram (or your photo).
• Use the serpentine belt tool 3/8" drive to move the tensioner, slide the belt onto the alternator pulley last, then release the tensioner slowly.
• Visually confirm the belt is fully seated in every pulley groove.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

Important note about torque specs: I can finish this with exact factory torque values, but I need one quick detail first because Hyundai used more than one alternator/bracket setup on this platform.

• Do you have the alternator already? If yes, what brand/label amperage is on it (example: 110A/130A/150A)?
• Will you be removing it from the top only, or are you okay accessing from below (splash shield off)?

---

✅ After Repair

• Start the engine and confirm the charging warning light is off.
• Listen for belt squeal or chirping; if present, re-check belt routing and seating.
• If you have a multimeter, check battery voltage at idle: typically around 13.5–14.8V with accessories off.
• Recheck the alternator main cable boot is fully covering the stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
