🔧 Cruze - Alternator Replacement

The alternator charges the battery and powers your Cruze’s electrical system while the engine runs. Replacing it means disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock alternator layout on the 1.4L turbo.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching alternator wiring.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers/clothes clear of the belt path and pulleys.
• ⚠️ Let the engine cool; the turbo/nearby parts can be very hot.
• ⚠️ Do not short the alternator B+ terminal to ground (big power cable).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8" drive
• Torque wrench 1/2" drive
• Ratchet 3/8" drive
• Socket set (8mm-19mm)
• 10mm socket
• 13mm socket
• 15mm socket
• E-Torx socket set (E10-E14)
• Serpentine belt tool (specialty)
• Wrench set (10mm-19mm)
• Flat trim tool
• Flathead screwdriver
• Pliers
• Fender cover
• Work light
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on a level surface, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and install a fender cover to protect paint.
• Save a photo of the belt routing sticker (or draw a quick sketch). This prevents belt-routing mistakes.
• If you will raise the car, slightly loosen the front-right wheel lug nuts using a breaker bar 1/2" before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp and remove it from the battery post.
• Move the cable aside so it cannot spring back and touch the post.

Step 2: Raise and secure the front-right corner (for access)

• Use a floor jack (rated 3-ton minimum) at the proper front jacking point and lift the car.
• Set the car down onto jack stands (rated 3-ton minimum).
• Remove the front-right wheel using the correct socket set (8mm-19mm).

Step 3: Remove the splash shield (if equipped)

• Remove shield fasteners using a flat trim tool and/or socket set (8mm-19mm).
• Set all clips/screws aside in a small tray so they don’t get lost.

Step 4: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded arm that keeps the belt tight).
• Use a serpentine belt tool (specialty) or 15mm socket with a breaker bar 1/2" to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner back.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab using a flathead screwdriver (gentle—don’t break the plastic).
• Remove the protective cap over the main power stud (B+).
• Use a 13mm socket to remove the nut and lift the power cable off the stud.
• Apply a small amount of dielectric grease to the connector seal during reassembly (a moisture barrier).

Step 6: Unbolt the alternator

• Support the alternator with one hand as you remove the bolts.
• Remove alternator mounting bolts using an E-Torx socket set (E10-E14) and/or socket set (8mm-19mm) (fastener head style varies by production).
• Once bolts are out, wiggle the alternator free from the bracket. Small rocking motions help.
• Torque note: Reinstall and torque all alternator mounting bolts and the B+ terminal nut to OEM specification using a torque wrench.

Step 7: Remove the alternator from the vehicle

• Maneuver the alternator out through the lower wheel-well area.
• If it hangs up, check for a missed harness clip and release it with pliers or a flat trim tool.

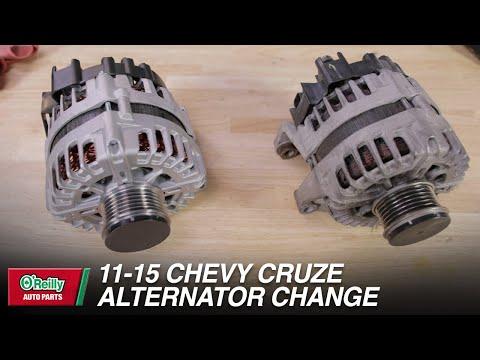

Step 8: Install the new alternator

• Position the new alternator into the bracket the same way the old one came out.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten mounting bolts with the correct E-Torx socket / socket, then Torque to OEM specification using a torque wrench.

Step 9: Reconnect alternator wiring

• Install the main power cable onto the alternator stud and tighten the nut using a 13mm socket.
• Torque the B+ terminal nut to OEM specification using a torque wrench (do not overtighten; the stud can break).
• Reinstall the protective cap over the power stud.
• Plug in the alternator electrical connector until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram (or your photo).
• Use the serpentine belt tool (specialty) or 15mm socket with a breaker bar 1/2" to rotate the tensioner and slip the belt onto the last pulley.
• Double-check the belt ribs are seated in every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the splash shield using the flat trim tool and socket set (8mm-19mm).
• Reinstall the wheel and snug lug nuts using a socket set (8mm-19mm).
• Lower the car from the jack stands using the floor jack.
• Torque the wheel lug nuts to OEM specification using a torque wrench 1/2" drive.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal and tighten using a 10mm socket.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping. Shut off immediately if the belt looks misrouted.
• Use a multimeter at the battery: engine running should typically show about 13.8–14.7 volts.
• Turn on headlights and rear defrost; voltage should remain stable (not dropping into the low 12s).
• Take a short test drive and recheck for any burning smell, loose wiring, or warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $200-$450 (parts only)

You Save: $350-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
