Assumption: This applies to your GTI with the 2.0L turbo engine and manual transmission.

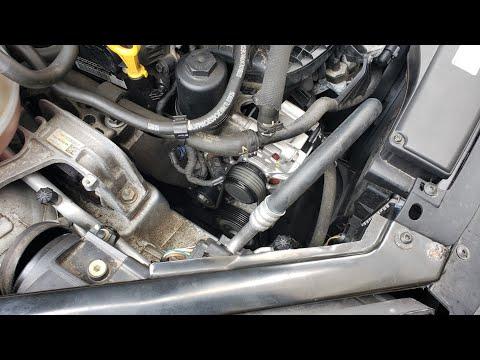

🔧 Alternator - Replacement

The alternator charges the battery and powers the electrical system while the engine runs. If it is failing, you may see a battery warning light, dim lights, or low-voltage faults. This job requires removing the serpentine belt and working in a tight front-engine bay.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The battery is in the rear cargo area on this GTI.
• Do not work near the belt or pulleys with the engine running.
• Let the engine cool before touching the alternator or nearby components.
• Support the front of the vehicle securely if you access the lower splash shield.
• Keep fingers clear of the belt path.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 13mm socket
• 16mm wrench
• Torx T25 screwdriver
• Torx T30 screwdriver
• Ratchet
• Breaker bar
• Serpentine belt tool (specialty)
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the wheels.
• Open the rear hatch and disconnect the negative battery terminal first.
• If equipped with a battery cover or floor panel, remove it to access the battery.
• Label connectors before unplugging them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal.
• Remove the negative cable and secure it so it cannot touch the battery post.
• This protects the charging circuit from accidental short circuits.

Step 2: Remove the engine cover and intake ducting

• Lift off the engine cover by hand.
• Use a Torx T25 screwdriver or Torx T30 screwdriver to remove the intake duct fasteners if equipped.
• Remove the intake ducting as needed to create access to the alternator area.

Step 3: Remove the lower splash shield

• Raise the front of the vehicle with a floor jack (rated 3-ton minimum) and support it with jack stands.
• Use a Torx T25 screwdriver or Torx T30 screwdriver to remove the lower shield fasteners.
• Set the splash shield aside.

Step 4: Release belt tension

• Use a serpentine belt tool (specialty) or a 16mm wrench on the tensioner to relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the serpentine belt from the engine bay.

Step 5: Disconnect the alternator wiring

• Use a 10mm wrench to remove the main charging cable nut from the alternator.
• Unplug the smaller electrical connector by pressing the lock tab and pulling it straight off.
• Move the harness aside carefully.

Step 6: Remove the alternator

• Use a 13mm socket with a ratchet to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out of the engine bay.
• Torque on install: Tighten alternator mounting bolts to factory specification.

Step 7: Install the new alternator

• Position the new alternator in the bracket.
• Install the mounting bolts by hand first using a 13mm socket.
• Reconnect the electrical connector and charging cable.
• Torque on install: Tighten the main cable nut to factory specification.
• Torque on install: Tighten all alternator mounting bolts to factory specification.

Step 8: Reinstall the serpentine belt

• Route the belt exactly as it was before removal.
• Use the serpentine belt tool (specialty) or 16mm wrench to release the tensioner again.
• Slip the belt over the alternator pulley last.
• Make sure the belt sits centered in every pulley groove.

Step 9: Reassemble the intake and splash shield

• Reinstall the lower splash shield using a Torx T25 screwdriver or Torx T30 screwdriver.
• Reinstall any removed intake ducting and the engine cover.
• Lower the vehicle from the jack stands.

Step 10: Reconnect the battery and test

• Reconnect the negative battery cable with a 10mm wrench.
• Start the engine and watch the belt for smooth operation.
• Check for charging warnings on the dash.
• Listen for belt squeal or pulley noise.

---

✅ After Repair

• Verify the battery warning light is off.
• Check charging voltage with a multimeter if available.
• Inspect the belt path again after a short test drive.
• If any warning lights remain, scan for charging-system faults.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $450-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
