🔧 GLA - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your GLA, replacement involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and unbolting the alternator from its bracket.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: stock accessory drive layout; torque values are common Mercedes specs—use factory data if available.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the alternator wiring (the main power cable is always “hot”).
• ⚠️ Let the engine cool fully; the turbo/engine bay gets very hot.
• ⚠️ Support the vehicle on jack stands before working underneath.
• ⚠️ Keep fingers clear of the belt tensioner; it’s spring-loaded (it snaps back hard).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Torque wrench (10-200 Nm range)
• 1/4" ratchet
• 3/8" ratchet
• 3/8" breaker bar
• 3/8" extension set
• E10 external Torx socket
• E12 external Torx socket
• E14 external Torx socket
• 8mm socket
• 10mm socket
• 13mm socket
• 17mm socket
• Flat trim tool
• Small flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and remove the key from the vehicle.
• Open the rear cargo area and access the battery compartment.
• Take a quick photo of the belt routing before removal; this helps a lot on reinstall.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp and remove it from the battery post.
• Move the cable aside so it can’t spring back and touch the terminal.
• “Negative off first” prevents accidental shorting.

Step 2: Remove the engine cover and intake ducting (as needed for access)

• Pull up firmly on the engine cover to release the rubber grommets.
• Use a flat trim tool to help lift edges if it’s stuck.
• If an intake tube/air duct blocks access, loosen clamps using an 8mm socket and move the duct aside.

Step 3: Raise the front and remove the lower splash shield

• Chock the rear wheels with wheel chocks.
• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the undertray fasteners using an 8mm socket and a flat trim tool for any clips.

Step 4: Remove the serpentine belt

• Locate the belt tensioner (spring-loaded arm that keeps the belt tight).
• Place a 17mm socket on the tensioner hex and rotate to relieve belt tension.
• While holding tension, slide the belt off an easy pulley, then slowly release the tensioner.
• Remove the belt fully and keep your routing photo handy.

Step 5: Unplug the alternator wiring

• Unplug the small alternator connector by releasing the lock tab with a small flathead screwdriver, then pulling the connector straight off.
• Remove the rubber boot on the main power stud.
• Use a 13mm socket to remove the main power cable nut, then lift the cable off the stud.
• Torque on install: 10 Nm (89 in-lbs)

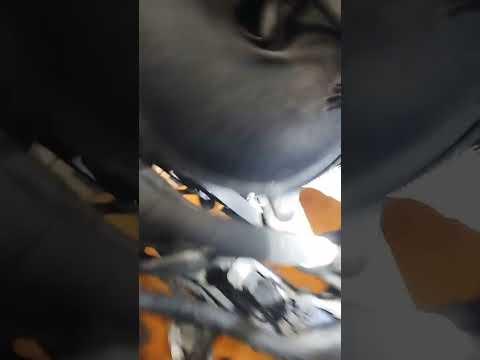

Step 6: Unbolt and remove the alternator

• Support the alternator with one hand while removing bolts.
• Remove alternator mounting bolts using an E12 external Torx socket and/or E14 external Torx socket (varies by bolt position).
• Work the alternator out of the bracket and remove it from the engine bay (top or bottom path depends on clearance).
• Torque on install: 45 Nm (33 ft-lbs) for main mounting bolts

Step 7: Install the new alternator

• Set the new alternator into position and hand-thread the mounting bolts to avoid cross-threading.
• Tighten bolts with an E12 external Torx socket/E14 external Torx socket, then finish with a torque wrench (10-200 Nm range).
• Torque to 45 Nm (33 ft-lbs)

Step 8: Reconnect alternator wiring

• Install the main power cable onto the stud and tighten using a 13mm socket.
• Torque to 10 Nm (89 in-lbs), then reinstall the rubber boot.
• Plug in the regulator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt exactly like your photo (make sure ribs sit fully in ribbed pulleys).
• Rotate the tensioner again using a 17mm socket, slip the belt onto the last pulley, then slowly release the tensioner.
• If the belt looks “one groove off,” stop and reseat.

Step 10: Reinstall undertray and engine cover

• Reinstall the splash shield fasteners using an 8mm socket and any clips with a flat trim tool.
• Lower the vehicle safely (remove jack stands, then lower with the floor jack).
• Press the engine cover back onto its grommets until it snaps into place.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 6 Nm (53 in-lbs)

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly with no wobble or squeal.
• Check that the battery/charging warning light is off on the dash.
• If you have a multimeter, check charging voltage at the battery with engine running: roughly 13.5-14.7V.
• Recheck the alternator main power nut area for any looseness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,300 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $500-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
