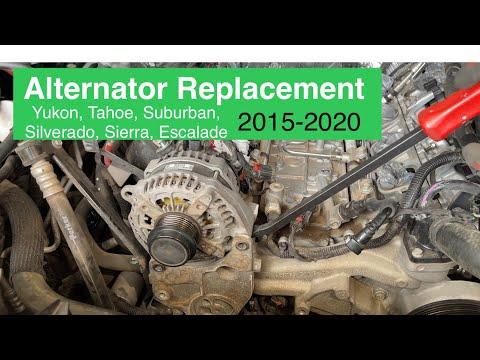

🔧 Tahoe - Alternator Replacement

Your Tahoe’s alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves removing the serpentine belt, disconnecting the alternator wiring, swapping the unit, and reinstalling everything with the correct belt routing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Keep tools away from the positive cable and alternator B+ stud.
• ⚠️ Let the engine cool; you’ll work near hot components.
• ⚠️ Do not pry on the alternator pulley or belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Work light
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool, 3/8" drive (specialty)
• Torque wrench (10–100 Nm range)
• Flat screwdriver
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (correct amperage for Tahoe) - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is cracked/glazed)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the engine is cool to the touch.
• Take a quick photo of the belt routing diagram on the radiator support (or draw it) before removing the belt.
• If your Tahoe has a second (aux) battery, disconnect the negative cable on both batteries.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp and remove it from the battery post.
• Tip: Tuck the cable aside so it can’t spring back.

Step 2: Remove the engine cover and intake ducting (if equipped)

• Lift off the engine cover by pulling upward evenly by hand.
• Use a flat screwdriver to loosen intake hose clamps as needed.
• Use a trim clip removal tool to remove any push clips holding the intake duct/air tube resonator, then remove the duct for access.

Step 3: Release tension and remove the belt from the alternator pulley

• Install the serpentine belt tool, 3/8" drive (specialty) (or a 3/8" drive ratchet) into the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest (don’t let it snap).

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the lock tab and pulling it straight off (no twisting).
• Remove the rubber protective boot from the alternator B+ terminal.
• Use a 13mm socket to remove the B+ terminal nut, then remove the cable from the stud.
• Torque on install: B+ terminal nut to 15 Nm (11 ft-lbs)
• Tip: Don’t drop the nut—stuff a rag underneath.

Step 5: Remove the alternator mounting bolts

• Use a 15mm socket with a 3/8" drive extension and 3/8" drive ratchet to remove the alternator mounting bolts.
• Support the alternator with your free hand as you remove the last bolt.

Step 6: Remove the alternator

• Lift the alternator out of the engine bay carefully, watching nearby hoses and wiring.
• If it feels stuck, rock it gently by hand—do not pry on the pulley.

Step 7: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Use a 15mm socket and 3/8" drive ratchet to snug the bolts evenly.
• Use a torque wrench (10–100 Nm range) to finish tightening.
• Torque: Alternator mounting bolts to 50 Nm (37 ft-lbs)

Step 8: Reconnect alternator wiring

• Apply a thin smear of dielectric grease to the alternator connector seal.
• Reinstall the B+ cable onto the alternator stud and tighten the nut using a 13mm socket.
• Torque: B+ terminal nut to 15 Nm (11 ft-lbs)
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator electrical connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram.
• Use the serpentine belt tool, 3/8" drive (specialty) to rotate the tensioner, then slip the belt back onto the alternator pulley.
• Release the tensioner slowly and confirm the belt is centered on every pulley.

Step 10: Reinstall intake ducting and engine cover

• Reinstall the intake ducting and any clips using the trim clip removal tool (as needed) and tighten clamps with a flat screwdriver.
• Push the engine cover back into place by hand until it seats.

Step 11: Reconnect the battery

• Reinstall the negative (-) battery cable and tighten using a 10mm socket.
• Torque: Battery terminal clamp to 15 Nm (11 ft-lbs)

---

✅ After Repair

• Start your Tahoe and listen for belt squeal; shut it off immediately if the belt is misrouted.
• With the engine idling, verify charging voltage is roughly 13.5–14.8V (a parts-store tester or multimeter can check this).
• Check that the battery warning light stays off.
• Recheck the belt tracking after a short test drive.

---
