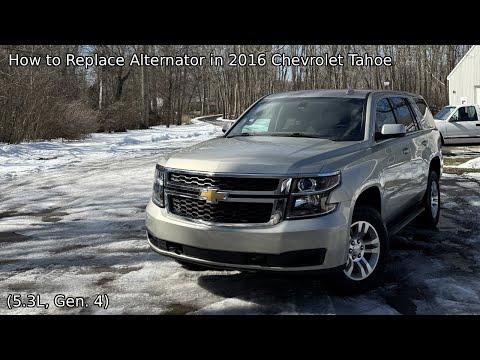

🔧 Tahoe - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt from the alternator pulley, swapping the alternator, and reinstalling everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Stock 5.3L engine bay (no aftermarket brackets).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring.
• ⚠️ Keep fingers and tools away from the belt path and pulleys.
• ⚠️ Let the engine cool so you don’t burn yourself on hot parts.
• ⚠️ Never short the alternator’s power stud to ground (it’s always “hot” if the battery is connected).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 15mm serpentine belt tool (specialty)
• Flat trim tool
• Torque wrench (10–100 Nm range)
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and remove any loose jewelry or metal watches.
• 🧰 Use a phone photo to capture the belt routing diagram (usually on the fan shroud) before removing the belt.
• 🧰 Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Pull up firmly on the cover to pop it off its rubber mounts (use your hands; use a flat trim tool only if it’s stubborn).
• Pull straight up to avoid cracking it.

Step 2: Create working room at the front of the engine

• If the air intake duct blocks access, loosen its clamps using a flat trim tool and/or remove fasteners with a 10mm socket, then move the duct aside.
• Use a work light so you can clearly see the belt, alternator pulley, and wiring.

Step 3: Release serpentine belt tension

• Install the 15mm serpentine belt tool (specialty) on the belt tensioner bolt head.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest. Do not let it snap back.
• Keep belt routed on other pulleys if reusing.

Step 4: Disconnect alternator electrical connectors

• Unplug the alternator electrical connector by pressing the lock tab and pulling straight out (use a flat trim tool gently if needed).
• Remove the protective boot from the main power stud.
• Use a 13mm socket to remove the nut from the alternator power stud, then lift the cable off and position it away from the stud.
• Torque spec (install): Torque to 15 Nm (11 ft-lbs)
• This cable carries charging current—keep it clean.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket with a 3/8" drive ratchet and extension to remove the alternator mounting bolts.
• Lift the alternator out of the bracket and out of the engine bay.
• It’s heavier than it looks—don’t drop it.

Step 6: Install the new alternator

• Set the new alternator into position on the bracket.
• Start the mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts using a 15mm socket.
• Torque spec: Torque to 50 Nm (37 ft-lbs)

Step 7: Reconnect alternator wiring

• Install the main power cable onto the alternator stud, then install the nut using a 13mm socket.
• Torque spec: Torque to 15 Nm (11 ft-lbs)
• Reinstall the protective boot over the stud.
• Plug in the alternator electrical connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram.
• Use the 15mm serpentine belt tool (specialty) to rotate the tensioner and slide the belt fully onto the alternator pulley.
• Release the tensioner slowly.
• Visually check that the belt is centered on every pulley groove.

Step 9: Reinstall removed covers/ducting and reconnect the battery

• Reinstall the intake duct (if removed) using a 10mm socket and ensure clamps are secure.
• Reinstall the engine cover by pressing it down onto its mounts.
• Reconnect the negative battery cable using a 10mm socket and snug it firmly.

---

✅ After Repair

• ✅ Start the engine and confirm the belt runs smoothly with no wobble or squeal.
• ✅ Check charging voltage at the battery with the engine running (typical is about 13.8–14.8V).
• ✅ Make sure the battery/charging warning light stays off.
• ✅ Recheck for loose tools, and verify the power-stud boot is installed.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
