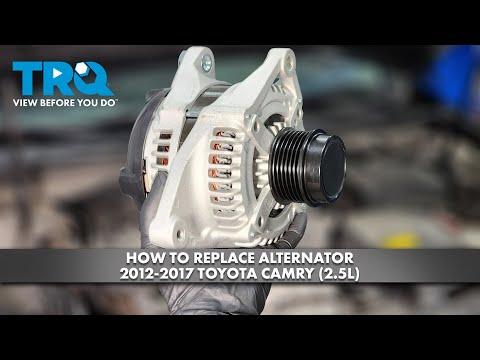

🔧 Alternator - Replacement

The alternator on your Camry charges the battery and powers the electrical system while the engine runs. If it’s failing, you may see a battery light, dim lights, or a dead battery even after charging.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This helps prevent short circuits.
• The alternator area includes the serpentine belt and pulleys. Keep fingers, tools, and clothing clear.
• Let the engine cool before working near the front of the engine.
• Use jack stands if you raise the car. Never rely on a jack alone.
• Keep the key far from the car.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Serpentine belt tool (specialty)
• Flathead screwdriver
• Trim clip removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key.
• Disconnect the negative battery terminal with a 10mm socket.
• If the belt is cracked, glazed, or noisy, replace it now.
• Take a belt routing photo first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Remove the engine cover and intake ducting

• Remove the engine cover by lifting it straight up.
• Use a flathead screwdriver and 10mm socket to loosen any intake duct clamps or fasteners blocking access.
• Remove the ducting as needed for alternator access.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (specialty) or breaker bar on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the alternator pulley first, then remove it from the other pulleys.
• Check the belt route before removal.

Step 4: Disconnect alternator wiring

• Use a 10mm socket to remove the protective cap and main power cable nut from the alternator.
• Unplug the alternator electrical connector by pressing the lock tab and pulling straight out.

Step 5: Remove the alternator

• Use a 14mm socket to remove the upper and lower alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out of the engine bay carefully.

Step 6: Install the new alternator

• Position the new alternator in place.
• Install the mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket to tighten the bolts.
• Torque to 39 Nm (29 ft-lbs).

Step 7: Reconnect alternator wiring

• Reconnect the electrical connector until it clicks.
• Reinstall the main power cable and nut with a 10mm socket.
• Torque to 9 Nm (80 in-lbs).
• Reinstall the protective cap.

Step 8: Reinstall the serpentine belt

• Route the belt exactly as it was before removal.
• Use the serpentine belt tool (specialty) or breaker bar to rotate the tensioner.
• Slip the belt onto the alternator pulley last.
• Make sure every rib is seated fully in every pulley groove.

Step 9: Reinstall intake parts and engine cover

• Reinstall any intake ducts and tighten clamps with a flathead screwdriver or 10mm socket.
• Push the engine cover back into place.

Step 10: Reconnect battery and test

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and watch for warning lights.
• Use a multimeter if available. Charging voltage should be about 13.5-14.7 volts with the engine running.

---

✅ After Repair

• Listen for belt squeal, grinding, or clicking.
• Check that the battery light is off.
• Verify all accessories work normally, including headlights and blower motor.
• Inspect the belt after a short test drive to confirm proper tracking.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
