🔧 Juke - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it on your Juke mainly involves disconnecting the battery, removing the drive belt, unplugging the alternator wiring, then swapping the unit and reinstalling everything correctly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable first to prevent a short (the alternator’s main wire is always “hot” if the battery is connected).
• 🔥 Let the engine cool completely; the turbo/exhaust area can burn you.
• 🧰 Support the vehicle safely if you raise it—use jack stands, not just a jack.
• 👀 Keep fingers clear of the belt/tensioner; the spring-loaded tensioner snaps back hard.
• 🔌 Do not pry on electrical connectors; press the lock tab before pulling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm wrench
• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 ft-lbs range)
• 3/8" extension set (3" and 6")
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Shop light
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to neutral, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🔋 Open the hood and be ready to disconnect the battery.
• 📝 Assumption: steps below match the 1.6L turbo layout used on your Juke; hardware access can vary slightly with skid plates/aftermarket intakes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal and remove it from the battery post.
• Tuck the cable aside so it can’t spring back onto the terminal.

Step 2: Create working space

• Install a fender cover to protect paint.
• Use an 8mm socket, 10mm socket, and trim clip removal tool to remove any upper air ducting/intake snorkel pieces that block access.
• Take a quick photo before removal.

Step 3: Raise the front (if needed for access)

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jack point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• If an undertray is installed, remove it using a 10mm socket, flat-blade screwdriver, and trim clip removal tool.

Step 4: Remove tension from the serpentine belt

• Locate the belt tensioner (spring-loaded arm that keeps the belt tight).
• Use a serpentine belt tool (specialty) with the correct socket end (commonly 14mm socket) to rotate the tensioner and relieve belt tension.
• Slide the belt off the alternator pulley, then slowly let the tensioner return.
• Slowly release the tensioner—don’t snap it back.

Step 5: Disconnect alternator electrical connections

• On the back of the alternator, remove the protective cap from the main power (B+) stud.
• Use a 10mm socket to remove the nut and lift off the main power cable.
• Unplug the alternator connector by pressing the lock tab (use needle-nose pliers only if needed, gently).
• Spray light electrical contact cleaner if the connector is dirty or oily.

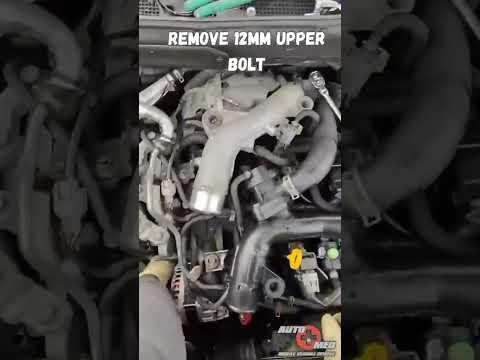

Step 6: Unbolt the alternator

• Support the alternator by hand as you remove bolts so it doesn’t drop.
• Use a 12mm socket and 14mm socket with a 3/8" ratchet and extension set (3" and 6") to remove the alternator mounting bolts.
• Remove the alternator from the bracket area. If it’s stuck, gently wiggle it free—do not pry against aluminum parts with force.

Step 7: Install the new alternator

• Set the new alternator into position by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Use a 3/8" torque wrench (10–100 ft-lbs range) to tighten fasteners: Torque to 45–55 Nm (33–41 ft-lbs) for typical alternator mounting bolts.
• If a bolt feels wrong, stop and re-thread.

Step 8: Reconnect alternator wiring

• Reconnect the alternator plug until it clicks.
• Install the main power cable onto the B+ stud and start the nut by hand.
• Use a 10mm socket to tighten the nut: Torque to 7–10 Nm (62–89 in-lbs).
• Reinstall the protective cap over the B+ stud.

Step 9: Reinstall the serpentine belt

• Route the belt exactly like it was before (use your photo).
• Use the serpentine belt tool (specialty) and 14mm socket to rotate the tensioner and slip the belt onto the alternator pulley.
• Visually confirm the belt ribs sit fully in every pulley groove.

Step 10: Reinstall removed covers/undertray and reconnect battery

• Reinstall any undertray/ducting using the 10mm socket, 8mm socket, and trim clip removal tool.
• Lower the vehicle safely if it was raised.
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• 🔎 Start the engine and confirm there are no squeals (belt misalignment usually squeals).
• ⚡ If you have a multimeter, check charging voltage at the battery with the engine idling: typically ~13.5–14.8V.
• 👂 Turn on headlights and blower fan; confirm voltage stays stable and no warning lights return.
• 🧼 Recheck the alternator electrical stud cap is installed and secure.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
