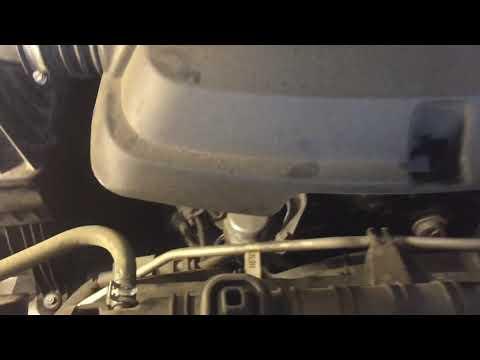

🔧 Canyon - Alternator Replacement

The alternator charges the battery and powers your Canyon’s electrical system while the engine runs. Replacing it involves removing the serpentine belt, unplugging the alternator wiring, unbolting the unit, then reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring (the main alternator wire is always “hot” if the battery is connected).
• ⚠️ Let the engine cool fully; you’ll be working near hot parts and the belt drive.
• ⚠️ Support the truck with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Keep fingers/tools clear of the belt and pulleys.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Socket set metric 8mm-18mm
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet 3/8" drive
• Serpentine belt tool 3/8" drive (specialty)
• Torque wrench 3/8" drive
• Flat trim tool
• Small flat screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and remove the key from the vehicle.
• Disconnect the negative battery cable using a 10mm socket, then isolate it so it can’t spring back to the terminal.
• Tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and air intake duct (if equipped)

• Lift off the engine cover (it typically pulls up from rubber grommets); use a flat trim tool if it’s stuck.
• Loosen intake duct clamps with the appropriate socket or small flat screwdriver, then move the duct out of the way for access.

Step 2: Relieve serpentine belt tension

• Fit the serpentine belt tool 3/8" drive (specialty) into the belt tensioner. (A serpentine belt tool is a long-handled lever that makes it easier to rotate the spring-loaded tensioner.)
• Rotate the tensioner to release tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to its rest position.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator’s electrical connector by releasing the lock tab with a small flat screwdriver (if needed) and pulling straight out.
• Remove the protective boot from the alternator main power stud.
• Remove the main power cable nut using a 13mm socket, then lift the cable off the stud and position it aside.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Remove the alternator mounting bolts using the correct socket and a ratchet 3/8" drive (commonly 15mm socket on GM trucks, but use the size that fits your bolts).
• Remove the alternator from the bracket and lift it out.

Step 5: Install the new alternator

• Set the new alternator into position on the bracket.
• Hand-thread all mounting bolts first to avoid cross-threading.
• Tighten mounting bolts evenly using a ratchet 3/8" drive.
• Final-tighten with a torque wrench 3/8" drive: Torque to OEM specification for alternator mounting bolts.

Step 6: Reconnect alternator wiring

• Install the main power cable onto the alternator stud and start the nut by hand.
• Tighten the nut with a 13mm socket, then final-tighten with a torque wrench 3/8" drive: Torque to OEM specification for alternator B+ terminal nut.
• Reinstall the protective boot over the power stud.
• Plug in the alternator connector until it clicks/locks.

Step 7: Reinstall the serpentine belt

• Route the belt according to the under-hood belt diagram (or the photo you took).
• Use the serpentine belt tool 3/8" drive (specialty) to rotate the tensioner, slip the belt fully onto the alternator pulley, then slowly release the tensioner.
• Visually check the belt is centered on every pulley groove using a flashlight.

Step 8: Reinstall intake duct and engine cover

• Reinstall the intake duct and tighten clamps with the appropriate socket or small flat screwdriver.
• Press the engine cover back onto its grommets.

Step 9: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Snug the terminal: Torque to OEM specification for battery terminal.

---

✅ After Repair

• Start the engine and listen for belt squeal or rubbing; shut off immediately if you hear it.
• With the engine idling, check charging voltage at the battery with a meter if available; a healthy system is typically around 13.5-14.8V.
• Confirm the battery/charging warning light stays off on the dash.
• Recheck belt alignment after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
