🔧 CX-5 - Alternator Replacement

The alternator charges your battery and powers your CX-5’s electrical system while the engine runs. Replacing it involves removing the drive belt, unplugging the alternator wiring, and swapping the unit, then reinstalling everything and confirming the charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Let the engine cool completely; the exhaust and radiator area can burn you.
• ⚠️ Keep tools away from the alternator’s main power stud (B+); it’s direct battery power.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• Socket set (8mm, 10mm, 12mm, 14mm, 17mm)
• 6" extension (3/8" drive)
• Serpentine belt tool or long 3/8" breaker bar (specialty)
• Flat trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Intake duct clamps (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Open the hood and keep the key away from the vehicle.
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then isolate it so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake ducting

• Pull up on the engine cover to release it (it’s held by rubber grommets).
• Use a flathead screwdriver to loosen the intake hose clamps.
• Use needle-nose pliers to release any spring clamps on small breather hoses, then slide hoses off.
• Lift out the intake duct/air snorkel for working room.

Step 2: Relieve tension and remove the serpentine belt

• Find the belt tensioner (spring-loaded). This is the pulley arm that keeps the belt tight.
• Use a 17mm socket with a serpentine belt tool or long 3/8" breaker bar (specialty) to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then remove the belt from the rest of the pulleys.
• If reusing the belt, mark its rotation direction.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab and pulling straight back (use a flathead screwdriver gently if it’s stuck).
• Remove the rubber boot covering the main power stud (B+).
• Use a 12mm socket to remove the B+ nut and cable from the alternator.
• Torque to 9–12 Nm (7–9 ft-lbs) when reinstalling the B+ nut.

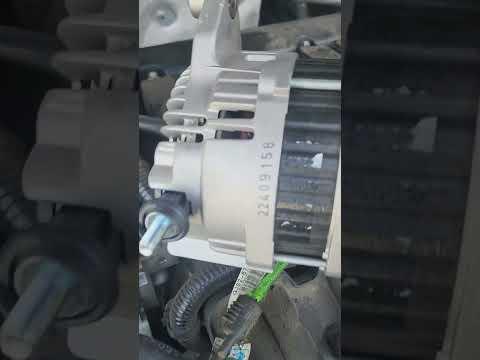

Step 4: Unbolt and remove the alternator

• Locate the alternator mounting bolts (typically upper and lower).
• Use a 14mm socket with a 6" extension (3/8" drive) to remove the alternator mounting bolts.
• Wiggle the alternator free and lift it out from the top (you may need to slightly reposition hoses/ducts by hand for clearance).
• Torque to 38–52 Nm (28–38 ft-lbs) when reinstalling the alternator mounting bolts.

Step 5: Install the new alternator

• Set the new alternator into position and hand-thread the mounting bolts (this prevents cross-threading).
• Use a 14mm socket to snug the bolts, then use a 3/8" drive torque wrench to finish: Torque to 38–52 Nm (28–38 ft-lbs).
• Reconnect the electrical plug until it clicks.
• Reinstall the B+ cable and nut using a 12mm socket: Torque to 9–12 Nm (7–9 ft-lbs), then refit the rubber boot.

Step 6: Reinstall the serpentine belt

• Route the belt around all pulleys following your photo (leave the alternator pulley for last).
• Use a 17mm socket with the serpentine belt tool or long 3/8" breaker bar (specialty) to rotate the tensioner again.
• Slip the belt onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt is seated fully in every pulley groove.

Step 7: Reinstall intake ducting and reconnect the battery

• Reinstall the intake duct/hoses and tighten clamps using a flathead screwdriver.
• Press the engine cover back onto its grommets.
• Reconnect the battery negative terminal using a 10mm socket: Torque to 5–7 Nm (44–62 in-lbs).

---

✅ After Repair

• Start the engine and confirm no belt squeal or slapping noises.
• Use a multimeter at the battery terminals: engine running should typically read about 13.5–14.8V.
• Turn on headlights and blower motor; verify voltage stays stable and the battery light stays off.
• Recheck the belt alignment after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹7,000–₹18,000 (parts only)

You Save: ₹5,000–₹10,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000–₹2,500/hour. This repair takes a shop approximately 1.5–3 hours.

---
