🔧 Optima - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Optima, replacement involves disconnecting the battery, removing the serpentine belt (drive belt), unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Let the engine cool; the turbo/nearby parts can be very hot.
• ⚠️ Support the car with jack stands if you go underneath—never rely on a jack.
• ⚠️ Keep tools away from the alternator B+ terminal (it’s direct battery power).
• ⚠️ Wear eye protection; dirt can fall from the splash shield area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8")
• Ratchet (1/2")
• Extension set (3/8")
• Serpentine belt tool (specialty)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• Flat trim clip tool
• Flathead screwdriver
• Torque wrench (10–100 Nm range)
• Digital multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and take a quick photo of the belt routing label (or draw a simple sketch).
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then position it so it can’t spring back.
• If you’ll work from below, chock the rear wheels, lift the front with a floor jack, and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove lower splash shield (if equipped)

• From underneath, use a flat trim clip tool and/or flathead screwdriver to remove the plastic clips.
• Use a 10mm socket to remove any small bolts, then lower the shield.
• Bag clips/bolts so nothing goes missing.

Step 2: Release serpentine belt tension

• Locate the belt tensioner (a spring-loaded arm that keeps the belt tight).
• Use a serpentine belt tool (specialty) or 17mm socket on the tensioner hex and rotate to relieve tension.
• While holding tension off, slip the belt off the alternator pulley first, then slowly release the tensioner.
• Release slowly—spring tension is strong.

Step 3: Unplug alternator electrical connections

• On the back of the alternator, remove the small plug: press the lock tab by hand, then pull straight out (use a flathead screwdriver gently if stuck).
• Remove the rubber boot covering the main power wire (B+).
• Use a 12mm socket to remove the B+ nut and lift the cable off the stud.
• Torque to 9–12 Nm (80–105 in-lbs) when reinstalling the B+ nut.

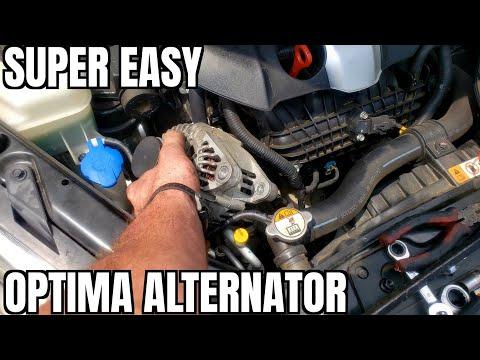

Step 4: Remove alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket with a 3/8" extension to remove the alternator mounting bolts.
• Lift the alternator out from the top or guide it out from underneath (whichever has more clearance on your Optima).

Step 5: Install the new alternator

• Compare the old and new alternator: same plug, same mounting ears, same pulley alignment.
• Position the new alternator in place and hand-thread the mounting bolts to avoid cross-threading.
• Tighten with a 14mm socket, then final tighten with a torque wrench to 45–55 Nm (33–41 ft-lbs).
• Start bolts by hand—no power tools.

Step 6: Reconnect alternator wiring

• Install the main B+ cable onto the stud and tighten with a 12mm socket to 9–12 Nm (80–105 in-lbs).
• Reinstall the rubber boot fully over the stud/nut.
• Plug in the alternator connector until it clicks.

Step 7: Reinstall serpentine belt

• Route the belt according to your photo/diagram, leaving the alternator pulley for last.
• Use the serpentine belt tool (specialty) or 17mm socket to rotate the tensioner, slip the belt onto the alternator pulley, then release the tensioner slowly.
• Visually confirm the belt is fully seated in every pulley groove (no “half-on” edges).

Step 8: Reinstall splash shield and lower the car

• Reinstall the shield using the 10mm socket and the clips using the flat trim clip tool.
• Raise slightly with the floor jack, remove jack stands, and lower the vehicle.

Step 9: Reconnect the battery

• Clean/secure the terminals if needed, then reconnect the negative terminal using a 10mm socket.
• Install battery terminal anti-corrosion pads if you’re using them.

---

✅ After Repair

• Start the engine and confirm the charging/ battery warning light turns off.
• Use a digital multimeter at the battery terminals:
  • Engine off: about 12.4–12.7V (healthy battery)
  • Engine running: about 13.5–14.8V (alternator charging)
• Listen for belt squeal and watch the belt for wobble (misrouting can cause this).
• Recheck the B+ boot is fully covering the terminal.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
