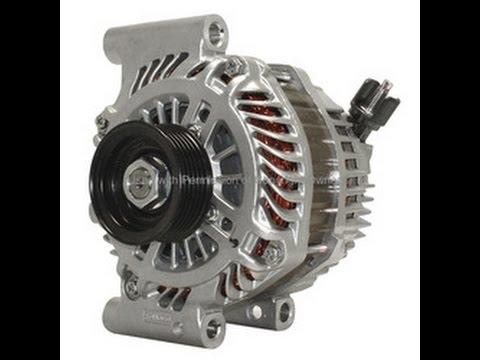

🔧 Fusion - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it means disconnecting the battery, removing the serpentine belt from the alternator pulley, unplugging the wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable before touching the alternator wiring (the main cable is always “hot”).
• 🛑 Let the engine cool; the radiator area and exhaust components can burn you.
• 🛑 Support the car with jack stands if you lift it—never rely on a floor jack alone.
• 🛑 Keep fingers and tools clear of the belt path when releasing the tensioner.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• 3/8" drive extension set
• Serpentine belt tool (specialty)
• Torque wrench (10–100 ft-lbs range)
• Flat-blade screwdriver
• Trim clip removal tool
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/noisy)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and remove the engine cover (if equipped) by pulling it upward with your hands.
• Plan your radio presets if you like—battery disconnect may reset some settings.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it cannot spring back to the post.
• Torque to 6 Nm (53 in-lbs) when reinstalling the clamp.
• Always remove negative first.

Step 2: Remove the air intake ducting (for access)

• Use an 8mm socket or flat-blade screwdriver to loosen the hose clamp(s) at the intake tube.
• Unclip/remove any push pins with a trim clip removal tool, then lift the intake tube/duct out of the way.

Step 3: Relieve belt tension and slip the belt off the alternator

• Place a 15mm socket on the belt tensioner bolt (use the serpentine belt tool (specialty) for extra leverage).
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly return the tensioner back to its resting position.
• Take a belt-routing photo first.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the tab and pulling straight back (use a flat-blade screwdriver gently if the tab is stubborn).
• Remove the protective rubber boot on the alternator B+ terminal.
• Use a 10mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Torque to 10 Nm (89 in-lbs) for the B+ terminal nut during reassembly.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 13mm socket with a ratchet and extensions to remove the alternator mounting bolts.
• Work the alternator out of the bracket and lift it out of the engine bay.
• Torque to 45 Nm (33 ft-lbs) for the alternator mounting bolts on installation.
• Wiggle—don’t pry on plastic.

Step 6: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to avoid cross-threading.
• Use a 13mm socket to snug the bolts evenly, then use a torque wrench: Torque to 45 Nm (33 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the stud and start the nut by hand.
• Use a 10mm socket and then a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo (make sure it sits fully in every pulley groove).
• Use a 15mm socket with the serpentine belt tool (specialty) to rotate the tensioner and slide the belt back onto the alternator pulley.
• Release the tensioner slowly and double-check belt alignment.

Step 9: Reinstall the intake ducting and reconnect the battery

• Reinstall the intake tube/duct and clips. Tighten the clamp(s) using an 8mm socket or flat-blade screwdriver.
• Reconnect the negative battery terminal using a 10mm socket and torque wrench: Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• Start the engine and verify the belt runs smoothly with no chirping or wobble.
• Use a digital multimeter at the battery terminals:
  • Engine off: typically ~12.4–12.7V for a healthy battery.
  • Engine running: typically ~13.5–14.8V charging voltage.
• Turn on headlights + blower motor and confirm voltage stays stable (not dropping into the 12V range).
• If the battery light stays on, re-check the alternator connector and B+ nut tightness.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹9,000-₹22,000 (parts only)

You Save: ₹9,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
