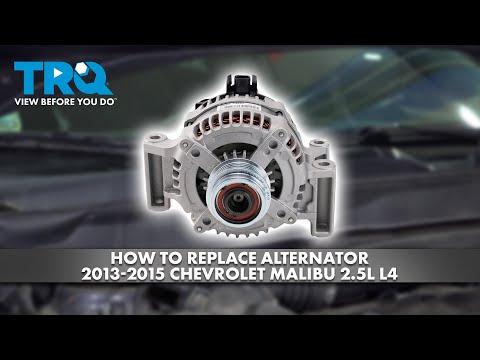

🔧 Malibu - Alternator Replacement

The alternator charges the battery and powers electrical systems while the engine runs. If it’s failing, you may see a battery light, dim lights, or a dead battery after driving. This job involves removing the serpentine belt (the single long belt that drives multiple engine accessories) and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ Keep hands/tools away from the belt path and pulleys.
• ⚠️ Work on a cool engine; the radiator and exhaust areas can burn you.
• ⚠️ Support the car with jack stands if you go underneath.
• ⚠️ Do not let the alternator B+ cable touch metal (it can short).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• Socket set (8mm, 10mm, 13mm, 15mm)
• Wrench set (10mm, 13mm, 15mm)
• Serpentine belt tool (specialty)
• Torque wrench (10–100 Nm range)
• Trim clip remover
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal boot (if damaged) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and remove any loose jewelry (rings can short circuits).
• 🧰 If you’ll access from below, chock the rear wheels and raise the front using a floor jack, then support with jack stands.
• 🧰 Take a quick photo of the belt routing before removal (or locate the belt routing decal under the hood).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (−) battery terminal clamp.
• Remove the negative cable and tuck it aside so it can’t spring back.
• When reinstalling later: Torque to 17 Nm (13 ft-lbs).

Step 2: Gain access to the belt/alternator area

• If needed for access, raise the front and support it using a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum).
• Remove the lower splash shield fasteners using a trim clip remover and 8mm socket (fasteners vary by shield).
• Keep fasteners grouped by location.

Step 3: Release the serpentine belt tension

• Put a serpentine belt tool (specialty) (or 3/8" breaker bar if your tensioner accepts it) on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the lock tab using a flathead screwdriver (gentle pressure).
• Remove the protective cap from the alternator B+ terminal (main power stud).
• Use a 13mm socket to remove the B+ terminal nut, then lift the cable off and move it aside.
• When reinstalling later: Torque to 15 Nm (11 ft-lbs).

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket and 3/8" ratchet to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay (you may need to rotate it to clear hoses/wiring).

Step 6: Install the new alternator

• Set the new alternator into position, aligning it with the mounting holes.
• Start the mounting bolts by hand to avoid cross-threading.
• Tighten using a 15mm socket and torque wrench: Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and thread the nut on by hand.
• Tighten using a 13mm socket and torque wrench: Torque to 15 Nm (11 ft-lbs).
• Reinstall the terminal protective cap.
• Plug the alternator connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Double-check the belt is seated in every pulley groove (look from above and below with a work light).

Step 9: Reinstall splash shield (if removed) and lower the car

• Reinstall the shield using the 8mm socket and clips using the trim clip remover.
• Lower the vehicle safely using the floor jack (rated 3-ton minimum).

Step 10: Reconnect the battery and verify charging

• Reconnect the negative battery cable using a 10mm socket.
• Tighten with a torque wrench: Torque to 17 Nm (13 ft-lbs).
• Start the engine and confirm the battery warning light is off.

---

✅ After Repair

• 🧪 With the engine running, check for belt wobble/noise and verify the belt tracks centered on the pulleys.
• 🧪 If you have a multimeter, you should typically see about 13.5–14.8V at the battery with the engine running (varies with load and temperature).
• 🧪 Test drive 10 minutes, then recheck that the belt is still seated correctly.
• 🧪 If the battery light stays on, stop and recheck the alternator connector and B+ nut.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
