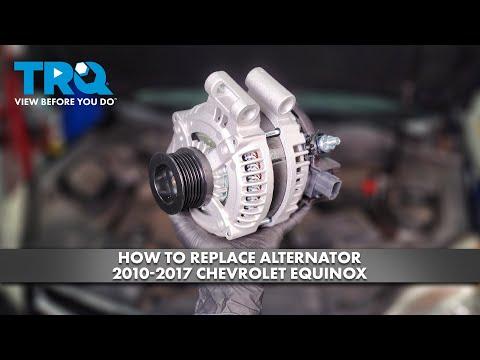

🔧 Equinox - Alternator Replacement

You’ll be removing the drive belt, then unbolting and swapping the alternator on your Equinox. The alternator charges the battery and powers the electrical system, so a failing unit can cause dim lights, warning lights, and hard starting.

Difficulty Level: Intermediate | Estimated Time: 2–4 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the battery negative cable before working on the alternator to prevent shorts and sparks.
• ⚠️ Let the engine cool completely; you will work near hot components and the radiator.
• ⚠️ Use jack stands if you need to raise the front of the vehicle—never rely on a jack alone.
• ⚠️ Keep metal tools away from the battery positive terminal once the alternator wiring is exposed.
• ⚠️ Wear safety glasses and gloves to protect your eyes and hands from slips and sharp edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (30–150 ft-lbs range)
• 🛠️ 10mm socket
• 🛠️ 13mm socket
• 🛠️ 15mm socket
• 🛠️ 18mm socket
• 🛠️ E8 external Torx socket
• 🛠️ 6" socket extension
• 🛠️ Serpentine belt tool or 3/8" breaker bar (specialty)
• 🛠️ Flat trim removal tool or flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Fender cover or old towel
• 🛠️ Work light
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (3.6L, correct for Equinox LT) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Alternator B+ terminal nut (13mm) or hardware kit - Qty: 1 (optional but recommended)
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Penetrating oil - Qty: 1 can
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the Equinox on level ground, set the parking brake, and shift to Park.
• Open the hood and support it with the hood prop rod.
• If you will raise the vehicle, loosen front wheel lug nuts slightly first, then jack it up and set it securely on jack stands.
• Disconnect the battery negative cable: use a 10mm socket to loosen the clamp and move the cable aside so it cannot spring back.
• Take a photo of the serpentine belt routing sticker under the hood (or draw a diagram) before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery clamp bolt.
• Lift the clamp off the negative battery post and tuck it away from the battery.
• Always remove negative cable first for safety.

Step 2: Remove engine cover and create workspace

• Pull up gently on the plastic engine cover; it snaps off rubber grommets. No tools needed.
• Set the cover aside where it won’t get stepped on.
• Cover the fender edge with a fender cover or old towel to protect paint.

Step 3: Remove the air intake duct (if blocking access)

• Locate the plastic air duct between the air filter box and the throttle body.
• Use a flat trim tool or flathead screwdriver to loosen the hose clamps on each end.
• Unclip any small hoses or connectors from the duct by hand or with needle-nose pliers.
• Lift the duct out and set aside. This opens access to the front of the engine.

Step 4: Relieve tension and remove the serpentine belt

• Find the belt tensioner pulley (spring-loaded pulley that keeps the belt tight).
• Insert the serpentine belt tool or 3/8" breaker bar into the square hole or bolt head on the tensioner.
• Rotate the tensioner to relieve belt tension (typically clockwise on this engine).
• While holding tension off, slide the belt off the alternator pulley with your other hand.
• Slowly release the tensioner back to its rest position.
• Remove the belt fully from all pulleys and note routing. Now is a good time to install a new belt.

Step 5: Disconnect alternator electrical connectors

• Locate the main alternator power wire (thick wire with rubber boot) on the back of the alternator.
• Pull back the rubber boot by hand to expose the nut.
• Use a 13mm socket and 3/8" ratchet to remove the nut holding the wire.
• Lift the wire off the stud and set it aside.
• Press the tab on the small alternator plug and pull the connector straight out by hand. If stuck, gently help with needle-nose pliers without crushing the plastic.
• Make sure the negative battery cable is still off before touching these.

Step 6: Remove alternator mounting bolts

• Locate the upper and lower alternator mounting bolts on the front of the alternator.
• Spray a bit of penetrating oil on the bolts and let it soak a few minutes if they look rusty.
• Use a 15mm socket, 6" extension, and 3/8" ratchet to remove the upper mounting bolt(s).
• Use the same tools to remove the lower mounting bolt(s). Support the alternator with one hand as you remove the last bolt so it doesn’t drop.
• If there is a small brace or bracket with an E8 external Torx bolt, remove that bolt using the E8 socket and 3/8" ratchet.
• Keep bolts organized; they may be different lengths.

Step 7: Remove the alternator from the vehicle

• Wiggle the alternator free from its mounting ears by hand. It may be snug in the bushings.
• If needed, gently pry with a flat trim tool at the mounting ears—do not pry on thin aluminum parts.
• Lift the alternator up and out of the engine bay. You may need to tilt and rotate it around hoses to clear.

Step 8: Prepare the new alternator

• Compare the old and new alternators side by side. Check:
• Connector shape and location.
• Mounting ear positions.
• Pulley type and diameter.
• Apply a very light coat of dielectric grease to the electrical connector seal (not on the metal pins).
• Clean the battery cable eyelet with a battery terminal cleaner or small wire brush so it’s shiny.

Step 9: Install the new alternator

• Lower the new alternator into position by hand, lining up the mounting ears with the bracket on the engine.
• Start the upper and lower 15mm bolts by hand a few turns to avoid cross-threading.
• Once all bolts are started, use the 15mm socket and 3/8" ratchet to snug them evenly.
• If there is a brace with an E8 bolt, install it now and snug it with the E8 socket.
• Use a 3/8" torque wrench and 15mm socket to tighten alternator mounting bolts to 50 Nm (37 ft-lbs).
• If equipped, torque the E8 brace bolt to 25 Nm (18 ft-lbs).

Step 10: Reconnect alternator wiring

• Install the small electrical plug onto the new alternator by hand until it clicks.
• Place the main battery cable eyelet over the alternator stud.
• Install the new or cleaned 13mm nut by hand, then tighten with a 13mm socket and 3/8" ratchet.
• Use a 3/8" torque wrench and 13mm socket to torque the nut to 15 Nm (11 ft-lbs).
• Slide the rubber boot back over the nut and stud to cover it.

Step 11: Install the new serpentine belt

• Route the belt according to your photo or the under-hood diagram.
• Make sure the belt sits in the grooves of every ribbed pulley.
• Use the serpentine belt tool or 3/8" breaker bar on the tensioner again, rotating it to relieve tension.
• While holding the tensioner, slide the belt over the last pulley (usually the alternator).
• Slowly release the tensioner so it takes up slack.
• Double-check belt alignment on every pulley before moving on. Misaligned belt will squeal and can jump off.

Step 12: Reinstall intake duct and engine cover

• Position the air intake duct back between the air box and throttle body.
• Slide each end fully onto its fitting.
• Use the flat tool or screwdriver to tighten the hose clamps snugly.
• Reconnect any hoses or clips that attach to the duct by hand.
• Line up the engine cover grommets with their pegs and press down by hand until it clicks in place.

Step 13: Reconnect the battery

• Place the negative battery clamp back on the negative battery post.
• Use a 10mm socket and 3/8" ratchet to snug the clamp bolt.
• Torque the clamp to about 7 Nm (62 in-lbs) with the 3/8" torque wrench if possible—firm but not crushing.
• Apply a thin film of dielectric grease on the terminals to reduce corrosion.

---

✅ After Repair

• Start the engine and listen for any belt squeal or unusual noises near the alternator. Shut off and re-check belt routing if you hear anything.
• With the engine running, check the battery/charging voltage using a multimeter if you have one. You should see around 13.8–14.5 volts at the battery terminals.
• Verify that the battery/charging system warning light on the dash turns off after starting.
• Take a short test drive with lights, A/C, and blower on to ensure the electrical system is stable (no dimming or flickering).
• After the drive, recheck belt tension and the alternator mounting bolts for security.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$950 (parts + labor)

DIY Cost: $250–$450 (parts only, depending on alternator brand and belt)

You Save: $400–$500 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
