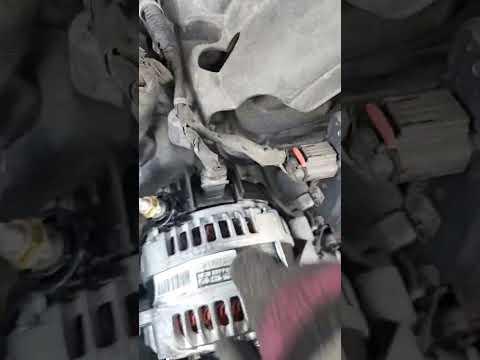

🔧 Alternator - Replacement

Replacing the alternator on your Silverado restores charging system output when the battery light is on, voltage is low, or the truck is struggling to keep the battery charged. This job requires removing the serpentine belt, disconnecting the battery, and swapping the alternator assembly with careful attention to wiring and belt routing.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The charging cable at the alternator is always hot.
• Keep hands, tools, and clothing clear of the belt and pulleys.
• Let the engine cool down before working near the front accessory drive.
• If your truck has the factory battery monitoring system, do not short any terminals.
• Wear safety glasses and gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Torque wrench
• Serpentine belt tool (specialty)
• Extensions
• Flat-blade trim tool
• Jack and jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Alternator belt, if cracked or glazed - Qty: 1
• Alternator mounting bolts, if damaged - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn ignition off and remove the key or fob from the vehicle.
• Disconnect the negative battery terminal with a 10mm socket.
• If equipped with a battery saver or accessory delay, wait a few minutes after key-off before disconnecting the battery.
• Label the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable from the battery.
• Isolate the cable so it cannot spring back and contact the post.

Step 2: Gain access to the belt drive

• Use a flat-blade trim tool to remove any splash shield or air inlet ducting that blocks access to the front of the engine.
• Set removed clips aside in order.

Step 3: Release the serpentine belt

• Use a serpentine belt tool (specialty) on the belt tensioner to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Take a quick photo of the belt routing.

Step 4: Disconnect the alternator wiring

• Use a 10mm socket to remove the nut holding the main charging cable at the alternator.
• Unplug the alternator electrical connector by pressing the lock tab and pulling it straight out.
• Move the cable aside so it cannot touch ground.

Step 5: Remove the alternator

• Use a 13mm socket or 15mm socket to remove the alternator mounting bolts, depending on the fastener size on your truck.
• Support the alternator with one hand as you remove the last bolt.
• Lift the alternator out from the engine bay.

Step 6: Install the new alternator

• Position the new alternator in place and start all mounting bolts by hand.
• Use a 13mm socket or 15mm socket to tighten the bolts evenly.
• Torque to 48 Nm (35 ft-lbs) for the alternator mounting bolts.

Step 7: Reconnect the alternator wiring

• Reconnect the electrical plug until it clicks.
• Install the main charging cable and tighten the nut with a 10mm socket.
• Torque to 13 Nm (115 in-lbs) for the charging cable nut.

Step 8: Reinstall the serpentine belt

• Use the serpentine belt tool (specialty) to rotate the tensioner again.
• Route the belt exactly as it was before removal and make sure it seats fully in every pulley groove.
• Slowly release the tensioner.

Step 9: Reassemble access parts

• Reinstall any splash shields or ducting using the flat-blade trim tool.
• Make sure all clips are fully seated.

Step 10: Reconnect power and test

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and check that the belt runs true and the battery warning light is off.
• Use a multimeter to verify charging voltage at the battery.

---

✅ After Repair

• Verify charging voltage is typically about 13.5-14.8 volts with the engine running.
• Check for belt squeal, wobble, or rubbing.
• Inspect the charging cable and connector for heat damage after a short test drive.
• If the battery was run low, charge it fully before judging the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $220-$500 (parts only)

You Save: $480-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
