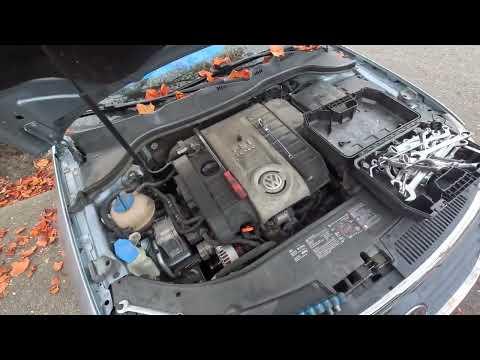

🔧 Alternator - Replacement

The alternator on your Passat charges the battery and powers the electrical system while the engine runs. Replacing it means removing the drive belt, gaining access to the unit, swapping it out, and then verifying charging voltage after reassembly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The alternator has constant battery power.
• Let the engine cool down first. You will be working near hot belts, pulleys, and exhaust parts.
• Use jack stands if you raise the vehicle. Never work under a car supported only by a jack.
• Keep hands, tools, and clothing clear of the belt path and pulleys.
• If equipped with a battery monitor or smart charging system, a voltage check after repair is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 13mm socket
• 15mm socket
• 16mm socket
• Ratchet
• Long breaker bar
• Torque wrench
• Serpentine belt tool (specialty)
• Trim removal tool
• Flat-blade screwdriver
• Jack stands
• Floor jack
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting hardware - Qty: 1 set
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and save radio presets if needed, since battery power will be disconnected.
• Disconnect the negative battery cable before touching the alternator wiring.
• If the serpentine belt shows cracks, glazing, or contamination, replace it now.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to disconnect the negative battery cable.
• Isolate the cable so it cannot touch the battery post.

Step 2: Remove upper engine cover and intake ducting

• Use a trim removal tool or flat-blade screwdriver to release any intake duct clips and covers blocking alternator access.
• Set the pieces aside in order so they go back correctly.

Step 3: Release serpentine belt tension

• Use a serpentine belt tool (specialty) or long breaker bar on the belt tensioner.
• Rotate the tensioner in the direction that unloads the belt, then slide the belt off the alternator pulley.
• Take a photo of the belt routing first.

Step 4: Remove the serpentine belt

• Use the serpentine belt tool (specialty) to fully release tension and remove the belt from the pulleys.
• If the belt is being replaced, pull it out completely.

Step 5: Disconnect alternator wiring

• Use a 10mm wrench to remove the main charging cable nut from the alternator.
• Unplug the smaller electrical connector by pressing the lock tab and pulling it straight off.
• Move the wiring aside so it will not snag during removal.

Step 6: Remove the alternator mounting bolts

• Use a 15mm socket and ratchet to remove the upper and lower alternator bolts.
• If the bolts are tight, use a breaker bar for extra leverage.
• Support the alternator with one hand while removing the last bolt.

Step 7: Remove the alternator

• Work the alternator out of the engine bay carefully using both hands.
• If clearance is tight, tilt and rotate it gently without forcing nearby hoses or wiring.

Step 8: Install the new alternator

• Set the new alternator in place and start all mounting bolts by hand.
• Use a 15mm socket and torque wrench to tighten the mounting bolts to 45 Nm (33 ft-lbs).

Step 9: Reconnect alternator wiring

• Install the main charging cable and tighten the nut with a 10mm wrench to 10 Nm (89 in-lbs).
• Push the electrical connector in until it clicks.

Step 10: Install the serpentine belt

• Route the new or reused belt exactly as it was before.
• Use the serpentine belt tool (specialty) to move the tensioner and slip the belt onto the final pulley.
• Check that the belt sits fully in every pulley groove.

Step 11: Reinstall intake parts and battery cable

• Reinstall any removed covers and intake ducting using the trim removal tool if needed.
• Reconnect the negative battery cable with a 10mm wrench.

---

✅ After Repair

• Start the engine and make sure the belt runs smoothly with no squeal.
• Check battery voltage at the terminals. You should see about 13.5-14.8 volts with the engine running.
• Look for warning lights on the dash, especially the battery or charging light.
• Inspect the alternator area for loose wiring or belt misalignment.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
