🔧 Rio - Alternator Replacement

You’ll remove the drive belt, unplug the alternator wiring, unbolt the alternator, and install the new one. The alternator charges the battery and powers the electrical system while the engine runs, so a weak alternator can cause dim lights, warning lamps, or a dead battery.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: This covers the common 1.6L layout with the alternator on the accessory belt side; torque specs are best-effort for this application.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.
• ⚠️ Support the car with jack stands if you go underneath; never rely on a jack.
• ⚠️ Keep fingers clear of the belt and pulleys; pinch hazard.
• ⚠️ Don’t allow the alternator main power wire to touch metal; it’s direct battery power.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs)
• Socket set: 10mm, 12mm, 14mm, 17mm
• Wrench set: 10mm, 12mm, 14mm, 17mm
• Serpentine belt tool or long 14mm box wrench (specialty)
• Flat trim clip tool
• Phillips screwdriver
• Pry bar (small)
• Flashlight
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended while you’re there)
• Belt tensioner assembly - Qty: 1 (optional if noisy/weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and note or photograph the belt routing. If there’s a belt-routing sticker, snap a clear photo.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.
• If you need lower access, raise the front with a floor jack and set it on jack stands.
• Serpentine belt: the single belt that drives accessories like the alternator.
• Belt tensioner: a spring-loaded arm that keeps belt tension automatically.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove any covers/air ducting blocking access

• Use a Phillips screwdriver and 10mm socket to remove the intake snorkel/upper ducting if it blocks the alternator area.
• If there’s a splash shield under the engine, remove clips with a flat trim clip tool and bolts with a 10mm socket.

Step 2: Release tension and remove the serpentine belt

• Place a 14mm wrench or serpentine belt tool on the belt tensioner hex.
• Rotate the tensioner to release belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return. Don’t let it snap back.
• If you’re reusing the belt, inspect for cracks/glazing; replace if worn.

Step 3: Unplug alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling it off by hand (use a small pry bar gently if stuck).
• Remove the rubber boot over the alternator power stud.
• Use a 12mm socket to remove the nut on the main power cable, then move the cable aside so it cannot touch metal.

Step 4: Unbolt the alternator

• Support the alternator with one hand as you remove bolts.
• Use a 14mm socket and ratchet to remove the alternator mounting bolts (typically an upper and a lower pivot bolt).
• If the alternator is stuck in the bracket, use a small pry bar to gently walk it free. Pry on the bracket, not the pulley.

Step 5: Remove the alternator from the engine bay

• Carefully maneuver the alternator out. A flashlight helps you avoid snagging hoses or wiring.

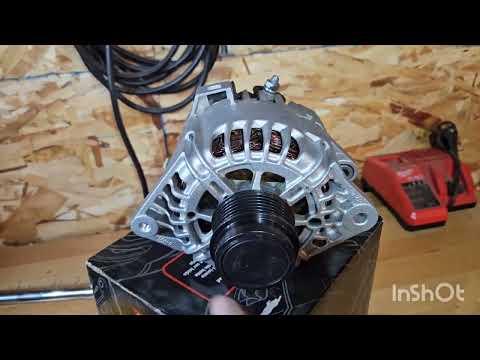

• Compare old vs new alternator: pulley alignment, electrical plug, and mounting ears should match.

Step 6: Install the new alternator

• Set the alternator into the bracket and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts with a 14mm socket, then torque with a torque wrench:
• Torque to 45–55 Nm (33–41 ft-lbs) for alternator mounting bolts.

Step 7: Reconnect alternator wiring

• Install the main power cable onto the stud and tighten the nut using a 12mm socket.
• Torque to 8–12 Nm (71–106 in-lbs) for the alternator B+ terminal nut.
• Reinstall the rubber boot over the power connection.
• Plug in the alternator connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo/sticker, leaving the alternator pulley for last if easiest.
• Use a 14mm wrench or serpentine belt tool to rotate the tensioner, slip the belt on, then release the tensioner slowly.
• Visually check the belt is seated in every pulley groove. One rib off will shred the belt.

Step 9: Reinstall removed covers/ducting

• Reinstall splash shield fasteners with a 10mm socket and clips with a flat trim clip tool.
• Reinstall intake ducting using a Phillips screwdriver and 10mm socket.

Step 10: Reconnect battery

• Reconnect the negative battery terminal using a 10mm socket.
• Snug it firmly (do not over-tighten small battery clamps).

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly with no squeal or wobble.
• Check charging voltage with a digital multimeter: at the battery posts, you should typically see about 13.5–14.7V with the engine idling.
• Confirm the battery/charging warning light is off.
• Recheck that the alternator power cable boot is installed and nothing is near the belt.
• Tip: Recheck belt seating after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
